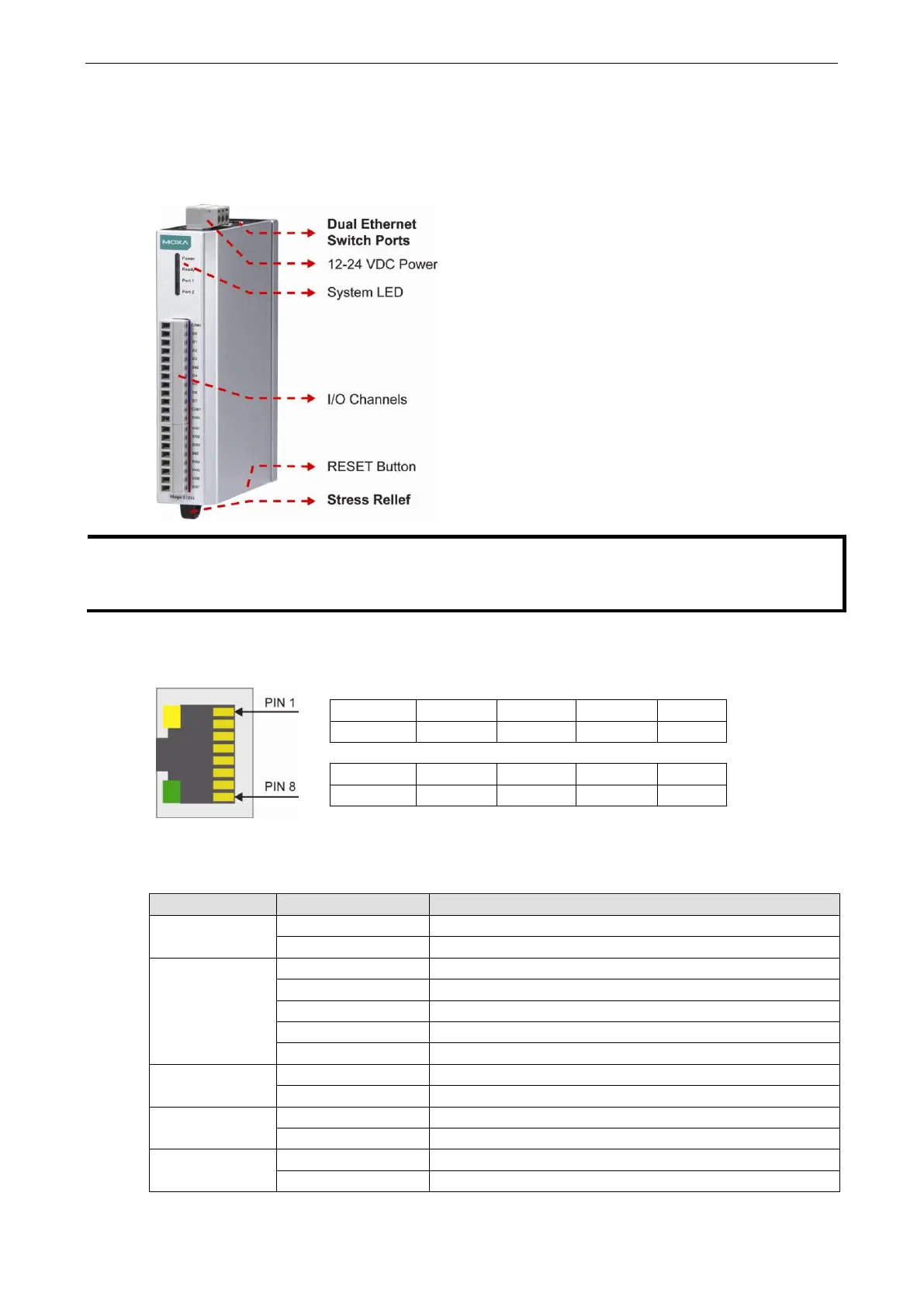

ioLogik E1200 Series Introduction
1-13
Hardware Reference
Panel Guide
NOTE
Ethernet Port
Pin
1
2
3
4
Signal
TXD+
TXD-
RXD+
---
Pin
5
6
7
8
Signal
---
RXD-
---
---
LED Indicators
LED
State
Description
Power
Amber
System power is ON
OFF
System power is OFF
Ready
Green
System is ready
Flashing
Flashes every 1 second when the “Locate” function is triggered
Flashing
Flashes every 0.5 second when the firmware is being upgraded
Flashing
ON/OFF cycle period of 0.5 second represents “Safe Mode”
OFF
System is not ready
Port 1
Green
Ethernet connection enabled
Flashing
Transmitting or receiving data
Port 2
Green
Ethernet connection enabled
Flashing
Transmitting or receiving data
EXT
Green
EXT field power input is connected
Off
EXT field power input is disconnected
