ioLogik E1200 Series Using the Web Console
3-12

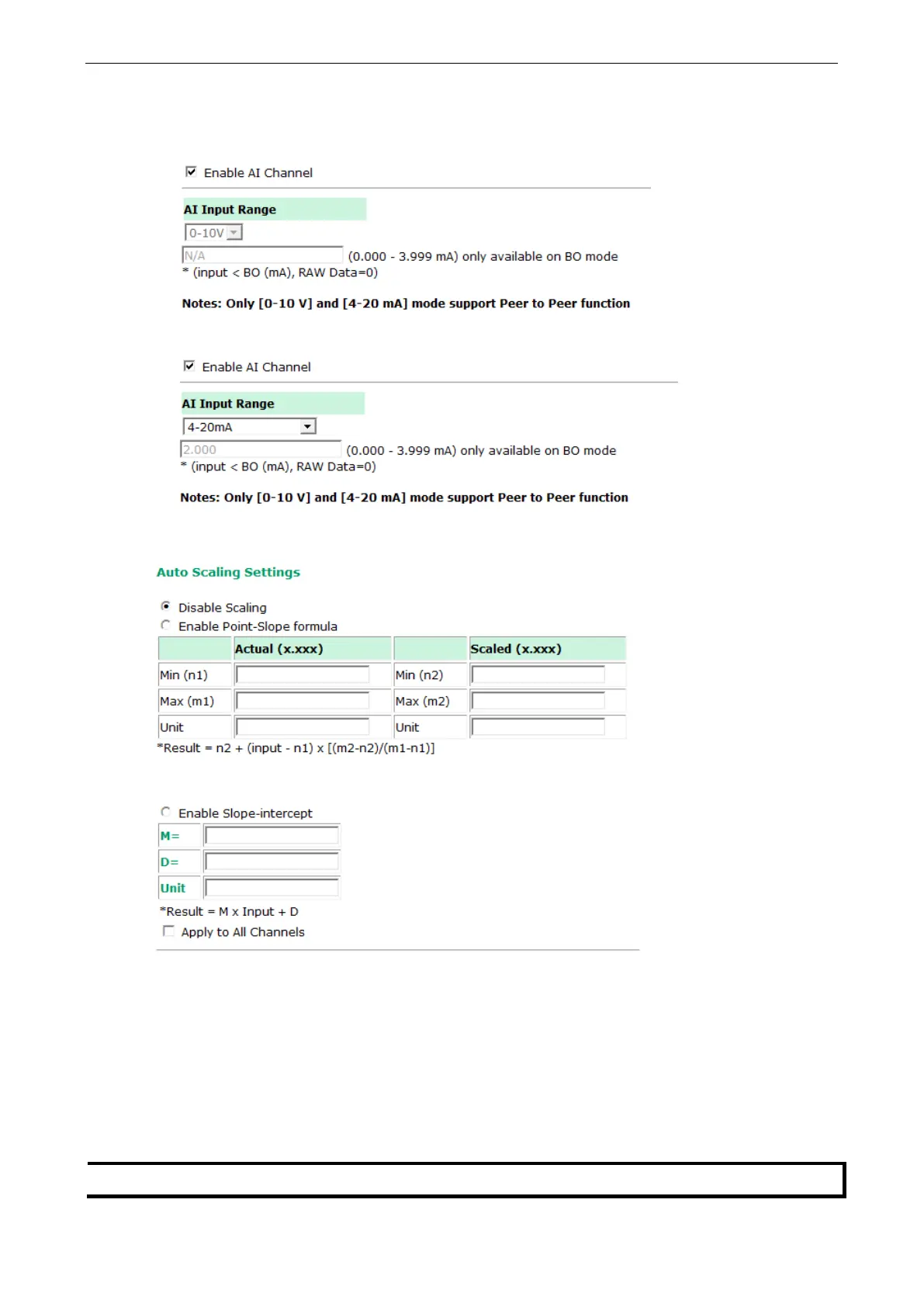

Click on a specific AI channel to enable or disable it by selecting the Enable AI Channel field. There are two
modes available for the AI channels:
1. Voltage Mode (See the Jumper Settings (DIO and AI) in Chapter 2 for more details)
2. Current Mode (See the Jumper Settings (DIO and AI) in Chapter 2 for more details)
Auto Scaling and Slope-intercept functions of the AI value can be defined on this page.
AI Input Range
Set the AI input ranges for each mode, as follows:
1. Voltage Mode (V) (See Jumper Settings (DIO and AI) in Chapter 2 for more details)
There is only one default analog Voltage input range: [0-10V]
2. Current Mode (mA) (See Jumper Settings (DIO and AI) in Chapter 2 for more details)
There are three modes in the analog Current input range: [4-20 mA], [0-20 mA], [4-20 mA (Burn Out)]
NOTE
Only input ranges [0-10 V] and [4-20 mA] support peer-to-peer networking.
