Moxa Technologies ioLogik E1200 Series User Manual

ioLogik E1200 Series Initial Setup
2-4

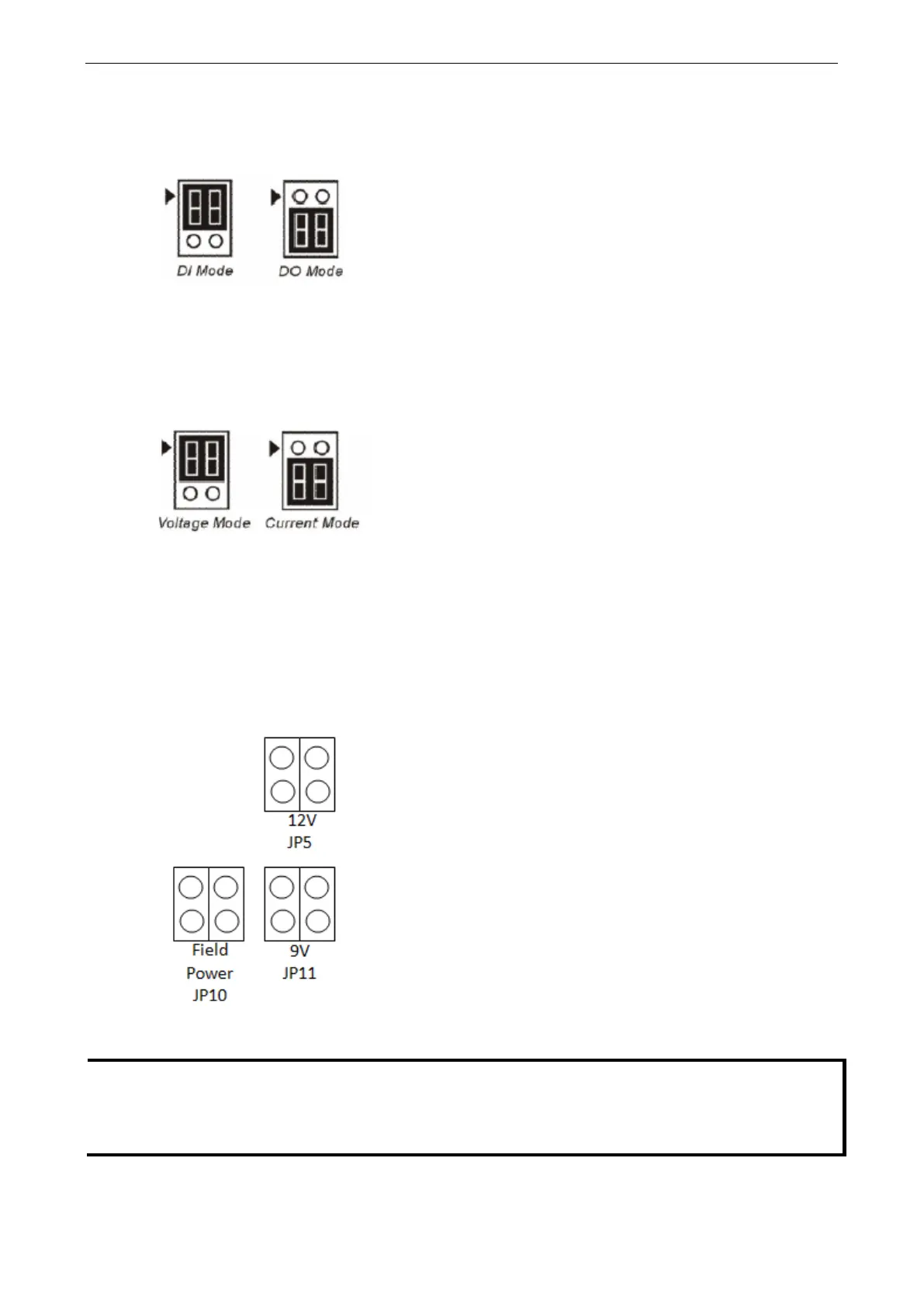

DIO Mode Configuration Settings
DIO mode configuration settings are shown below:
The default setting is DO Mode.
AI Mode Configuration Settings
Analog mode configuration settings are shown below:
The default setting is Voltage Mode.
EXT Power Configuration Settings (ioLogik E1213 Only)
The ioLogik E1213 digital outputs have 3 possible external (EXT) power configurations. Only one field power
configuration can be selected at a time (JP10 / 12V JP5 / 9V JP11) and the jumper must be inserted vertically,
not horizontally. EXT power configuration settings are shown below:
The default setting is Field Power JP10.
NOTE
The ioLogik E1213 has 4 pure DO channels and 4 hybrid DIO channels. For the 4 pure DO channels, you can use
the jumpers to select the power configuration output (i.e., field power, 12 V, 9 V). But for the 4 hybrid DIO
channels, you cannot use the jumpers to select the power configuration output. Instead, you can only use the
jumpers to set the DIO channels to either DI mode or DO mode.
