ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC
6-4
B. Select EDS file folder

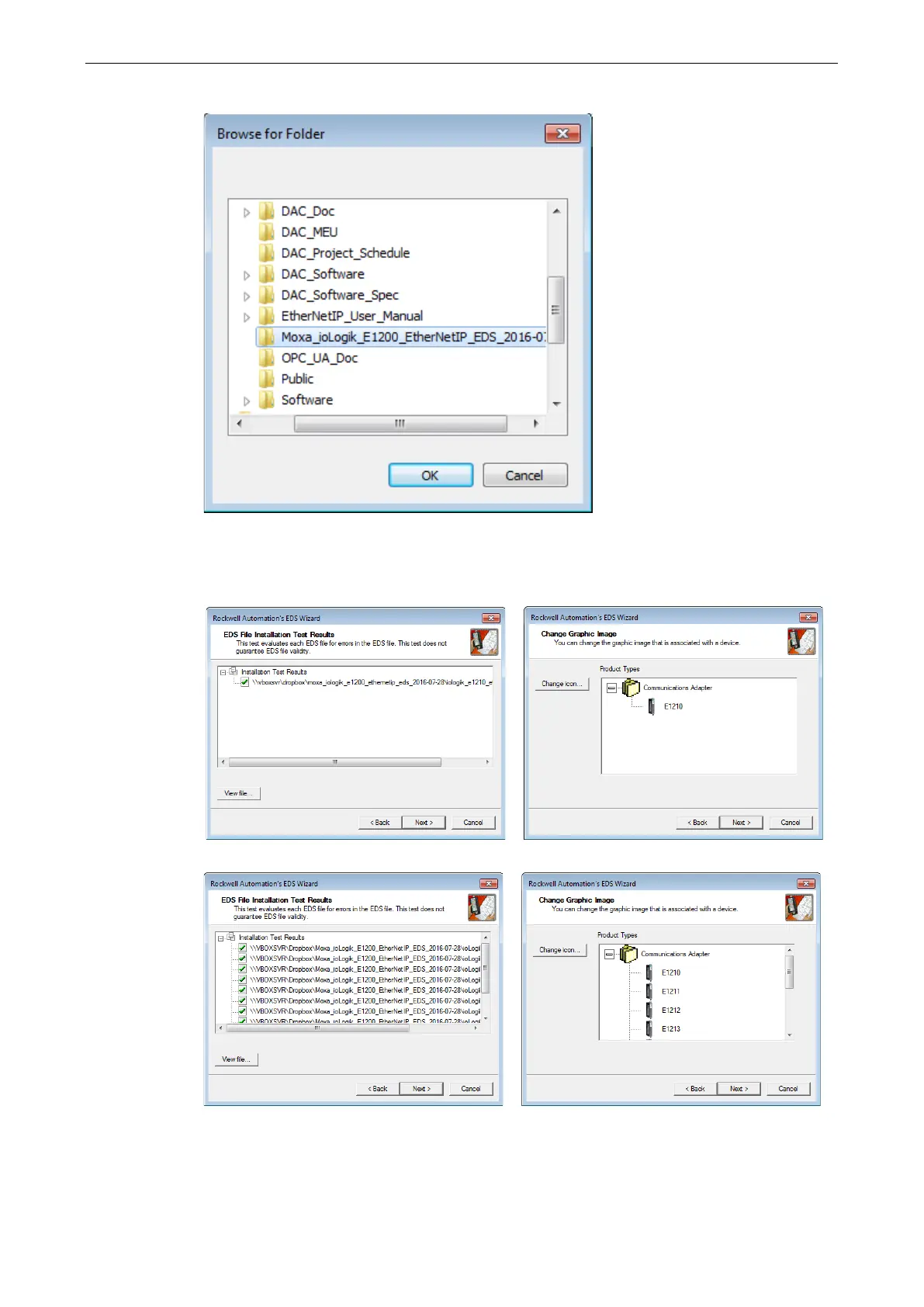

5. The EDS Wizard will evaluate the EDS file you selected and display the result, then click Next. In the
following window, you can change the device image. If you do not intend to change the image, please click
Next.
A. Single EDS file
B. EDS files folder
