6 Installation
Messko GmbH 202032 BA4001150/10 ENMSENSE
®
DGA 2/3
4. NOTICE! Make sure the oil extraction adapter belongs to this device. If
the standard version and offshore version are mixed up, the oil extraction
connection and adapter can get damaged. Push the supplied oil extraction
adapter into the opening until it audibly snaps into place.

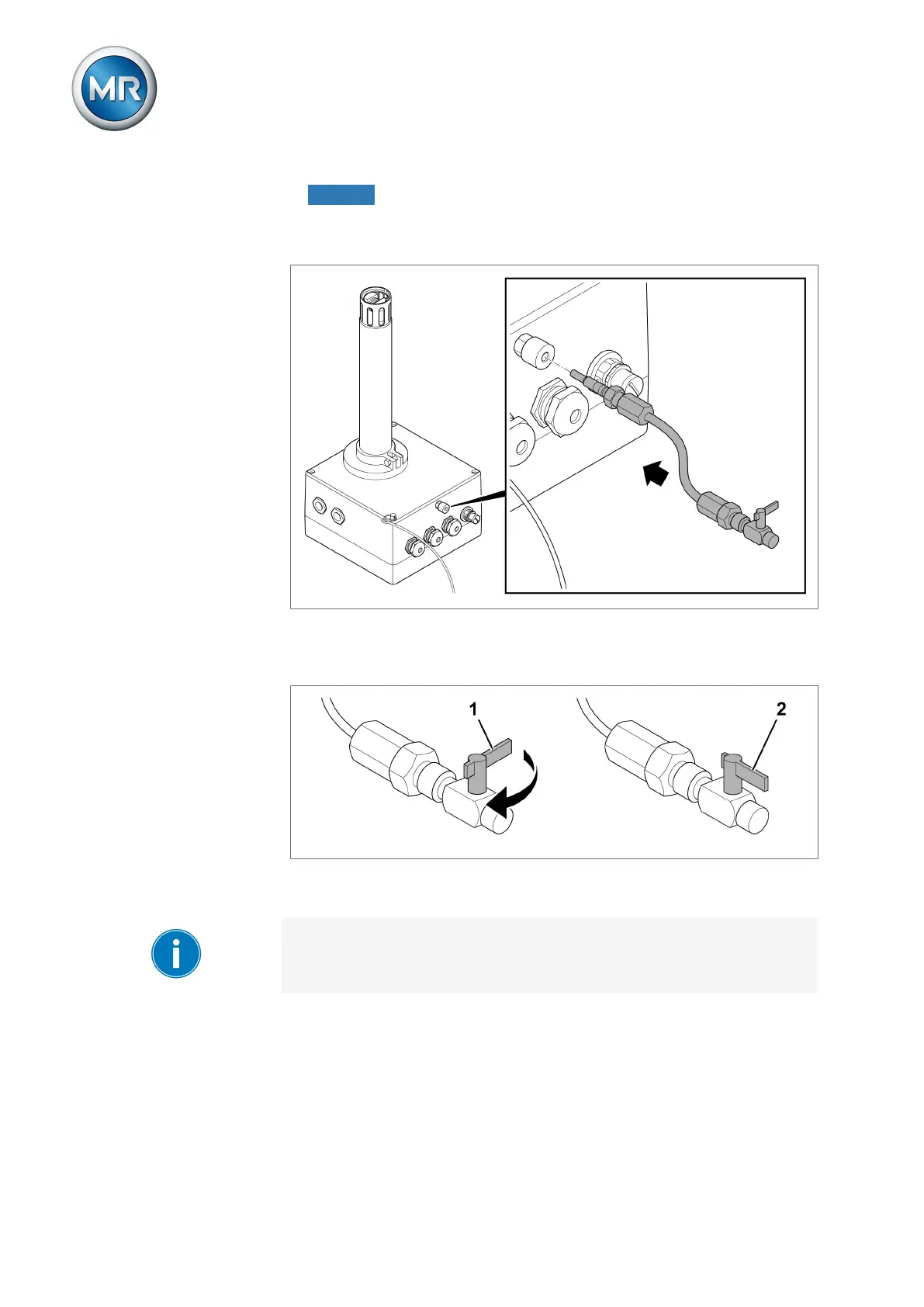

Figure15: Connecting the oil extraction adapter
5. Open the oil extractor valve such that the air present can dissipate during
further assembly.
Figure16: Opening the oil extraction adapter
6. Insert the measuring pipe into the closed ball valve.
If the device is an offshore version, the steel clamping ring on the ball valve
is to be greased prior to mounting the device (see chapter Ensuring offshore
capability [►Section 6.4, Page 48]).
