6 Installation
Messko GmbH 2020 33BA4001150/10 EN MSENSE
®
DGA 2/3
NOTICE
Risk of damage
The device measuring pipe can become tilted when it is inserted into the
ball valve.
► Support the weight of the device by hand and push the pipe into the ball
valve with even pressure up to the stop (tangible resistance).

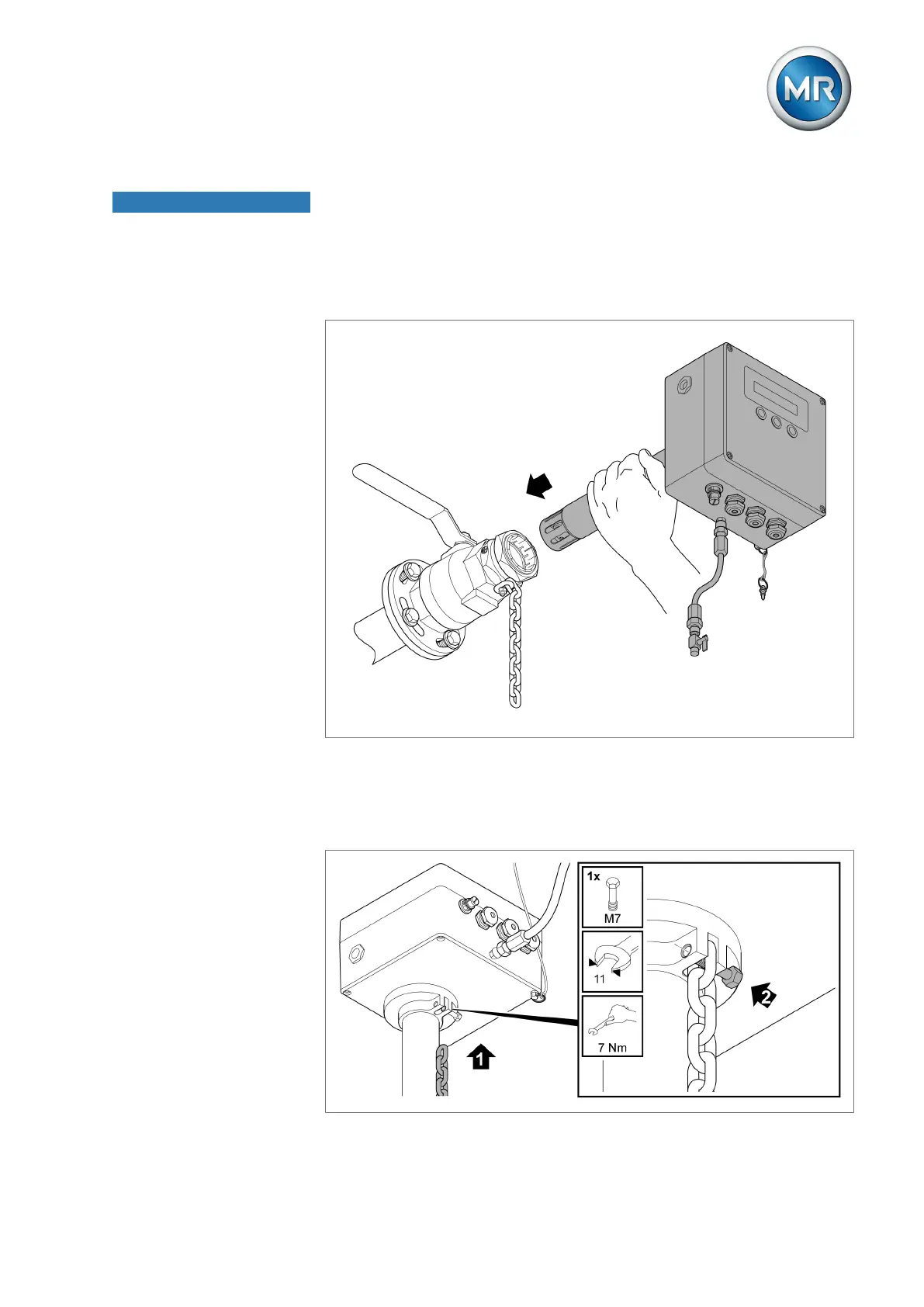

Figure17: Inserting the device into the ball valve
7. Unscrew the fixing screw for the safety chain on the device until the open-
ing for the chain is free. Insert the last link of the safety chain into the
opening, hold it in this position, thread the fixing screw through the chain
link and tighten with a torque of 7Nm.
Figure18: Inserting and securing the safety chain
