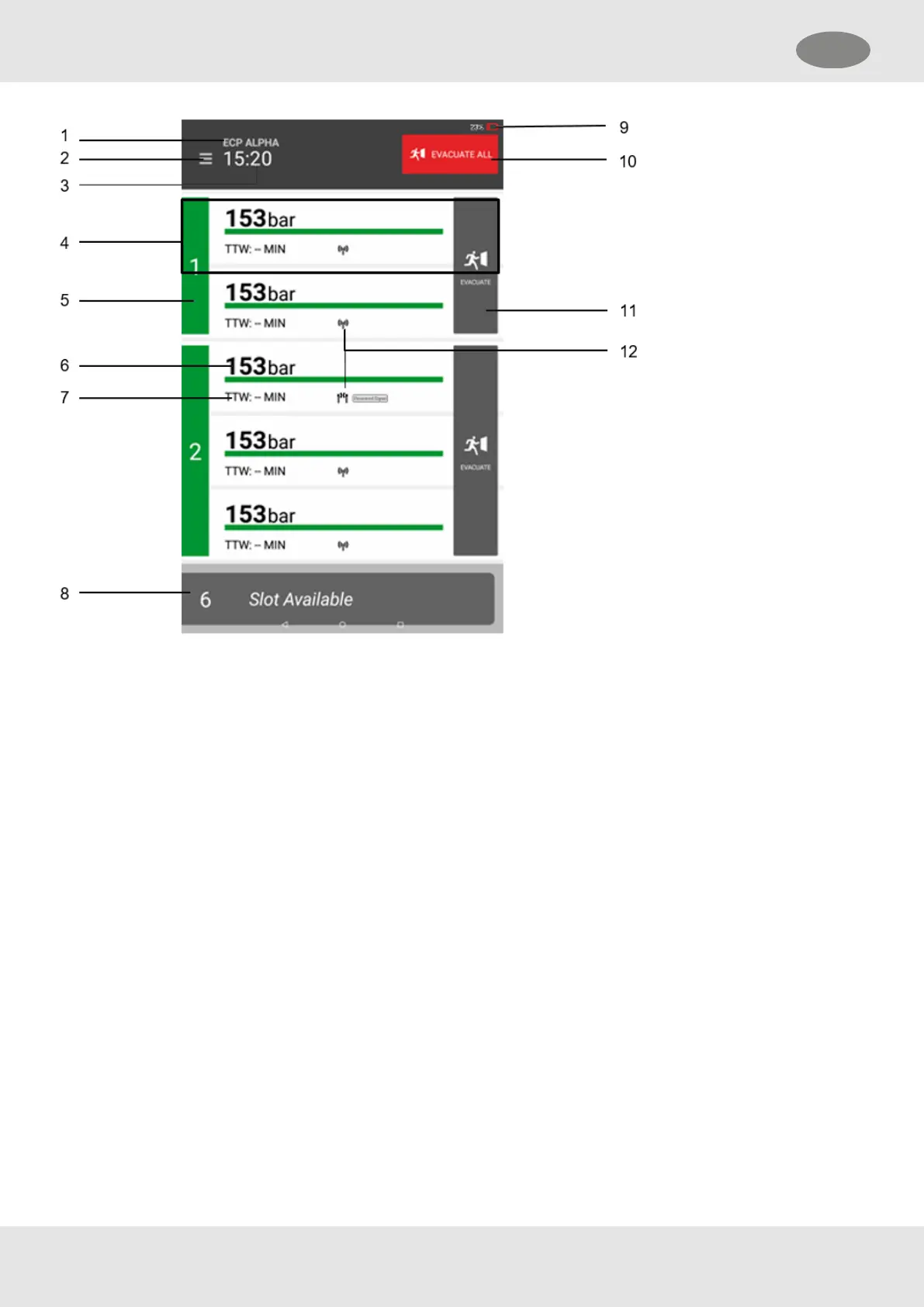

1 ECP name 7
User selected display time: TTW, TOW
or Elapsed time*
2 Settings menu 8 Empty tally slot bar
3 Current time 9
Low battery status (appears when
battery breaches ≤25%)
4
Information bar of BA wearer
operating data
10
Evacuation button for all teams and
team members
5 Team name/assignment 11 Evacuation button for one team
6 BA pressure 12
Network connection status of the
Control Module:
l Antenna symbol - Directly
connected
l Antenna symbol crossed out - No
radio connection
l Repeater symbol - Signal is
repeated
*
TTW: Time to whistle, transmitted from the Control Module – The estimated
number of minutes left before a whistle is activated.
TOW: Time of whistle, transmitted from the Control Module – The estimated
time of a whistle activation when adding the TTW to the current time.
Elapsed Time: The ECB automatically counts up from the login time.
11
2 Description GB
