MSA M1 User Manual

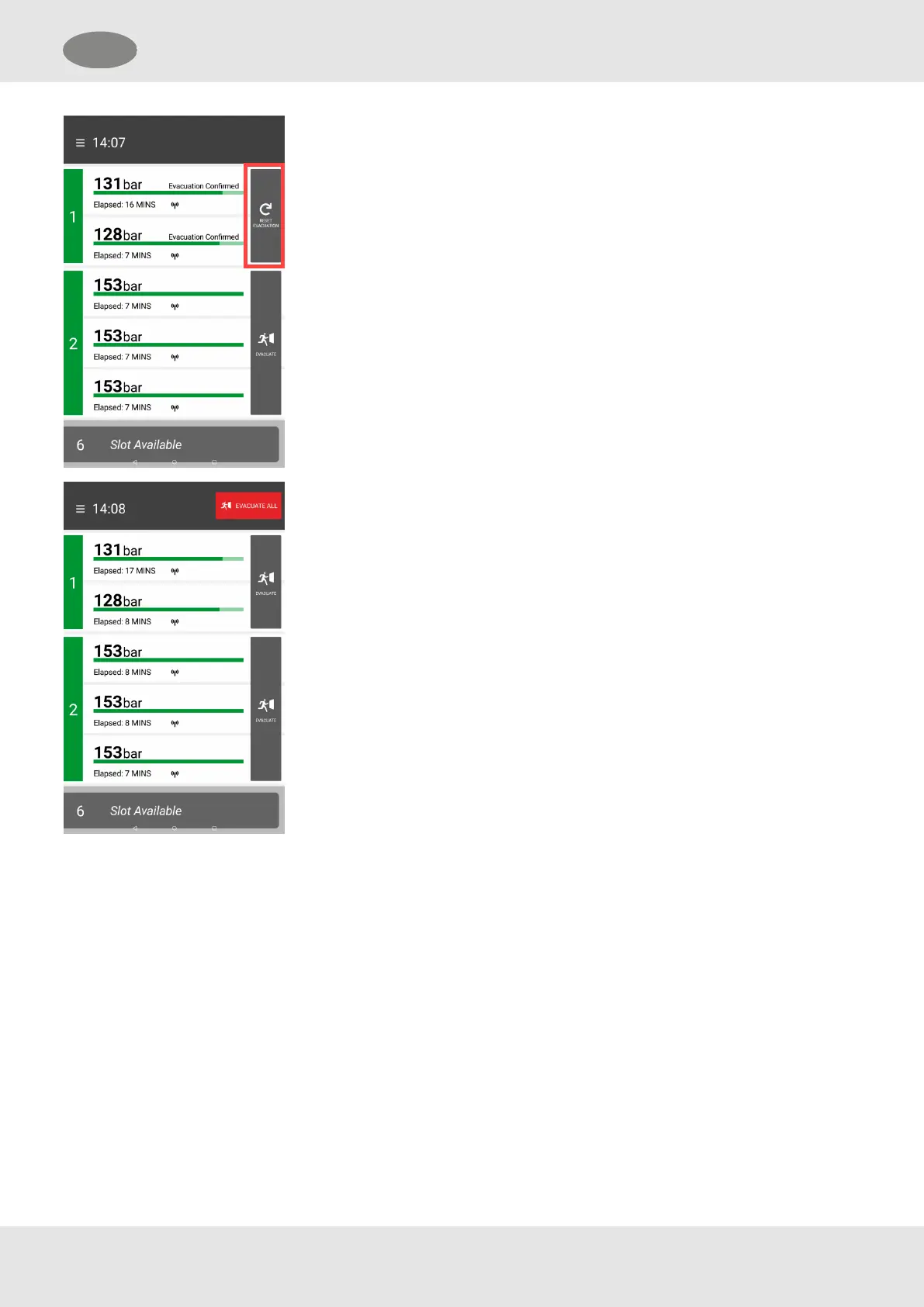

3. When the BA wearers are back at the ECP, tap on the RESET
EVACUATION button of the relevant team(s).
The evacuation request is reset.
The teams can now remain connected to the ECB for further operation or
be logged off from the ECB, refer to chapter 5.1 .
4.10.3 Incident States
During operation the user can set incident state points:
l Incident Reached
l On Withdrawal
The M1 Control Module calculates a withdrawal pressure level based on the use of pressure to reach the incident scene.
42
GB 4 Use

MSA M1 Specifications

General

Type	Control Unit
Input Voltage	24 VDC
Operating Temperature	-20°C to +60°C
Protection Rating	IP65
Dimensions	150 x 100 x 50 mm
Weight	0.5 kg
