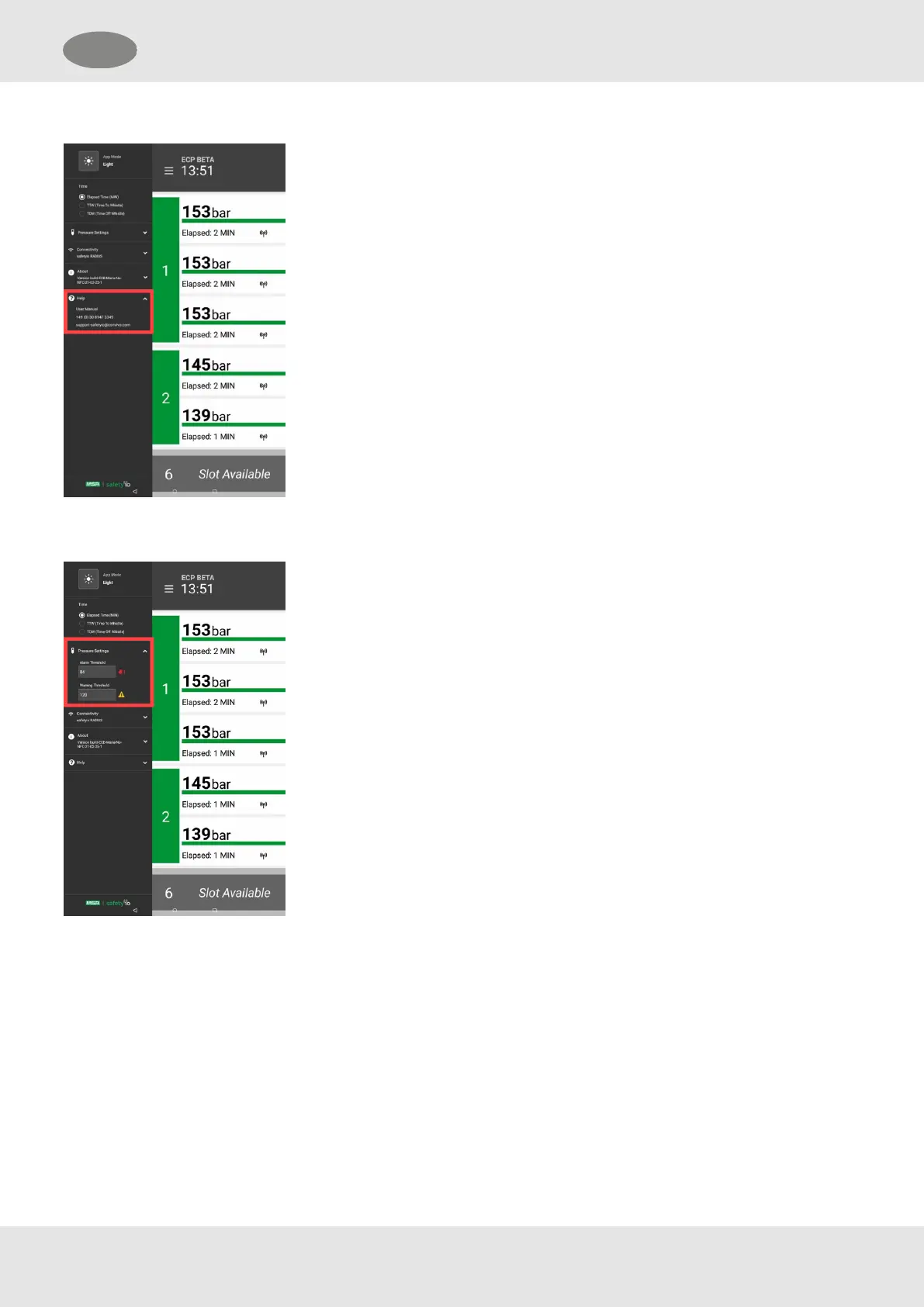

4.6.5 Contact Support
In the Settings menu, open the Help section.
The contact data are displayed.
4.6.6 Setting Pressure Thresholds
In the Settings menu, open the Pressure Settings section.
Shows the Alarm Thresholds and Warning Thresholds values.
4.7 Logging On the First BA Wearer
All BA wearers have to go to their assigned Entry Control Point. Every single BA wearer committed to enter the risk area
must be logged on in the Entry Control Board (ECB) using the tally.
The tally is attached to the safety key of the M1 Control Module. Therefore, every tally is assigned to a Control Module.
When opening the compressed air cylinder, the Control Module connects to the MSA HUB and the current operating
data of the breathing apparatus is transferred to the ECB.
1. Open the compressed air cylinder of the BA wearer.
2. Pull the safety key from the Control Module of the BA wearer.
3. Write the BA wearer information on the tally: name, current pressure level
and current time.
30
GB 4 Use
