3.

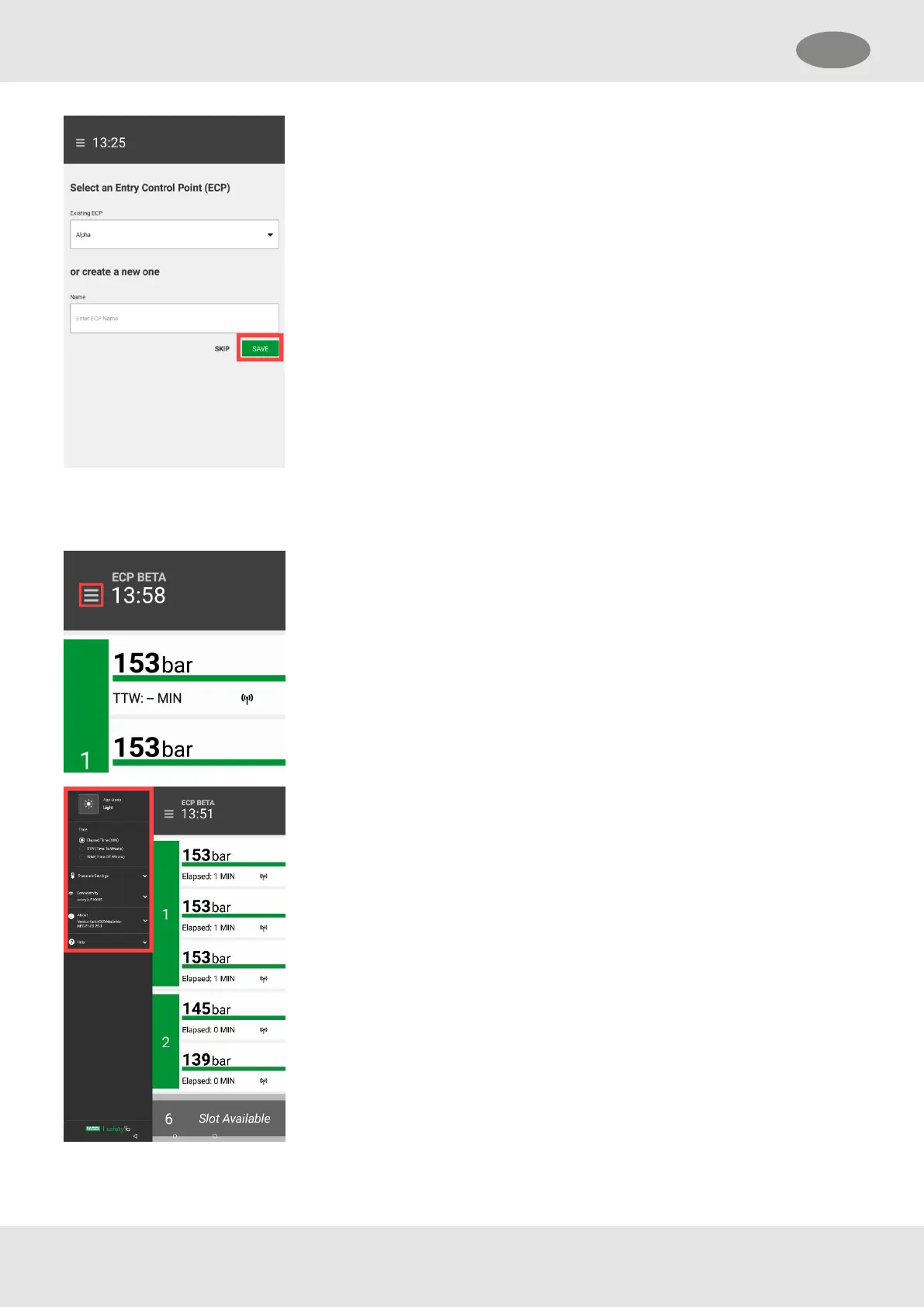

Tap
on
Save
.
The
ECP
is
selected.
4.6
Configuring
Settings
Tap
on
the
menu
symbol.
The
settings
are
displayed.
To
leave
the
Settings
menu,
tap
on
the
information
bars
list.
25
4
Use
GB
24
26
Table of Contents
Table of Contents
3
Safety Regulations
5
Correct Use
5
Liability Information
5
Description
7
Scope of Delivery
7
Overview
7
Digital Clock
8
Status Leds
8
Tally
9
Location Label
9
Telemetry System Overview
9
Setting up the Telemetry System
10
Display Overview
10
Before Use
13
Charging the Device
13
Setting up the Clocks
13
Setting up the ECB Clock
13
Setting up the Tablet Clock Via Designated Menu Items
14
Pre-Setup: Connection to the Telemetry System
14
Connecting to a Network with a Single MSA HUB
15
Connecting to a Network with more MSA Hubs
17
Use
19
Turning On/Off
19
Synchronizing the Manual and Tablet Clock
19
Connecting the Entry Control Board to MSA HUB
19
Creating a New Entry Control Point
22
Connecting to an Entry Control Point
24
Configuring Settings
25
Switching into Dark Mode
26
Changing the Time Display
27
Changing the Wifi Network
28
App Information
29
Contact Support
30
Setting Pressure Thresholds
30
Logging on the First BA Wearer
30
Logging on Additional BA Wearers
33
Assigning to an Existing Team
33
Assigning to a New Team
34
Adding BA Wearers Manually
35
Using Repeaters
36
Evacuation
36
4.10.1 Initiating a Single Team Evacuation
37
4.10.2 Initiating a Collective Evacuation
40
4.10.3 Incident States
42
Alarms/Warnings
44
After Use
48
Logging off a BA Wearer
48
Manual Logoff
48
Troubleshooting
49
Sending Debug Logs to the Customer Service
49
Disposal
53
Maintenance
54
Daily Checks
54
Replacing the Clock Batteries
54
Cleaning
55
Software Update
55
Marking/Certification
58
Marking
58
Certification
58
Installing Accessories
59
Shoulder Strap
59
Tripod Adapter
60
Display Protection Pouch
61
Technical Data
64
Ordering Information
65
Spare Parts
65
Accessories
65
Other manuals for MSA M1
Basic Manual
2 pages
Quick Start Guide
2 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the MSA M1 and is the answer not in the manual?
