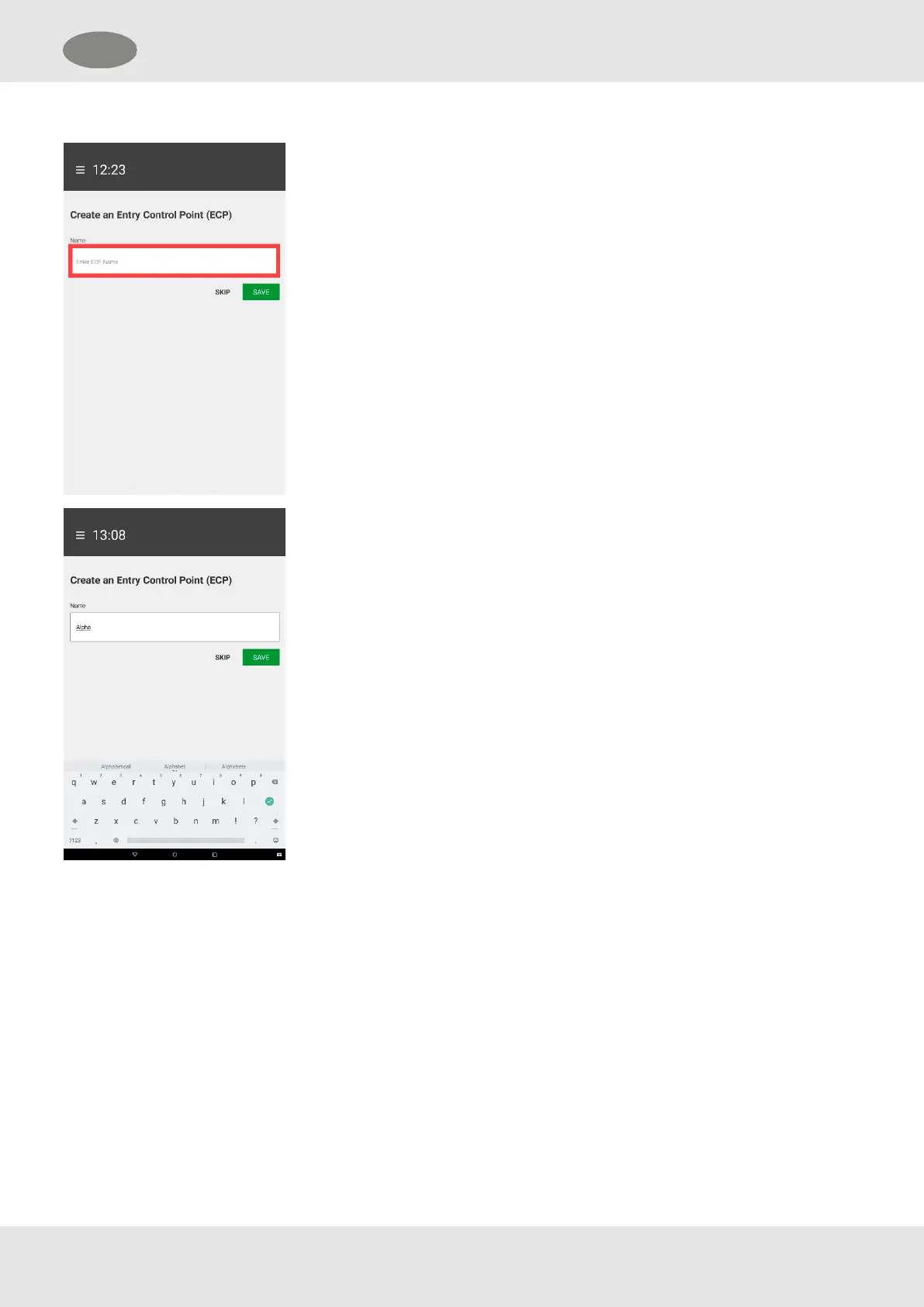

Creating
a
New
Entry
Control
Point
1.
Tap
on
the
entry
field
Enter
ECP
name.
A
keyboard
is
displayed.
2.
Enter
a
name
for
the
new
ECP
following
the
local
guidelines,
e.g.
Alpha
.
22
GB
4
Use
21
23
