MSA M1 User Manual

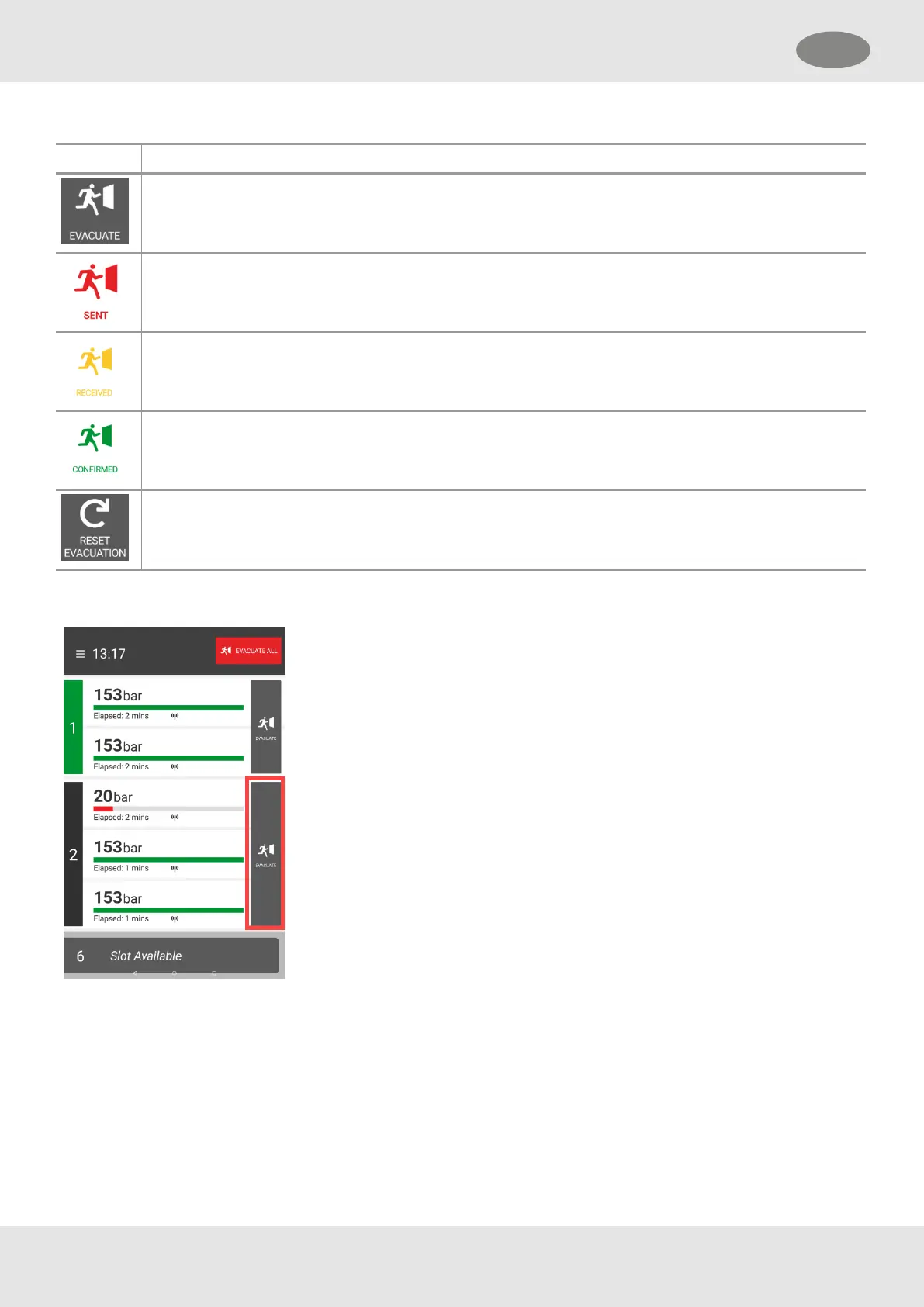

Evacuation Statuses
Symbol Description
The evacuation button can only be pressed by the ECO. After that, an evacuation request is sent to the
affected BA wearers in the risk area.
The evacuation request is sent out, but has not reached the Control Module of the affected BA wearers
yet.
The evacuation request from the ECO has reached the Control Module. An acoustic alarm informs the BA
wearer about the evacuation request.
The BA wearer has aknowledged the alarm by pressing one of the mode buttons twice.
As soon as all BA wearers requested for evacuation have confirmed the evacuation request, the button
can be reset.
4.10.1 Initiating a Single Team Evacuation
1. Tap on the EVACUATE button of the affected team, e.g. Team 2.
37
4 Use GB

MSA M1 Specifications

General

Type	Control Unit
Input Voltage	24 VDC
Operating Temperature	-20°C to +60°C
Protection Rating	IP65
Dimensions	150 x 100 x 50 mm
Weight	0.5 kg
