HYDROCAL 1001+ Installation and operation manual Page 14/76
2.4.2. Electrical connection
 Use protective conduits as protection for all cables and connect them to the corresponding
connectors inside of the unit (3.3). All cables have to be provided by the customer.

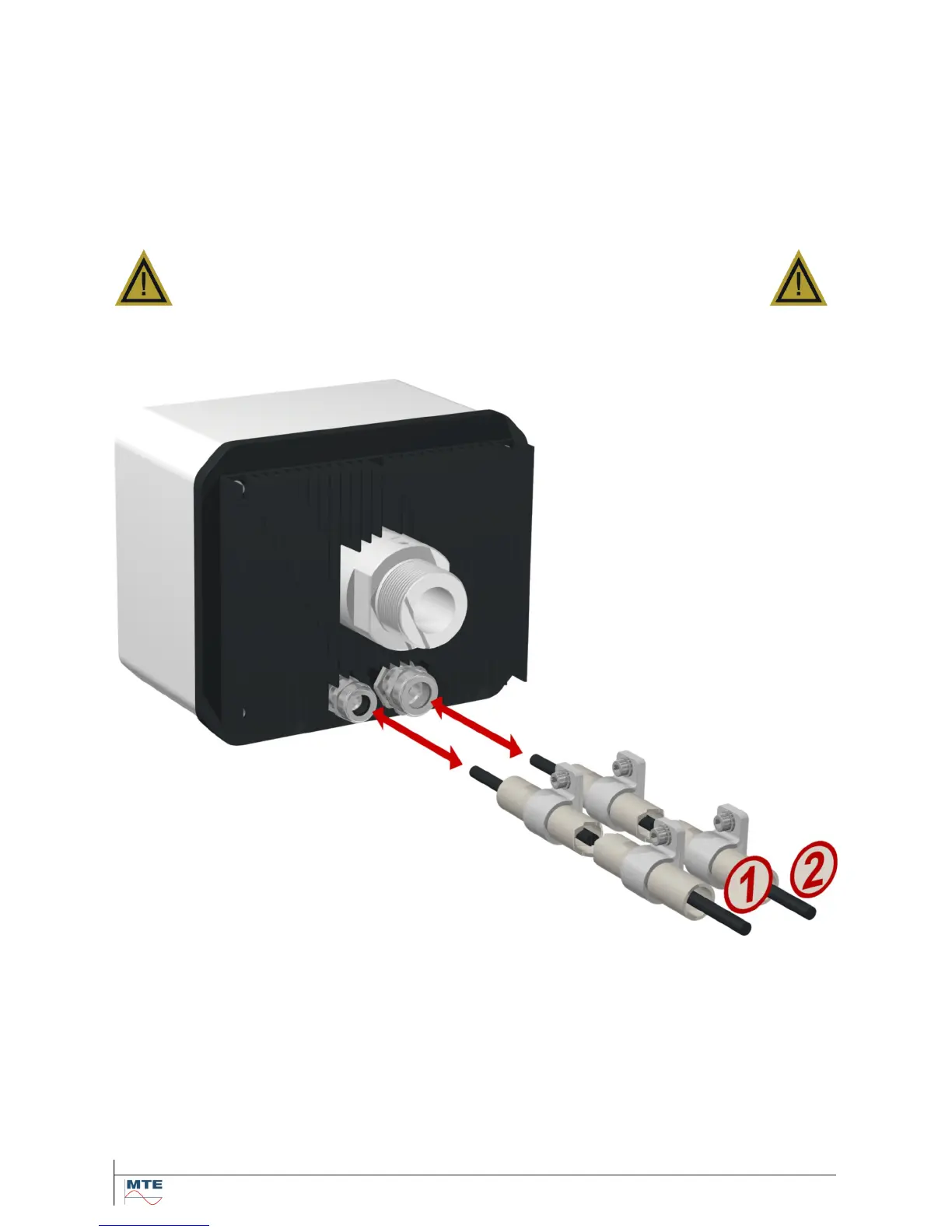

 For feed through, following cable gland must be used for all cables:
1x M20 SKINTOP® cable gland (Clamping range 7,0 ... 13,0 mm)
1x M25 SKINTOP® cable gland (Clamping range 9,0 ... 17,0 mm)
Attention !!!
For cables with a smaller diameter please use reducing seal inserts to
provide clamping and sealing!
Note: The unit comes with 2 SKINTOP
®
cable glands (M20 and M25) from the factory!

Supply voltage connection:
Recommendation for supply voltage cable:
Cable type: PUR-PUR CEE JB 3x1.50 (or equivalent)
Cable diameter : 8,1 mm
Cross section : 1,5 mm
2
(of 3 internal wires)
