HYDROCAL 1001+ Installation and operation manual Page 46/76
4.3.1.7. LED bar levels - Moisture
The HYDROCAL unit contains an additional LED bar level monitoring to give the user a rough over-
view of the moisture concentration. It is completely independent form the alarm level monitoring and
is visualized with 1 green- and 2 red single color LEDs. The moisture concentration has 2 configura-
ble levels (level 1 ... 2) and their status will be illustrated with the 3 LEDs.

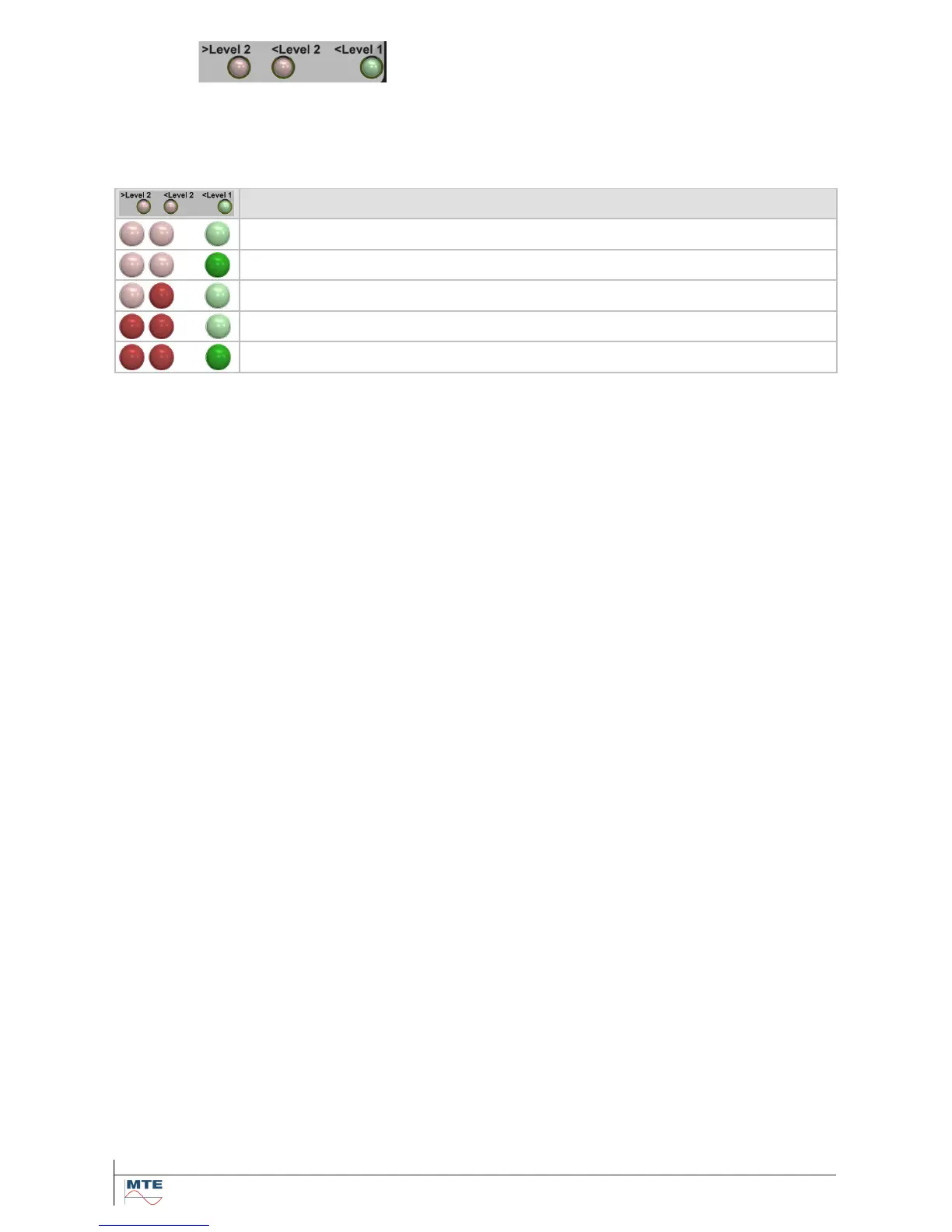

The LED bar levels for moisture concentration are illustrated as follow:
Moisture sensor not active - measurement function stopped
Moisture concentration < Level 1
Moisture concentration < Level 2
Moisture concentration ≥ Level 2
Moisture sensor active - error
Note: The standard settings for LED bar levels moisture concentration are:
Level 1: 10 Level 2: 20
These settings can be modified in Hydrosoft -> settings -> LED Bar Levels.
