3. Hardware components
3.1. Front view

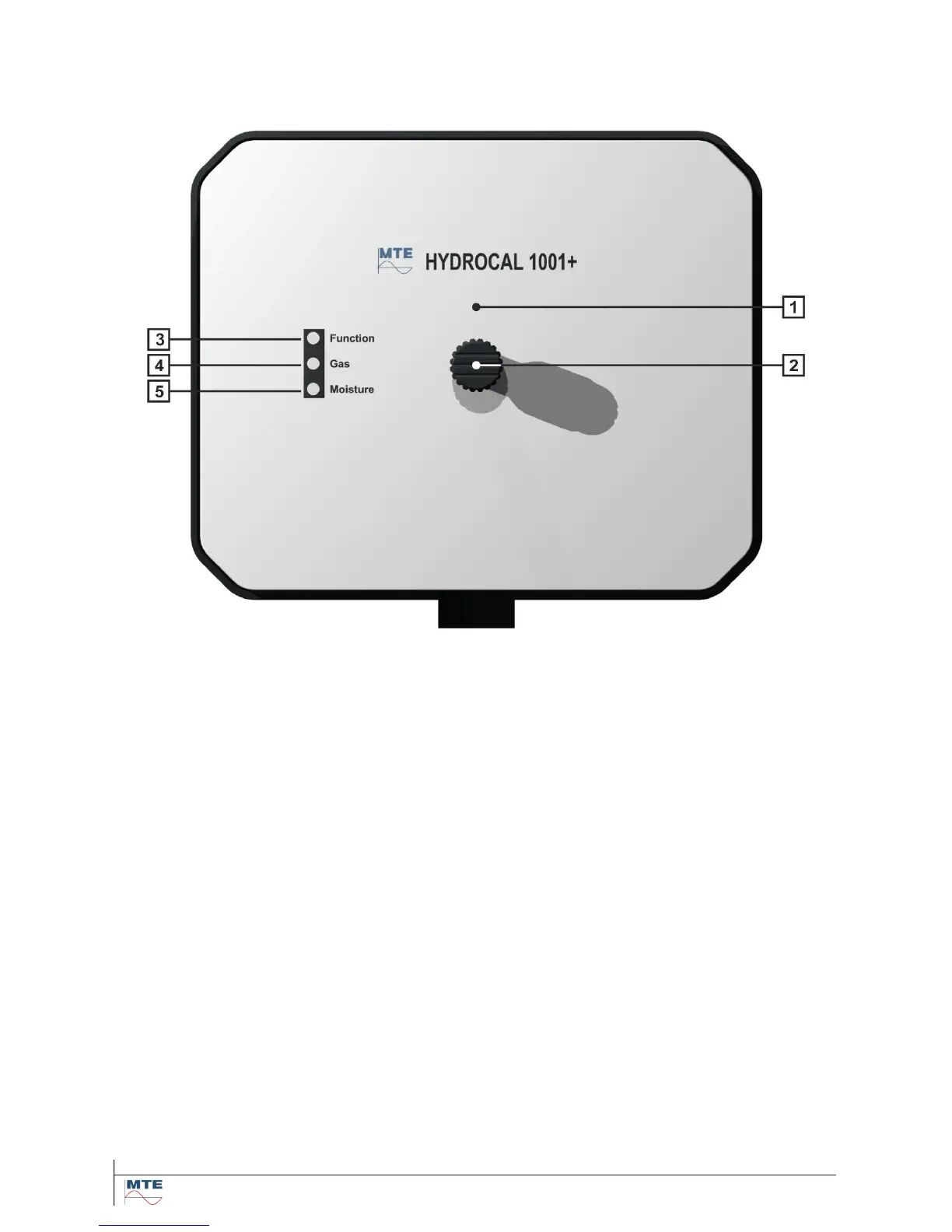

The front consists of the following components:
[1]
Protection cover with aeration hole
[2]
Knurled thumb screw to fasten the protection cover
[3]
Function LED of external user interface
[4]
Gas LED of external user interface
[5]
Moisture LED of external user interface
