HYDROCAL 1001+ Installation and operation manual Page 33/76

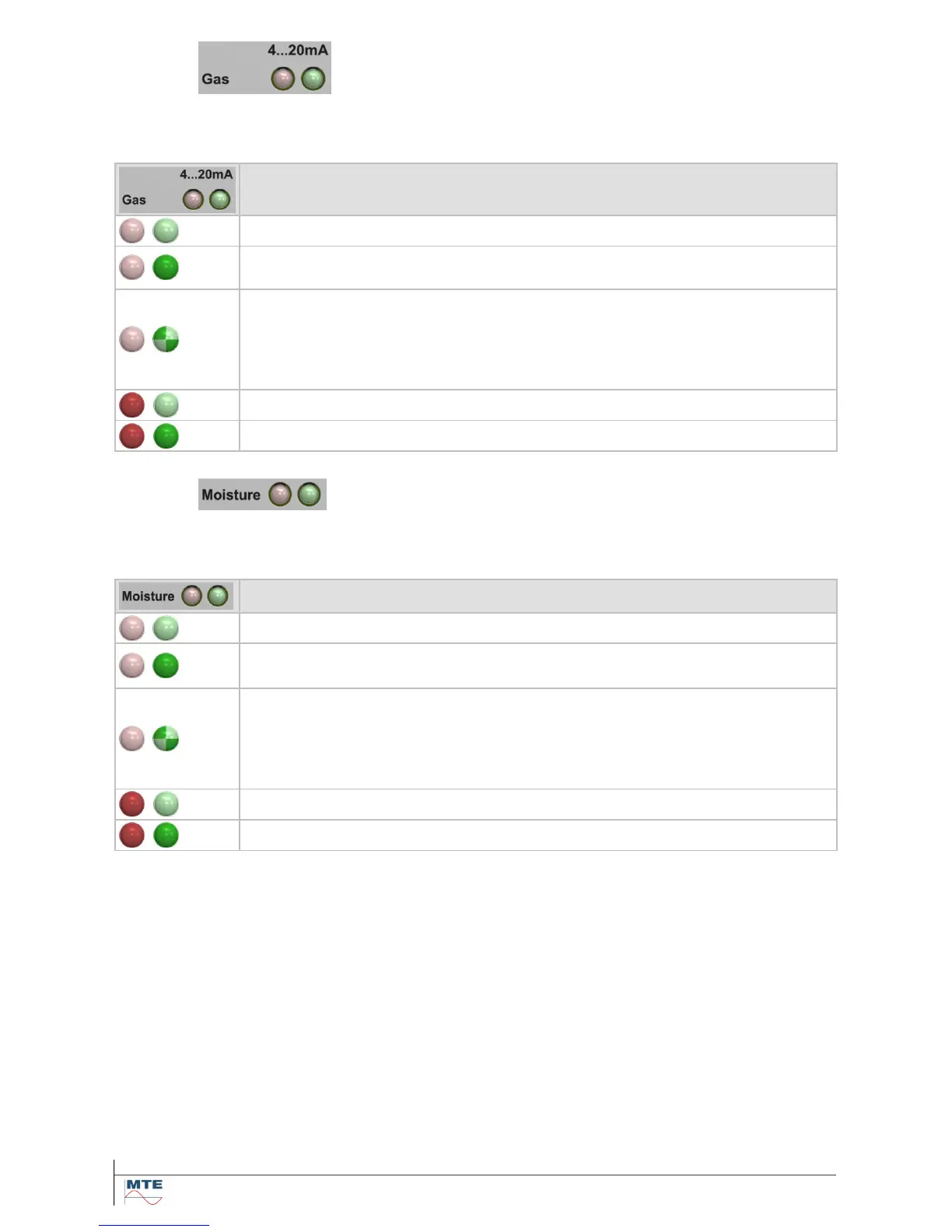

4.3.1.4. LED Gas analog output
The status and the actual value of the analog output are represented by a red- and a green single
color LED.
The LEDs illustrates the status and the actual value of the analog output as follow:
Description
Analog output not configured
Red LED Green LED
off on output current ≤ 4 mA
Red LED Green LED
off ~1 s on / ~1 s off output current ≤ 8 mA
off ~½ s on / ~½ s off output current ≤ 12 mA
off ~¼ s on / ~¼ s off output current ≤ 16 mA
off ~⅛ s on / ~⅛ s off output current ≥ 16 mA
Sensor signal for analog output not available
- not defined -
4.3.1.5. LED Moisture analog output
The status and the actual value of the analog output are represented by a red- and a green single
color LED.
The LEDs illustrates the status and the actual value of the analog output as follow:
Description
Analog output not configured
Red LED Green LED
off on output current ≤ 4 mA
Red LED Green LED
off ~1 s on / ~1 s off output current ≤ 8 mA
off ~½ s on / ~½ s off output current ≤ 12 mA
off ~¼ s on / ~¼ s off output current ≤ 16 mA
off ~⅛ s on / ~⅛ s off output current ≥ 16 mA
Sensor signal for analog output not available
- not defined -
