HYDROCAL 1001+ Installation and operation manual Page 19/76

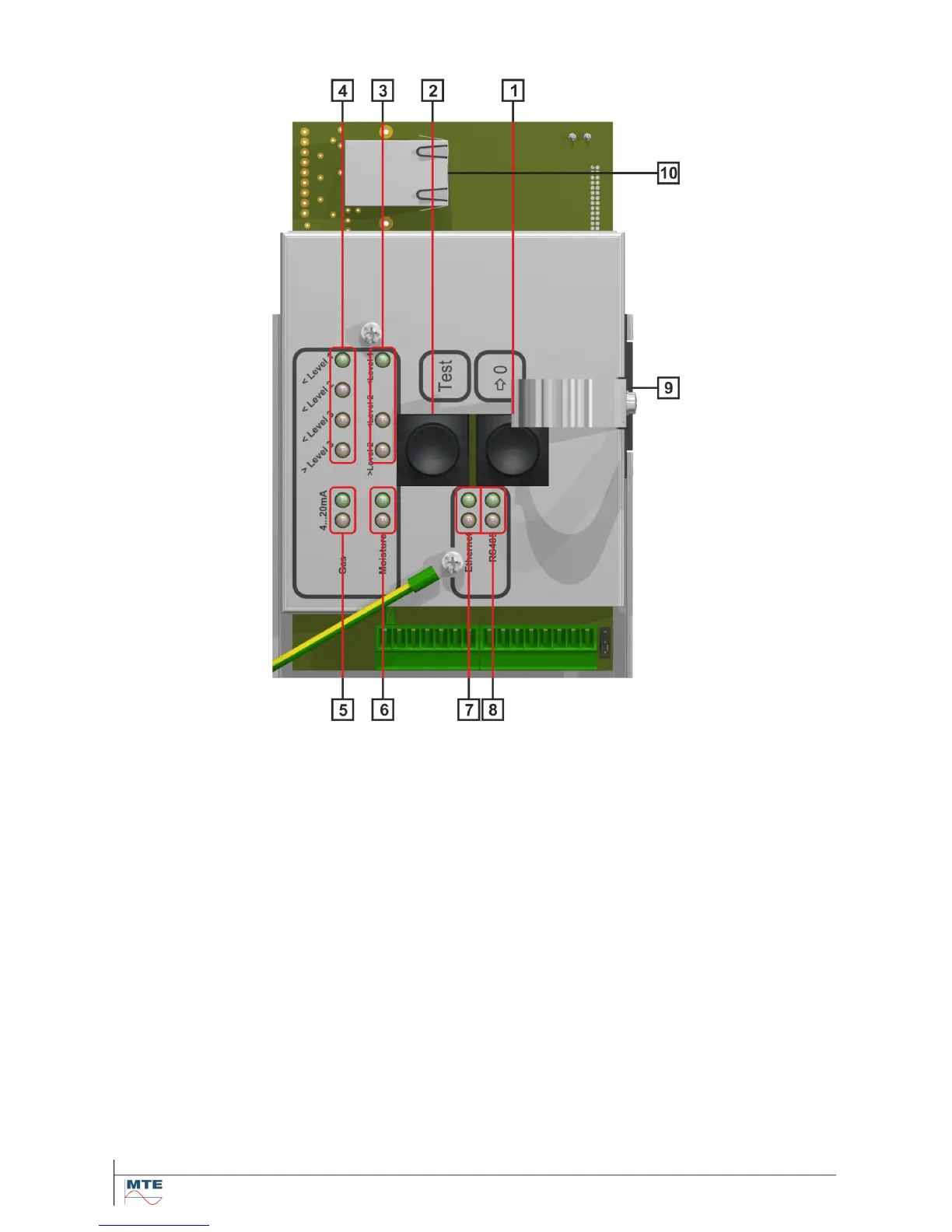

3.3. Connections of measurement- and controller card
[1]
Reset Button [→0] (to zero)
Functional test and alarm acknowledgment (automatic test of LEDs and digital outputs)
Communication interface reset – in conjunction with the test button
[2]
Test Button [Test]
Test mode (detailed manual test of analog- and digital outputs)
Communication interface reset – in conjunction with the reset button
[3]
LED bar level - Moisture
Moisture concentration indication with 3 single color LEDs
[4]
LED bar level - Gas
Gas concentration indication with 4 single color LEDs
[5]
Analog output LEDs - Gas concentration
Analog output indication for gas concentration with 2 single color LEDs
[6]
Analog output LEDs - Moisture concentration
Analog output indication for moisture concentration with 2 single color LEDs
[7]
Ethernet connection LEDs
Status and data traffic indication with 2 single color LEDs
[8]
RS485 connection LEDs
Status and data traffic indication with 2 single color LEDs
