Supply voltage connection with SKINTOP® cable gland M20
Nominal voltages: 120 V -20% +15% AC 50/60Hz
1)
or
230 V -20% +15% AC 50/60Hz
1)
or
120 V -20% +15% DC
1)
or
230 V -20% +15% DC
1)
Other nominal voltages on request!
Power consumption: max. 250 VA
Micro-fuse at 120V: T3.15A
Micro-fuse at 230V: T2A

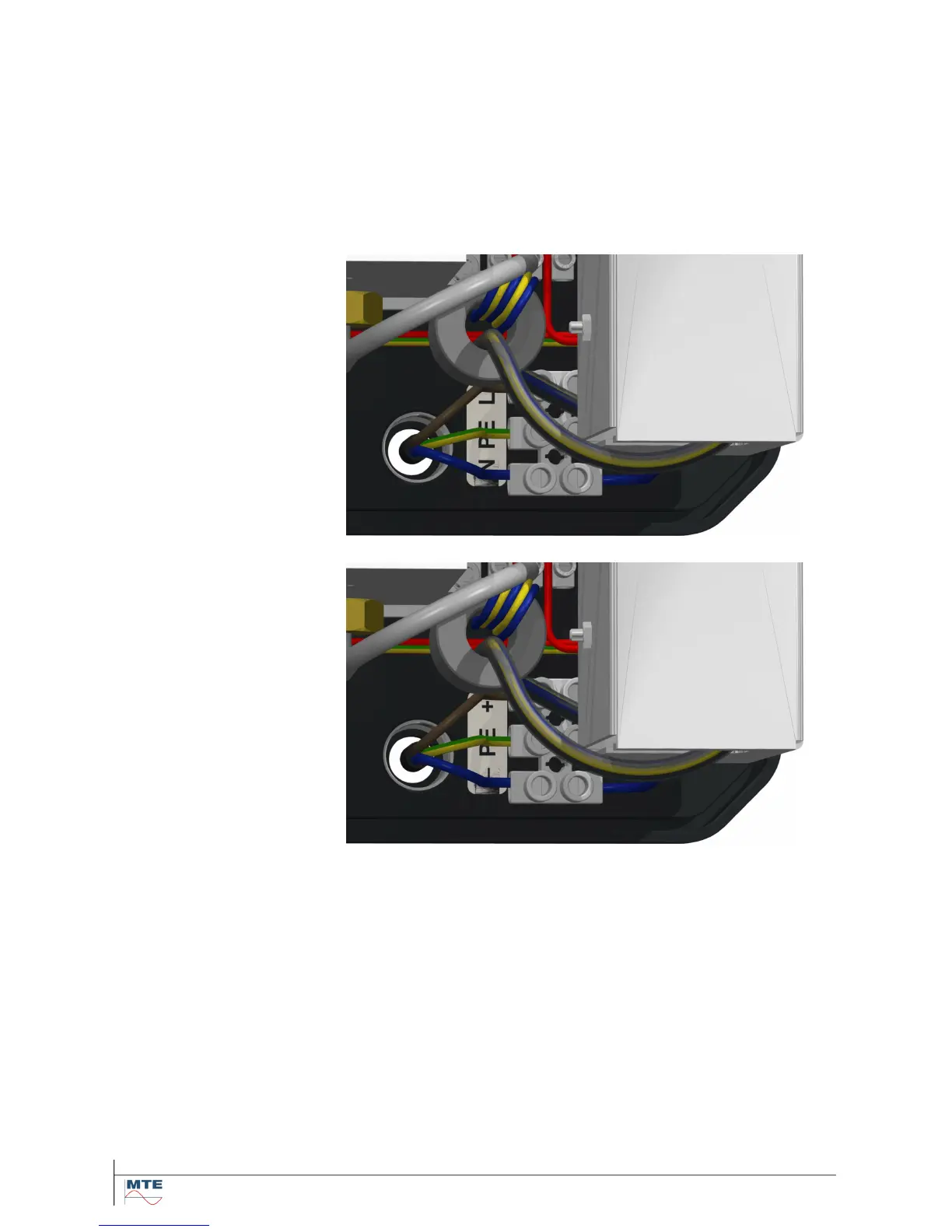

Connect the supply voltage cable as followed:
AC Version
Phase: L
Protection earth: PE
Neutral: N
DC Version
Plus conductor: +
Protection earth: PE
Minus conductor: –
Note
1)
:
120 V  120 V -20% = 96 V
min
120 V +15% = 138 V
max
230 V  230 V -20% = 184 V
min
230 V +15% = 264 V
max
[3]
System connection with SKINTOP
®
M25 cable gland
Communication (Ethernet / RS485) / Analog outputs / Relay outputs
