HYDROCAL 1001+ Installation and operation manual Page 17/76

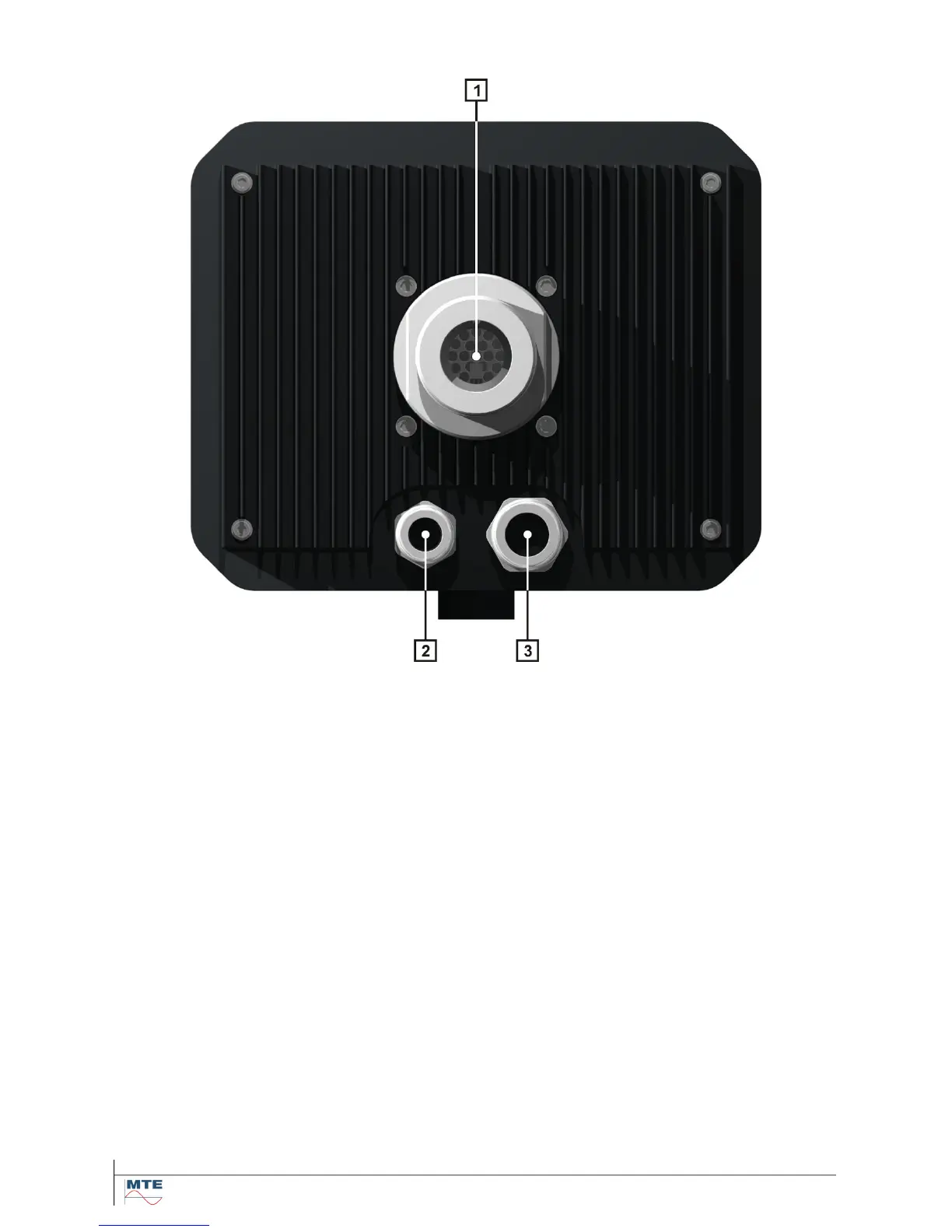

3.2. Rear view
[1]
Oil unit with connection thread
G 1½” DIN ISO 228-1
or
1½” NPT ANSI B 1.20.1
