Multiplex MB-8-1 - VERSION 2 ICE MACHINE R290 REFRIGERANT - ICE MAKER & ICE DISPENSER WIRING DIAGRAM

174 Part Number STH034 3/12
VERSION 2 ICE MACHINE R290 REFRIGERANT -

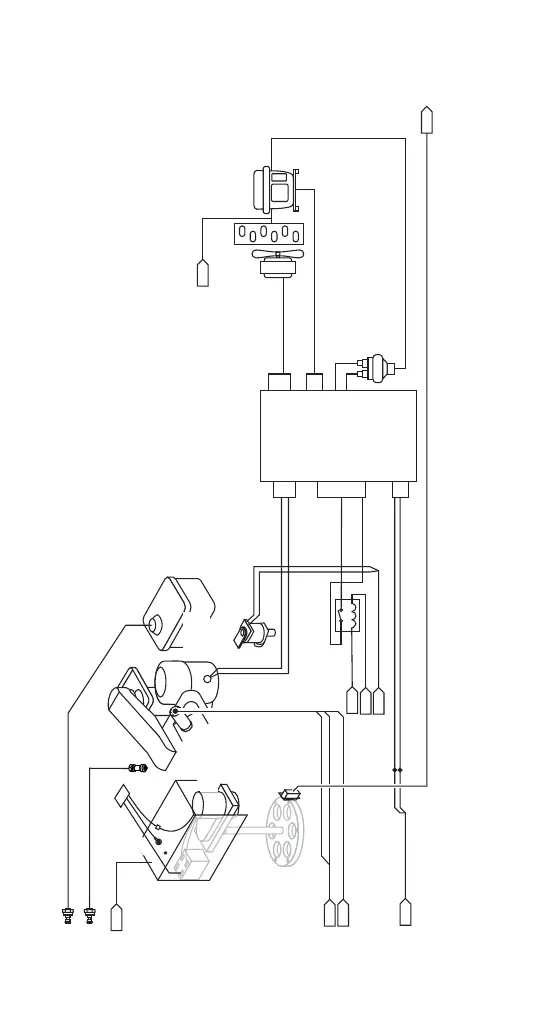

ICE MAKER & ICE DISPENSER WIRING DIAGRAM
24V
SHT1
BIN LEVEL
SHT1
Ice Maker Water
Drain Solenoid
Valve
Ice Level
Ice Bin Nozzle
Sensor
AC GEARMOTOR
Ice Maker
Water
Reservoir
CHILLED WATER INLET ICE BIN CLEANING
SHT1
Compressor Assy
Fan Motor
ICE
Refrigerant
WHT
BLU
BLU
WHT
WHT
ELECTRICAL ICE MACHINE
ENCLOSURE
REFERENCE SHEET 4
Refrigerant
BRN
BLACK
BROWN
BLU
ICE MAKER
REFRIGERANT
PRESSURE
SWITCH
Ice Dispenser Position Switch
WHT
BLK BLK
SHT1
ICE COMPRESSOR AC
ICE CAROUSEL AC
ICE MAKER AND ICE DISPENSER
Capacitor
BLK
GRN
WHT
WHT
RED
Magnet
Ice
Carousel
Assembly
Ice Carousel Gear Motor
SHT1
SHT1
ICE POSITION
BIC SMOOTHIE SYSTEM DIAGRAM, SHEET 3
CHASSIS
GND
BLUE/PINK
BLU
BLU
BLK BLK
ICE MAKER
RELAY
J24
SHT1
J23
SHT1 SHT1
RED +24VDC BLK DC GROUND
DRAIN VALVE
Black (Cord)
