Munters R Series User Manual

an ISO 9001 Company
CHICAGO BLOWER CORPORATION • 1675 Glen Ellyn Road • Glendale Heights, IL • 60139
fan.net v21.5.51
Description
Job Description: Munters CHICAGO BLOWER SALES OF BOSTON
Reference: AD (Bert) Jordan
Fan Type: Square Fans Phone: (603) 425-7979
Fan Model: Design 36A SQAD SW Airfoil Direct Drive Fax: (603) 425-7703
Fan Size: 16 1/2 e-mail: cbs.boston@comcast.net
Fan Width: 100%
Performance
Values are in accordance with AMCA Standard 210
Volume Flow Rate (ACFM) 5500
Static Pressure (IN. WG) 11.3
Density (LB/FT³) 0.068
Temperature (°F) 120
Altitude (FT) 0
Speed (RPM) 3530
Power Required (BHP) 13.8
Static Efficiency (%) 70.6
Outlet Velocity (FT/MIN) 3444
Damper Opening (%) N/A
Control Type N/A
Outlet Area (FT²) 1.6
Sound
Values are in accordance with AMCA Standard 300
External Sound Power Levels (dB):
Center Hz 63 125 250 500 1000 2000 4000 8000
L
wi
Design 88 96 99 95 91 87 85 81
ERC 12 7 3 1
Sound Pressure 3.0 FT from Fan (dBA) 90
Sound Pressure, Radiated, 3.0 FT from 0.105 housing 67 dBA.
L
wi
(L
wo
) is sound power at the fan inlet (outlet)/airstream, less ERC.
89
0
20
40
60
80
100
0
10
20
30
40
50
60
0

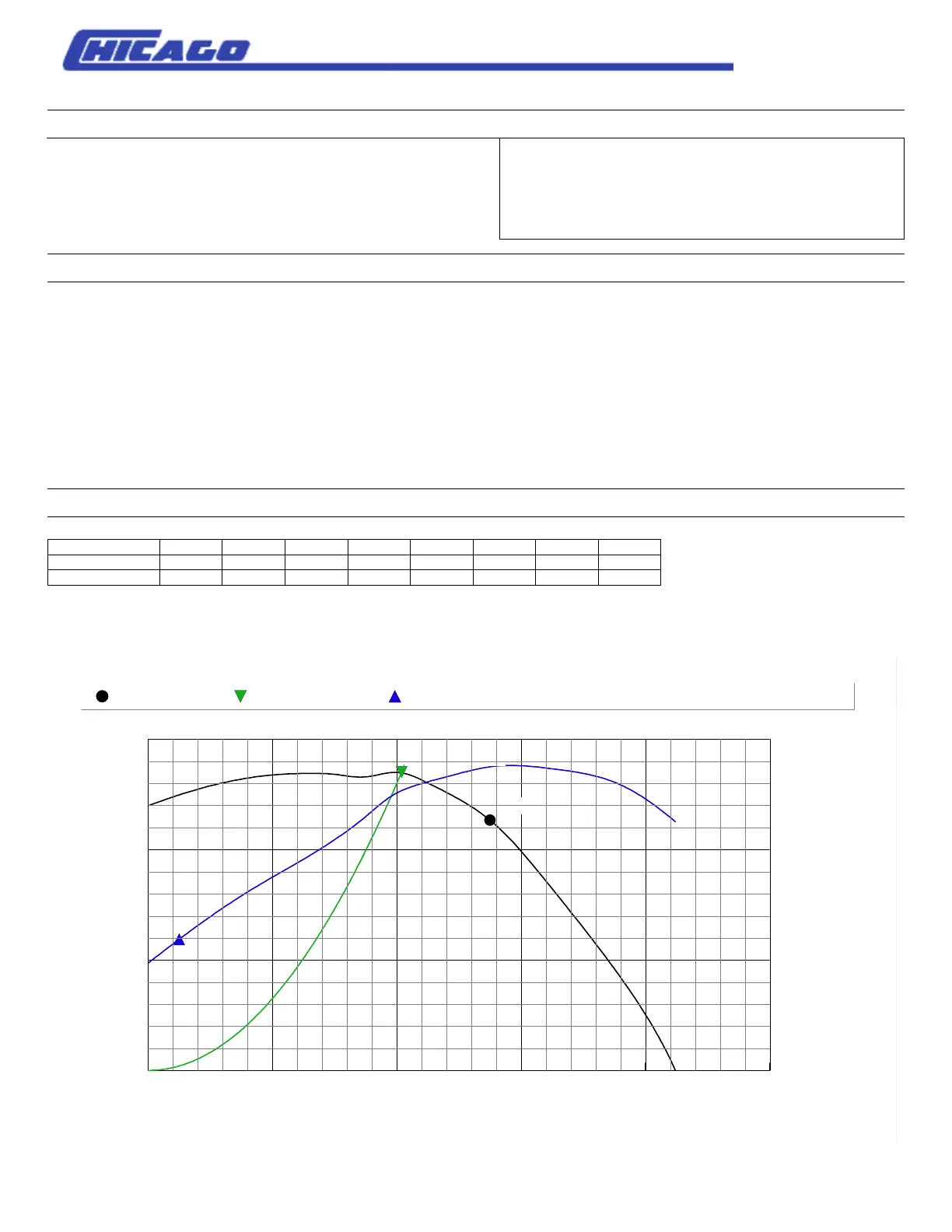

Static Pres. (IN. WG)
Flow Rate (ACFM) x 1000
0
5
10
15
0246810
0
5
10
15
Horsepower (BHP)
Design
Peak Pressure
- Design Point - Peak Pressure - Power vs. Vol
CAUTION: FAN MUST NOT OPERATE LEFT OF PEAK PRESSURE CURVE, EXCEPT FOR START-U
R05 Process Fan
