Manual# I27028 6-9 Rev. 2 – 11/22/2017

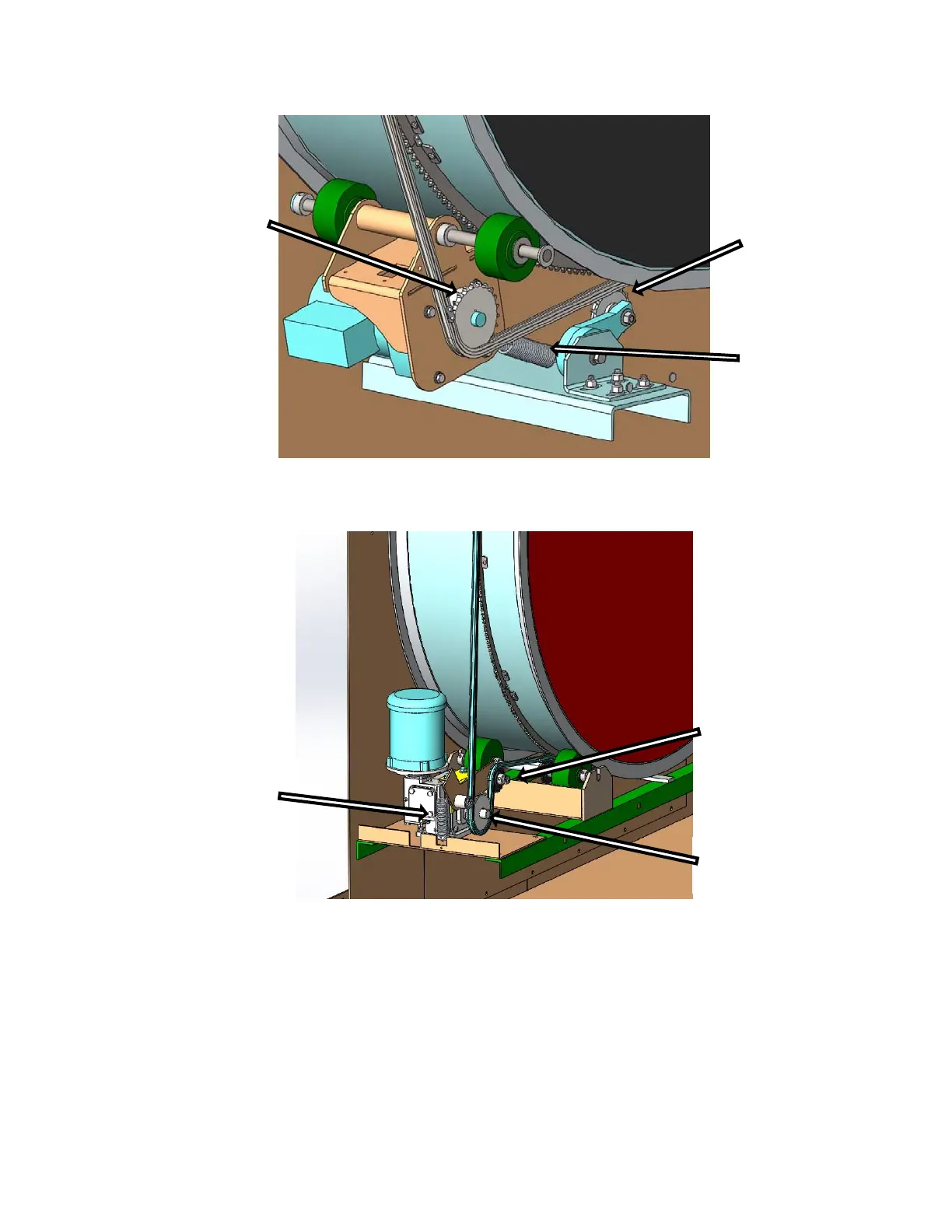

Figure 6-1
R05 CHAIN DRIVE ASSEMBLY
Figure 6-2
R10 & R15 CHAIN DRIVE ASSEMBLY
6.14 INSPECTING AND MAINTAINING THE CHAIN
1. The chain should be inspected every six months for cleanliness, lubrication,
alignment, damage, and excessive wear. Replace it if necessary.
2. In order to lubricate the chain, it’s best to start with a clean chain. The chain can be
cleaned using commonly available cleaning/degreasing products (found at home
centers, hardware and automotive stores) and shop rag.
3. Munters recommends lubricating the chain with a dry lubricant spray such as
Drive
Sprocket
Idler
Sprocket
Drive
Sprocket
Tensioning
Spring
Tensioning
Spring
Idler
Sprocket
To Next Page
