Manual# I27028 5-9 Rev. 2 – 11/22/2017
Here are the items on this screen:
SYSTEM RTM Total run time for whole system, including the dehumidifier and
any additional equipment mounted upstream or downstream
DH RTM Total run time for dehumidifier only
3. HMI - REACTING TO ALARMS
Note - The operator interface display reports on operating conditions inside the
dehumidifier, but they are really two separate units. If an alarm is triggered it must be
corrected in two places - on the dehumidifier itself, and also on the operator display.
1. If the unit detects a fault condition, the ALARMS button on the display will blink red
and the Fault Light on the control panel will light. For a warning, the ALARMS
button on the display will blink yellow and the Warning Light on the control panel
will light.

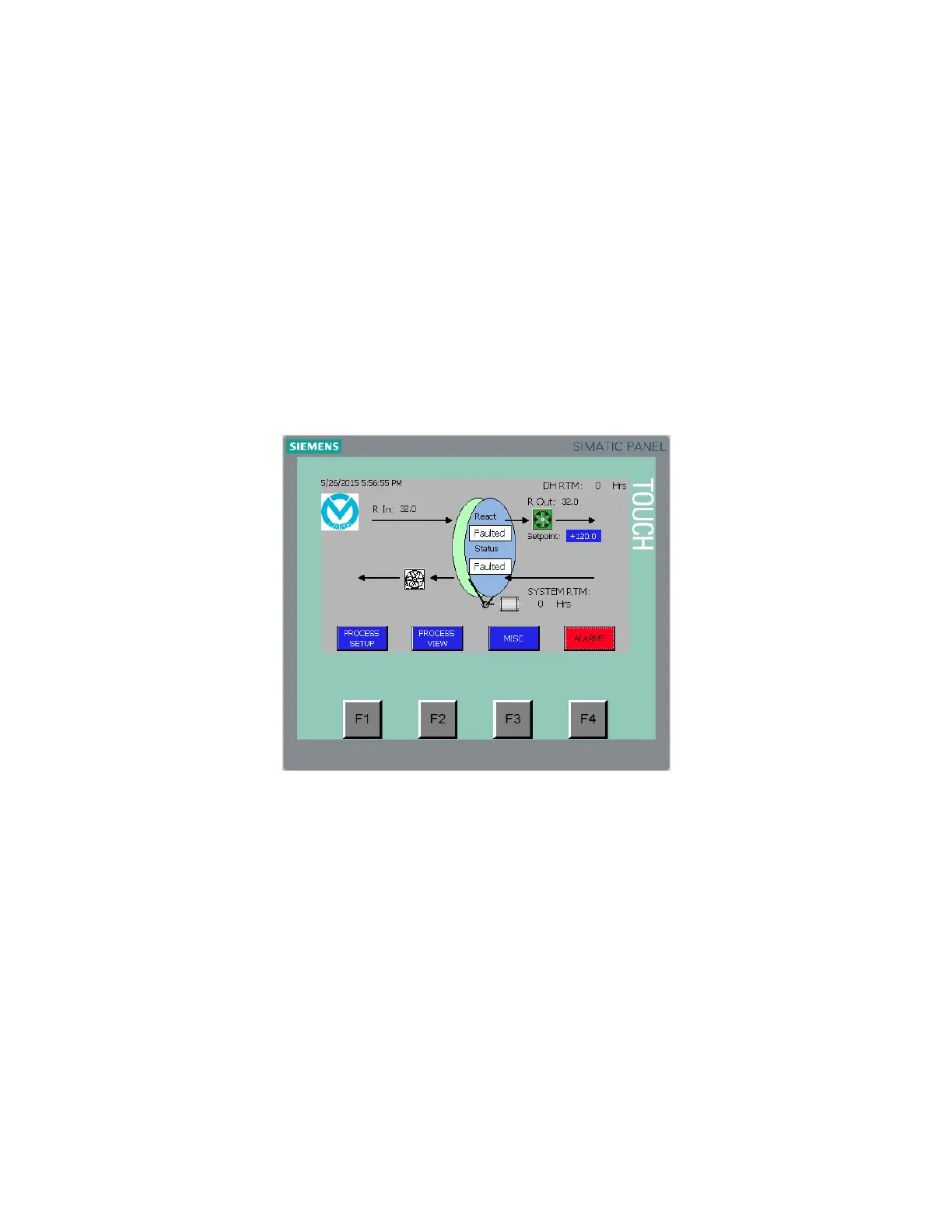

Figure 5-7
TYPICAL FAULT DISPLAY
2. To see the details on the fault or warning, press the ALARMS button. The figure
below shows the type of screen that the display might present.
To Next Page
