Manual#
I27028
3-5
Rev. 2 – 11/22/2017

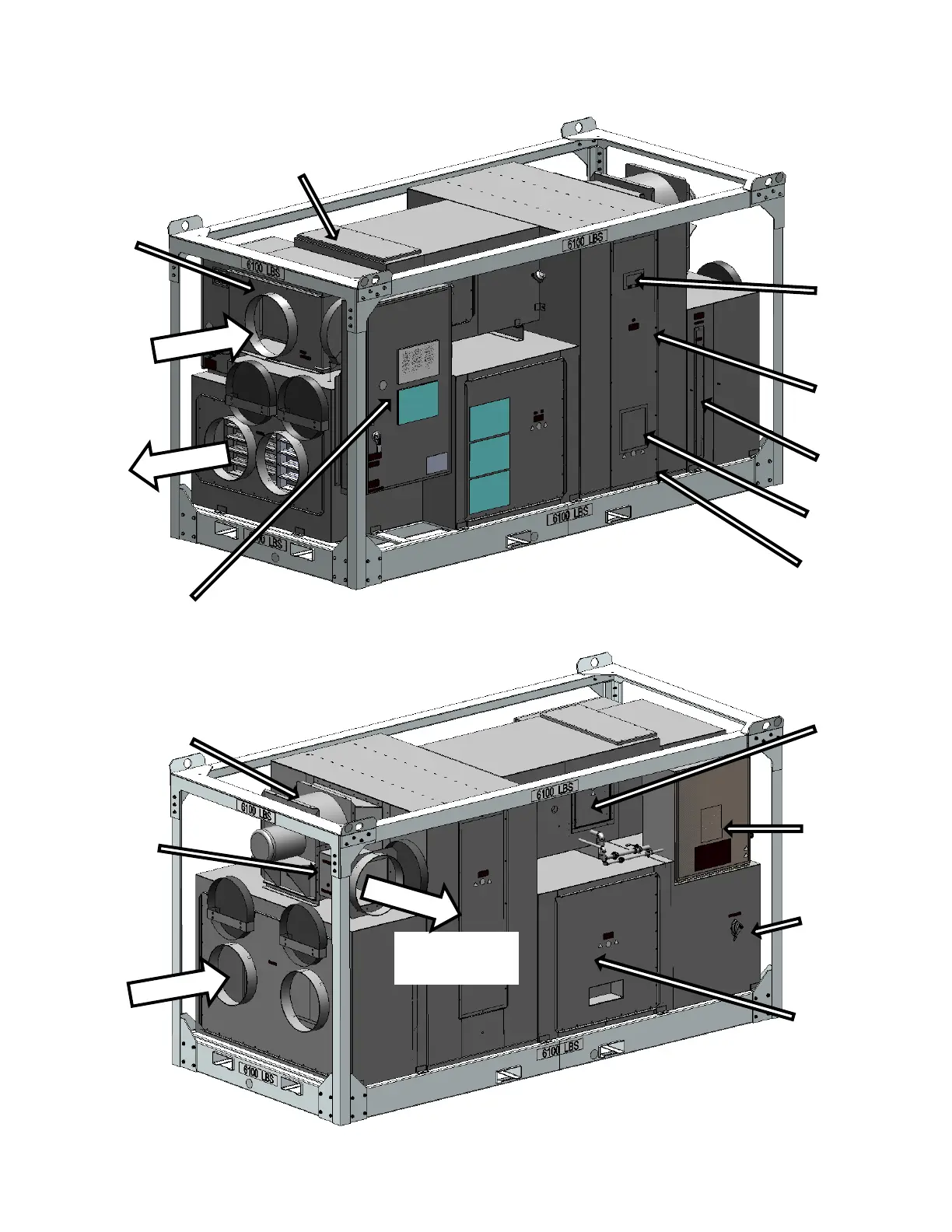

Figure 3-5
R10 UNIT – FRONT VIEW
Figure 3-6
R10 UNIT – REAR VIEW
Electric heaters
Ignition control
module, main
gas shut-off
valve, and gas
modulation
valve
Drive motor
(behind cover)
Inspection
wind
ow
Reactivation
blowe
r
Reactivation
dampe
r
Control panel
Process
blower
(behind cover)
Process
damper
REACTIVATION
AIR
IN
PROCESS
AIR
OU
T
PROCESS
AIR
IN
REACTIVATION
AIR
OU
T
Direct fired gas
burner
Reactivation air
filter access
(behind hinged
panel)
Process air
filter access
Process and
reactivation
pressure
gauges
HoneyCombe®
wheel and
seals
(behind access
panel)
16
18
Table of Contents
Default Chapter
6
Table of Contents
6
Chapter 1 - Revision History
8
Product View
9
Chapter 2 - Introduction
9
Identification System Used for the Model Number
10
Chapter 3 - Safety Notes
11
Chapter 4 - Principles of Operation
13
Dehumidifier Operating Principle
13
Complete Operating Unit View
14
About the R-Series Units
15
Parts Identification
16
Control System and Power Distribution
19
Energy Modulation
19
Lifting the Unit
21
Stacking the Units (Cage Option Only)
21
Positioning the Unit
21
Chapter 5 - Installation
21
Inspection
21
Connecting the Ductwork
23
Installation Inside Cool Space
24
Gas Connections
25
Electrical Connections
26
Connecting a Remote Humidistat (OPTIONAL)
27
Controls and Indicators
28
Chapter 6 - Operating Instructions
28
Starting the Unit
29
Auto Mode
29
Manual Mode
29
HMI Option
29
Adjusting the Process and Reactivation Dampers
30
Electric
30
Gas
30
Final Checks
31
Reacting to Alarms
31
Adjusting the Process BYPASS Damper (R15 ONLY)
31
Stopping the Unit
32
Long-Term Shutdown
33
Hmi (Option)
33
HMI - Checking the Reactivation Temperatures
34
HMI - Checking the the System and DH Run Time
35
HMI - Reacting to Alarms
36
Suggested Maintenance Schedule
38
Chapter 7 - Maintenance
38
Quick Maintenance Check
38
Checking the Reactivation Outlet Temperature
39
Cleaning the Air Filters
39
Removing and Replacing the Honeycombe Wheel
40
Inspecting the Honeycombe Wheel
41
Cleaning the Honeycombe Wheel
42
Inspecting the Seals
43
Changing the Seals
43
Inspecting the Blower Fans
44
Inspecting the Roller Wheels
44
Inspecting the Electronic Controls
45
Inspecting the Wheel Drive Motor (Chain Drive Systems)
45
Inspecting and Maintaining the Chain
46
Inspecting the Wheel Drive Motor and Belt (Belt Drive Systems)
47
Checking the Humidistat (Optional)
47
Burner Adjustment Procedure
48
Direct-Fired Gas Burner Assembly View
49
Gas Trains Arrangements
50
Air Wings View
52
Checking the Flame Rod
54
Checking the Spark Plug
54
Storage and Long-Term Shut-Down
54
Chapter 8 - Troubleshooting
55
Troubleshooting Guide
56
Checking the Power Distribution System
59
Checking the Heating Elements
59
Checking the Gas Modulation Valve
60
Checking the Airflow Switch
60
Checking the High Temperature Limit Switch
60
Checking the Flame Rod Sensor
61
Checking the Thermocouples
61
Troubleshooting Using the PLC
61
Checking the Humidistat (Optional)
61
Programmable Logic Controller (PLC) View
62
Terminal Block Wiring Instructions
64
Flow Data Sheet – Rental Units
66
General Arrangement Diagrams
67
Wiring Diagrams
72
Specifications
125
Spare Parts List
131
Lifting Instructions for Rental Units
141
