2. Enable Fan Rotation and Minimum Ventilation Cycle.
3. Go to Climate > Ventilation.

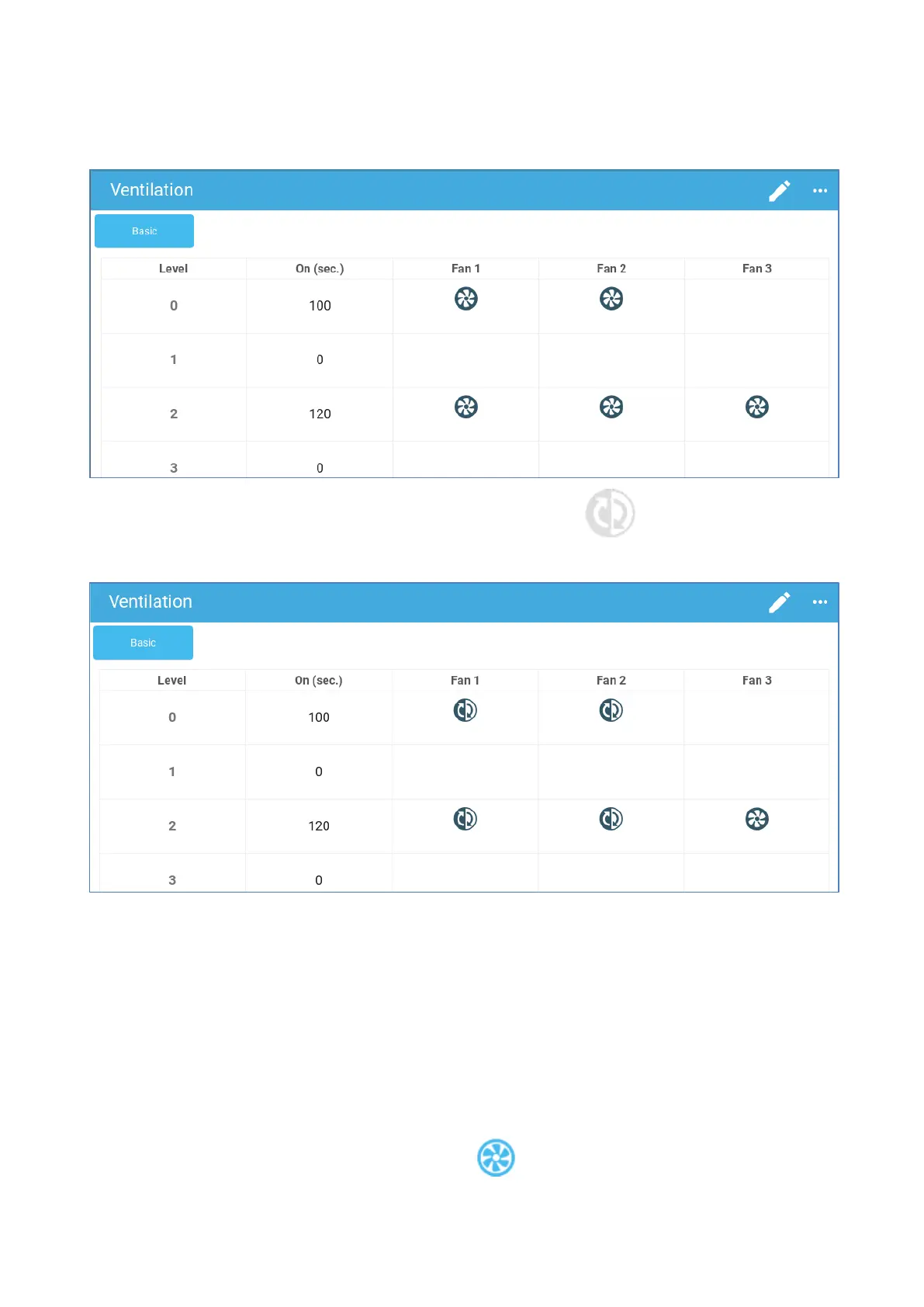

4. After enabling fans, click on any fan that you want to rotate. appears.
5. Click the icon. Repeat for any required fans.
In the above example, at level 0 Fan 1 rotates with Fan 2. At level 2, Fan 1 and 2 rotate while Fan
3 remains constant.
12.2.3 I
NLET AND
C
URTAIN
V
ENTILATION
In Basic Ventilation, TRIO enables control over the inlets using one of two methods:
•
Level Control
•
Static Pressure Control
NOTE
Outlet control is by level only.
To select the inlet control method:
1. Go to System > Control Strategy > Ventilation .
