7.5 Heating Devices
Define up to six relays and/or analogue output ports as heaters (refer to Mapping Devices,
page 50).
•
Defining the On/Off Heaters
•
Defining the Variable Heaters
7.5.1 D
EFINING THE
O
N
/O
FF
H
EATERS
•

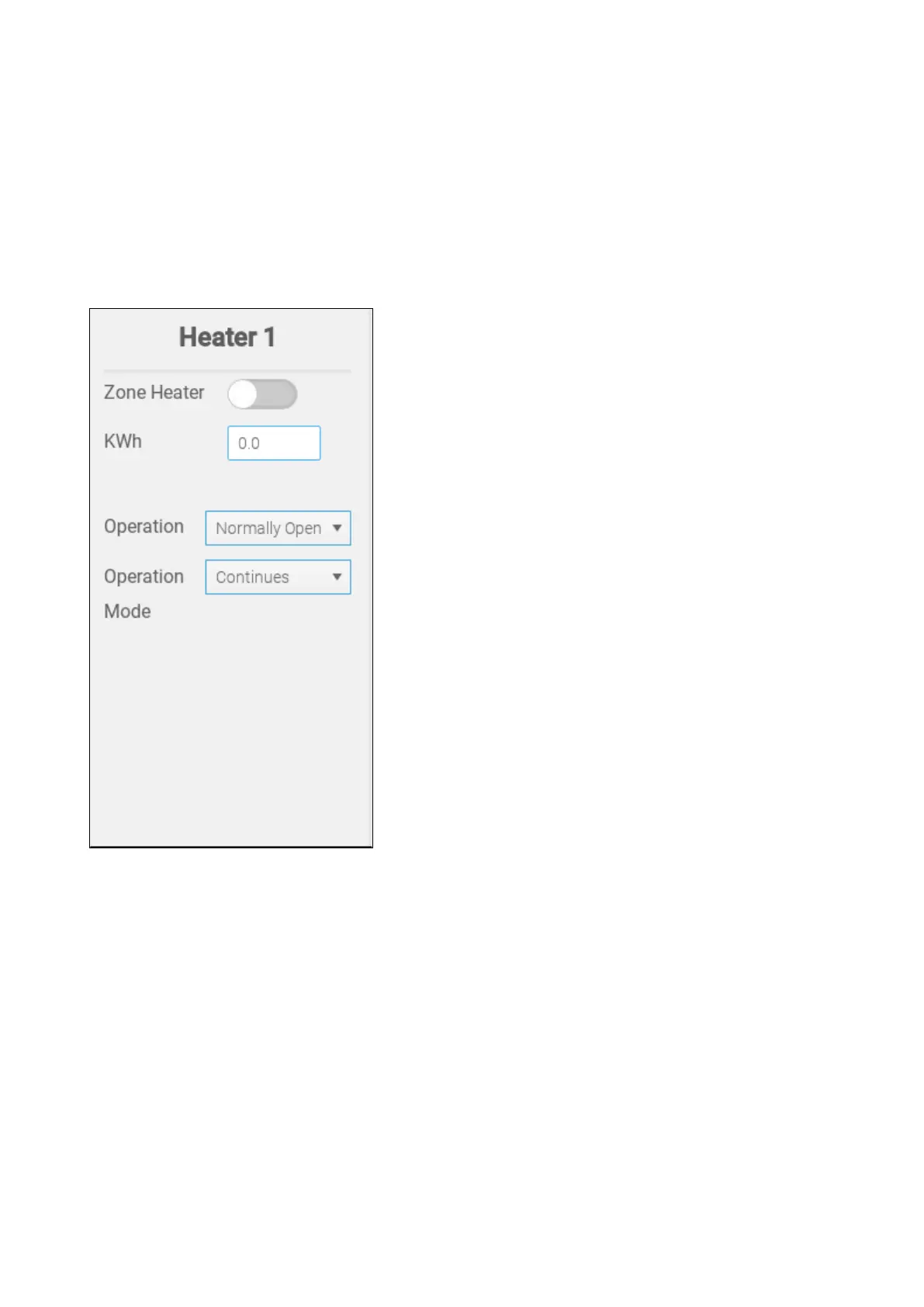

Define:
o
Zone Heater:
Disable (default): Central Heaters, the heater output is related to the target
temperature, these heaters operate according to the average temperature (no
temperature sensors can be assign to it).
Enable: Zone Heater, the heater output has its own target set-point and its own
sensors assign to it. Zone heater will enable the assignment of temperature
sensor/s in temperature definition.
o
Operation: Define the relay mode.
o
Operation Modes
Continues (default): The heater start to operate continuously
Cycle: This option enables the operation of heater in cycles.
