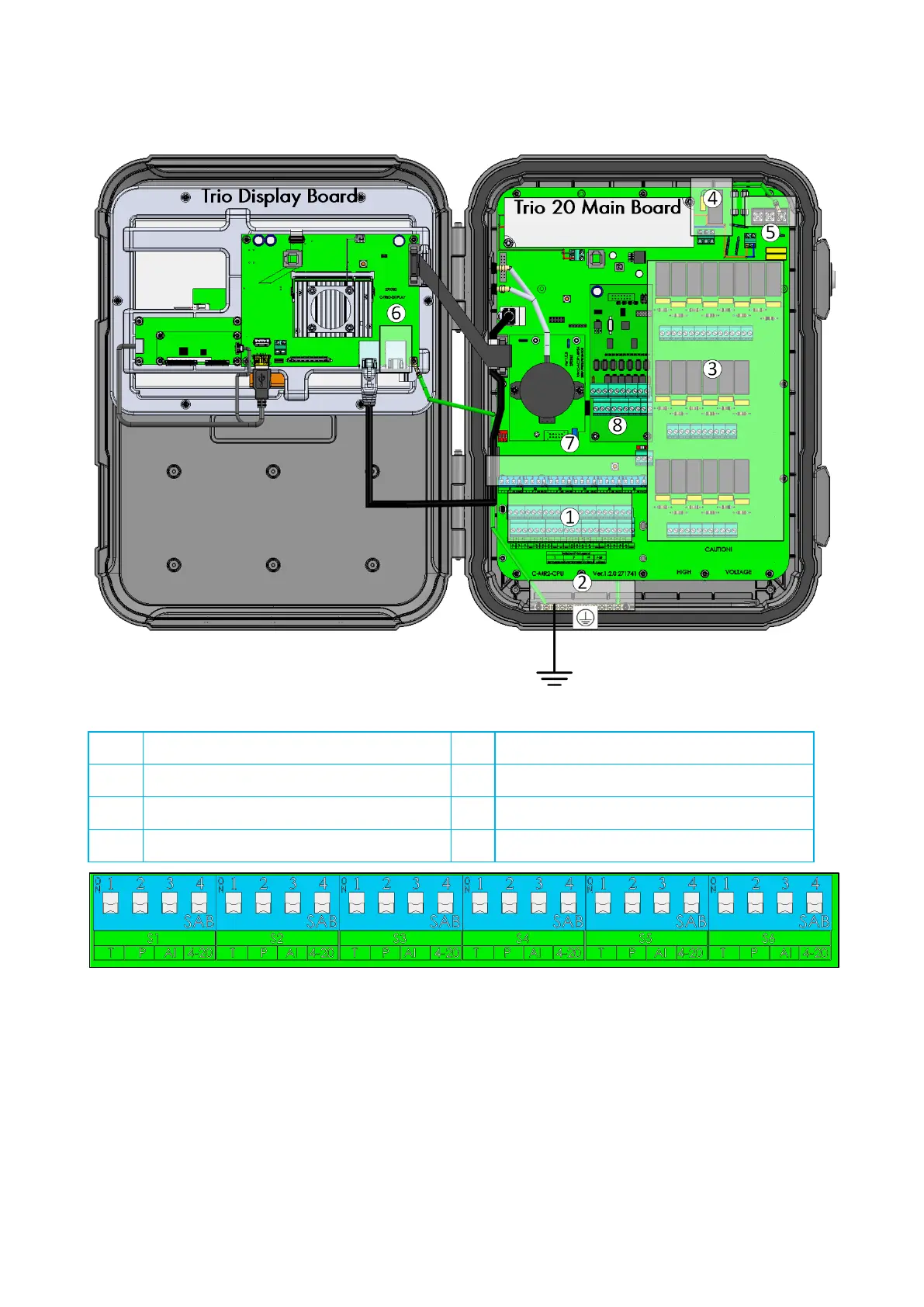

3.3 Layout
1
Analog/digital ports
5
Power ports
2
Ground strip
6
Ethernet port
3
20 relays
7
Dipswitches
4
Alarm relay
8
TRIO Scale Card
Figure 3: Dipswitches, expanded
•
One dipswitch only in each set is raised.
•
Only raise a dipswitch if a device is wired to an S port.
3.4 Wiring Diagrams
•
High Voltage Relays
•
Alarms and Power
•
Internet Connection
