3.4.6.3 Humidity Sensor Wiring

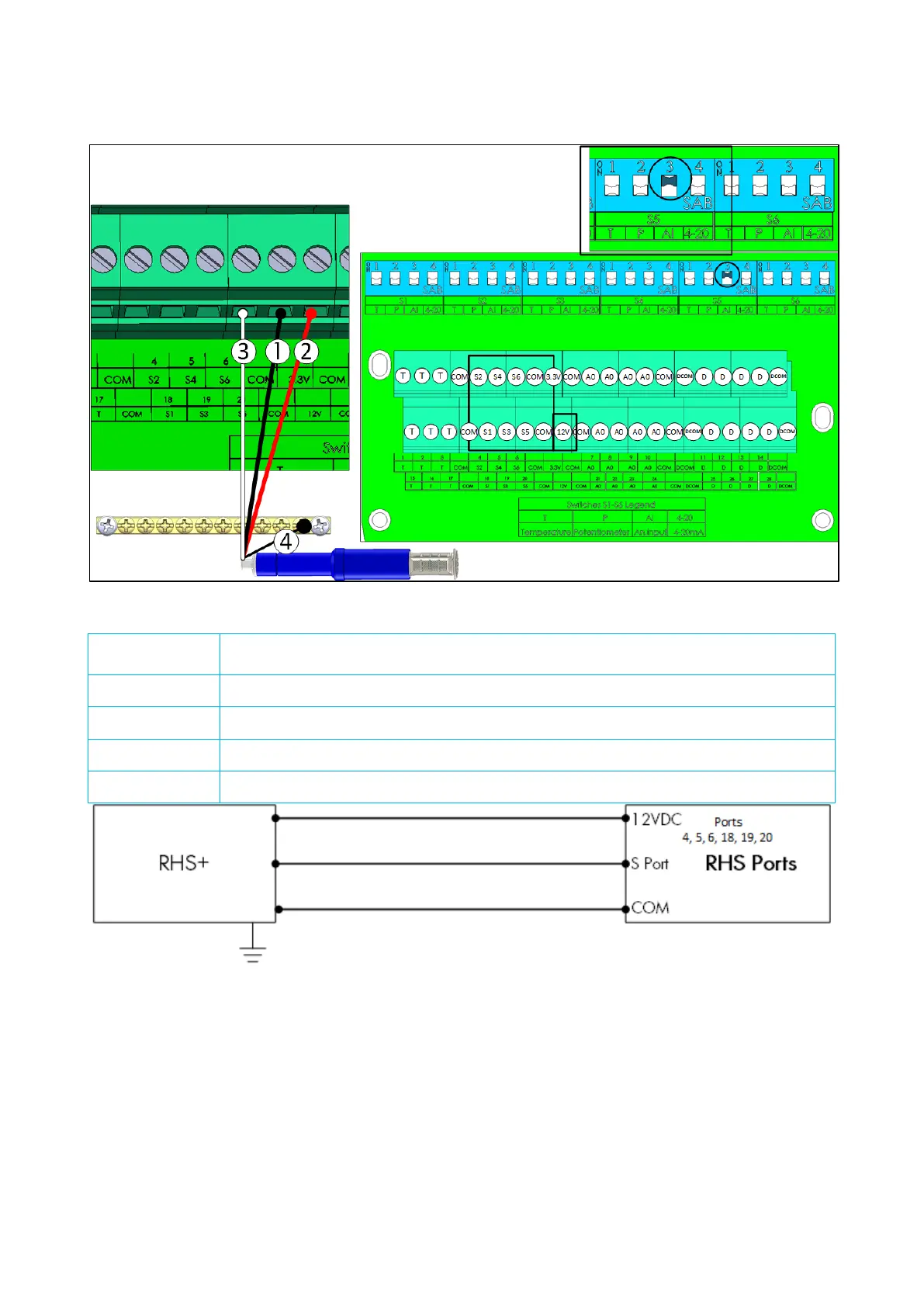

Figure 18: RHS+ Wiring
Number
Function
1 COM port (black wire)
2 12V (red wire)
3 S port (white wire)
4 Shield wire
Figure 19: RHS+ Sensor Wiring Schematic
•
Connect each RHS+ sensor to a:
o
S port. In the corresponding dipswitch, raise dipswitch 3 (analog input).
o
COM port.
o
12VDC port.
o
Grounding strip!
