3.4.7 TRIO RPS
TRIO RPS serves as a second static pressure sensor for the TRIO Controller. The following section details
the installation.
TRIO supports up to two static pressure sensors, one built in and one external. Install the RPS in the
second room.

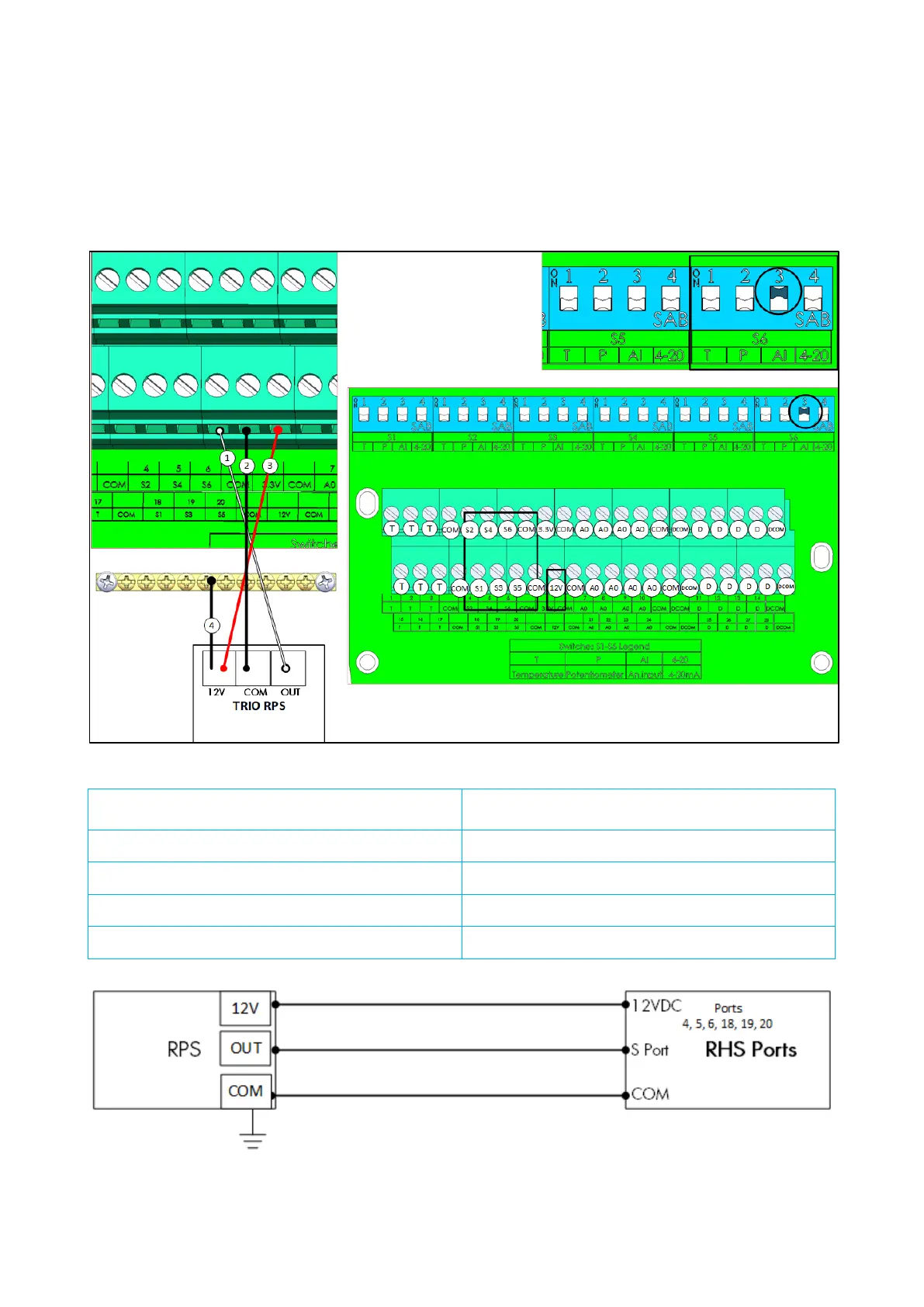

Figure 25: RPS Wiring
Number
Function
1 S port. Raise the corresponding S3 dipswitch.
2 COM port
3 12V
4 Shield wire
Figure 26: RPS Wiring Schematic
