3.4.8 B

IRD

CALES

If you install a scale card, perform a cold start. Refer to Cold Start, page 171.

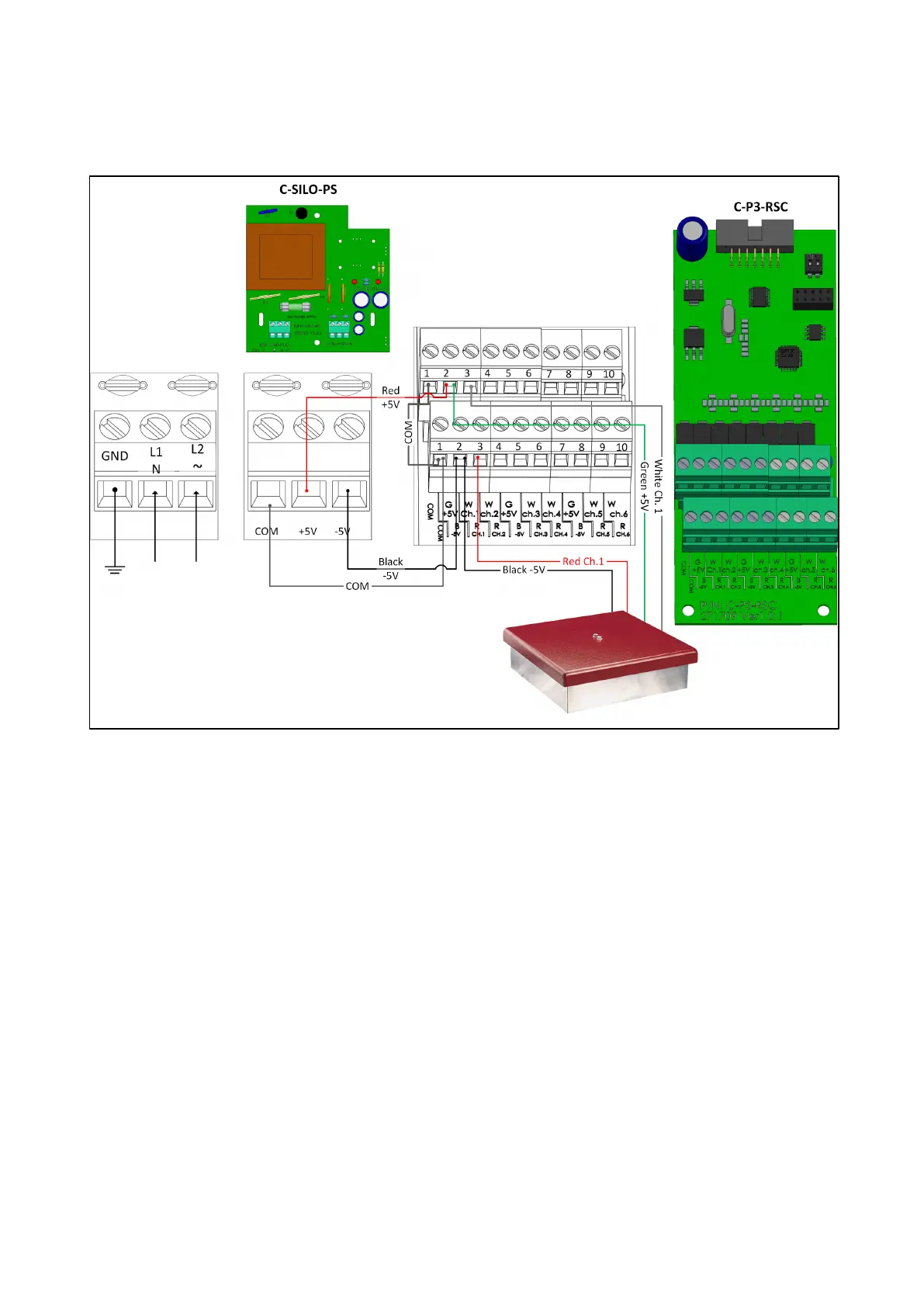

Figure 28: Scale Card wiring to Power Supply and Bird Scale
