7.3.1.2 0 – 10 Volt Fans

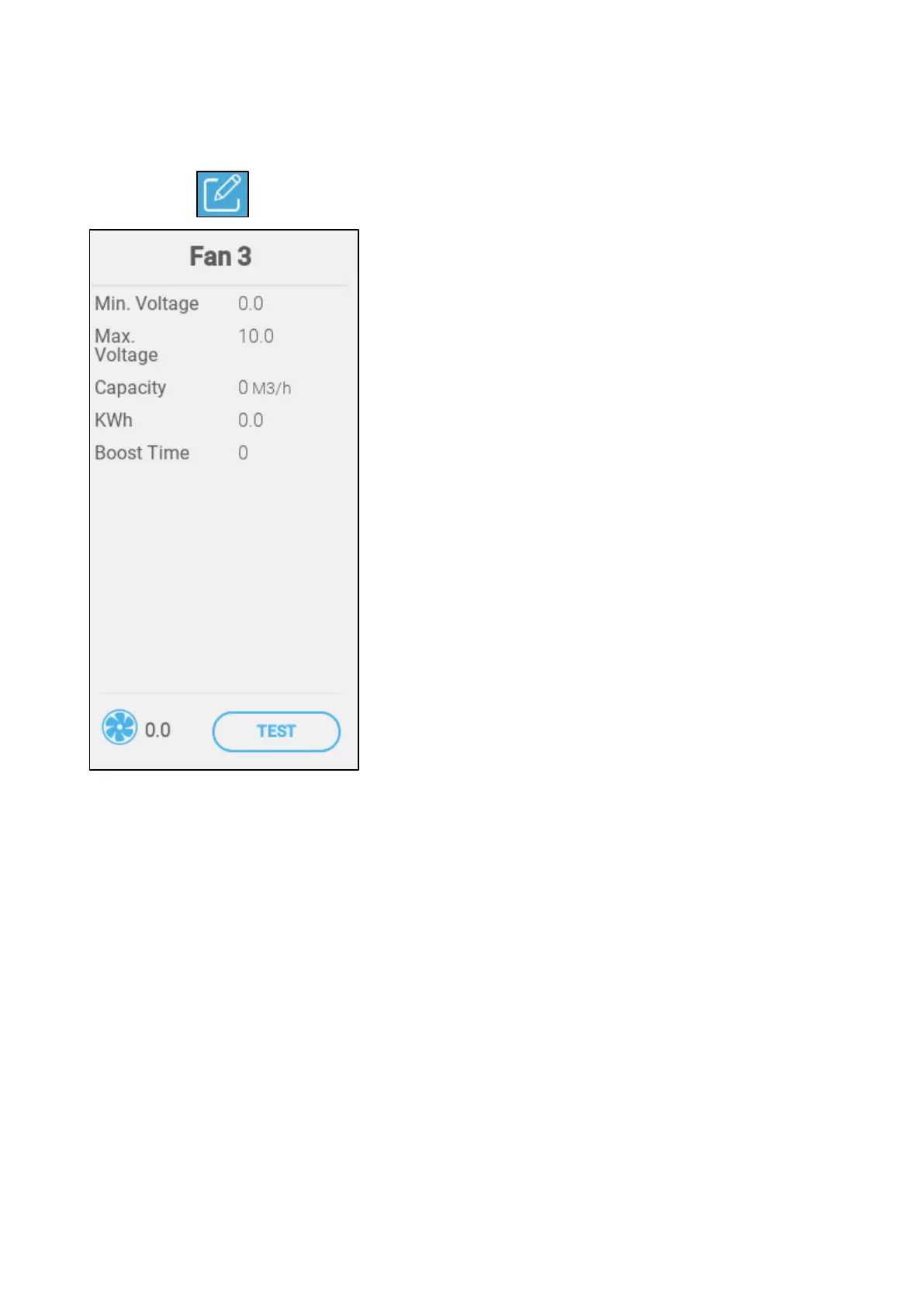

1. On the Device and Sensors screen, click a fan analog output port.
2. Click .
3. Edit the parameters.
o
Minimum/Maximum Voltage: Enter the minimal and maximal voltage used to calibrate
the fan speed.
o
Capacity: Enter the fan capacity.
o
KWh: This field displays the amount of kilowatts used. Read-only.
o
Boost Time: During this amount of time, the controller applied full power to the fan motor
(100%).
4. Click Save.
5. To test in the minimal and maximum voltages, click Test.
