System description
User manual 57106_hdb_en_13 13 / 94
3 System description
Overview The Cube20S system is a modular automation system mounted on a 35 mm
DIN rail in the control cabinet.
Using 2-, 4- and 8-channel expansion modules, you can adapt this system ex-
actly to your automation tasks.
You do not need much wiring because the 24 V DC power supply is integrated
in the backplane bus. Defective electronic modules can be replaced without
having to replace the wiring.
The use of power modules with different colors allows you to define further po-
tential ranges for the 24 V DC power supply within the system or expand the
electronic supply by 2 A.

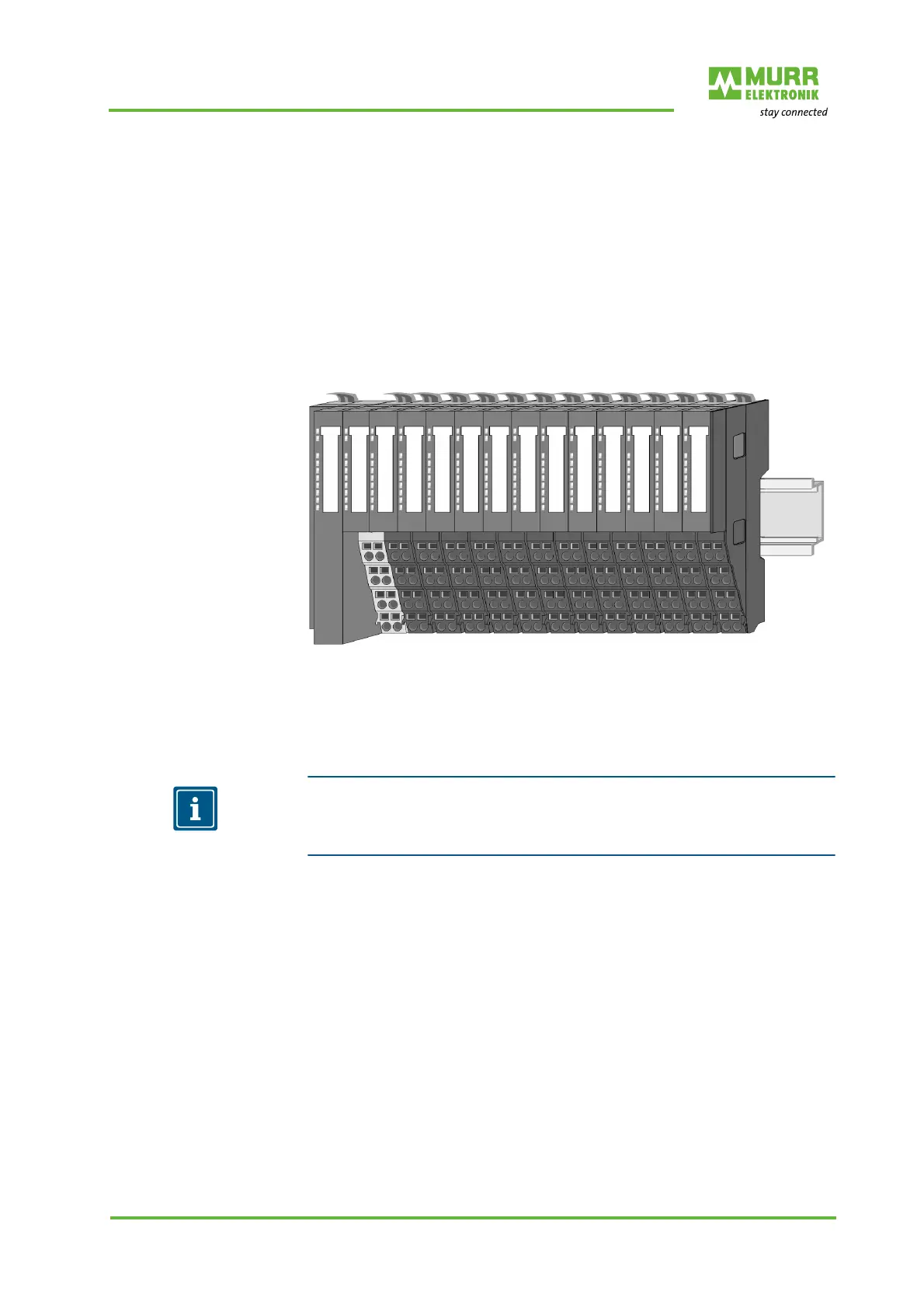

Fig. 3-1: Cube20S system
Components The Cube20S system consists of the following components:
 Bus node
 Expansion modules
 Accessories
NOTE
The use of the Cube20S system is only permitted with a combination of mod-
ules from Murrelektronik. Operation together with modules of other manufac-
turers is impermissible!
