11.5 Web server
NOTE
The power and terminal modules have no type identification. They are not rec-
ognized by the bus node and not considered in the list or assignment of slots.
11.5.1 Access via IP address
Setting options In the as-delivered state, the PROFINET IO device does not have an IP ad-
dress. In order to access the web server, you have to assign the IP address
data to it.
IP address data setting options
1 | Address switch:
Activate the DHCP client via DIP switch 1 of the address switch and re-
quest an IP address from your DHCP server in the network.
2 | DCP tool
Assign IP address data by means of a DCP tool.
3 | IO controller
Assign IP address data via an IO controller. It allows you to access the web
server and change the IP address data accordingly.
11.5.2 Structure of the web server
The web page is structured dynamically and depends on the number of mod-
ules connected to the PROFINET IO device.
1 | Module list:
PROFINET IO device and Cube20S modules in the order they are
plugged in
2 | Functions for the module selected in the module list
3 | Information and input field for the corresponding function
NOTE
For fast diagnostic, the missing or incorrectly configured modules are shown
in red letters in the module list after refreshing the web page.

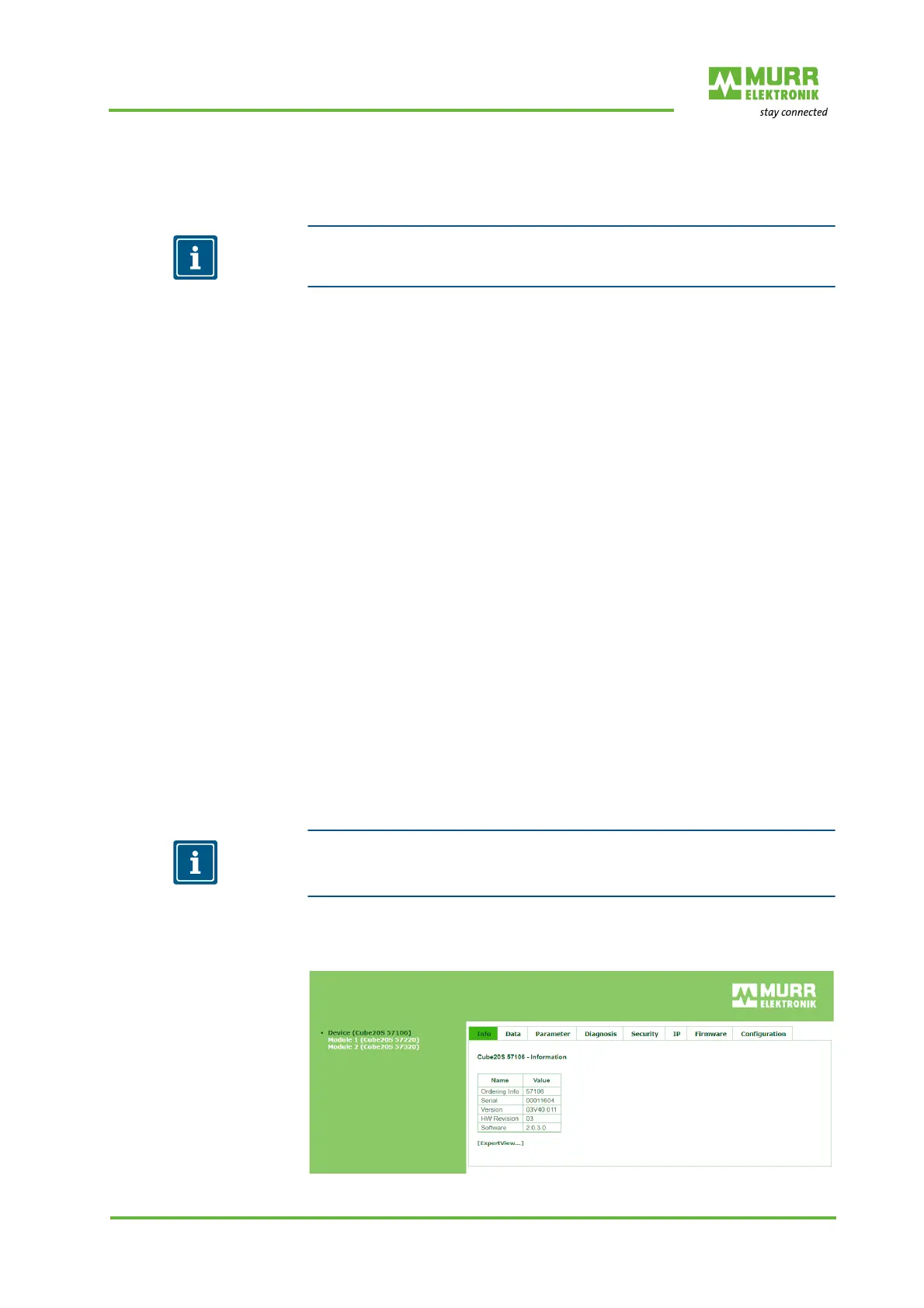

11.5.3 Web page with selected PROFINET IO device
Fig. 11-2: Web page with selected PROFIBUS IO device
