Mounting
User manual 57106_hdb_en_13 22 / 94

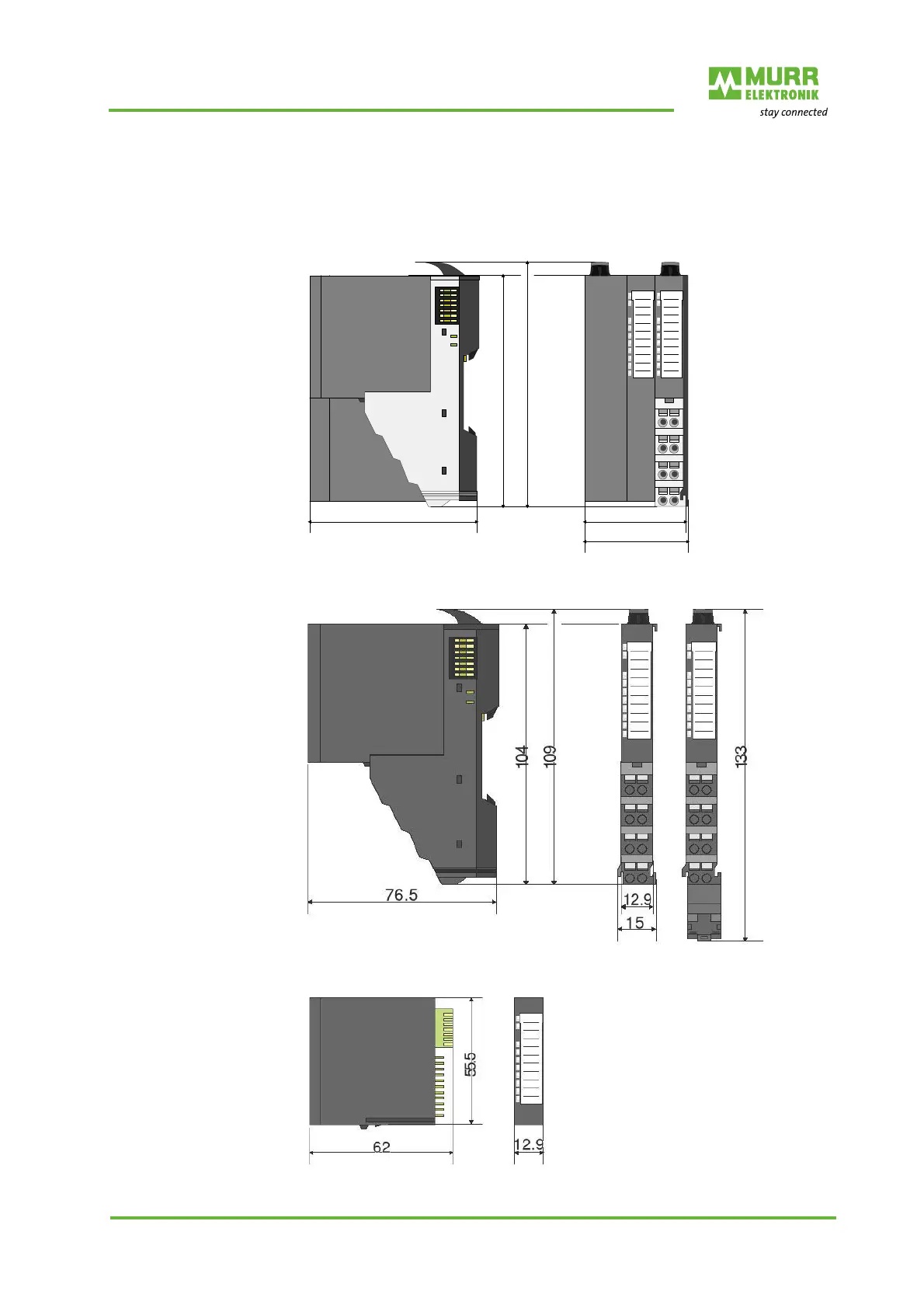

6 Mounting
6.1 Dimensions
Dimensions of the bus
node
Fig. 6-1: Dimensions of the bus node in mm
Dimensions Expansion
module
Fig. 6-2: Dimensions of the expansion module in mm
Dimensions of the elec-
tronic module
Fig. 6-3: Dimensions of the electronic module in mm
1
0
4
1
0
9
76.5
46,2
49
,2
