Mounting
User manual 57106_hdb_en_13 30 / 94
6.8 Installing the shield bus carrier
Carrier for shield busses art. no. 57191
The shield busses (10 mm x 3 mm) for connection of cable shields are fas-
tened to the carrier.
NOTE
Carriers for shield busses, shield busses and cable shield fasteners are not
included in the scope of delivery.
Installing the carrier Prerequisite: The Cube20S system has been completely mounted.
If the DIN rail is flat, break the spacer off the carrier.
Plug the carrier into the terminal module below the terminal block until it
engages.

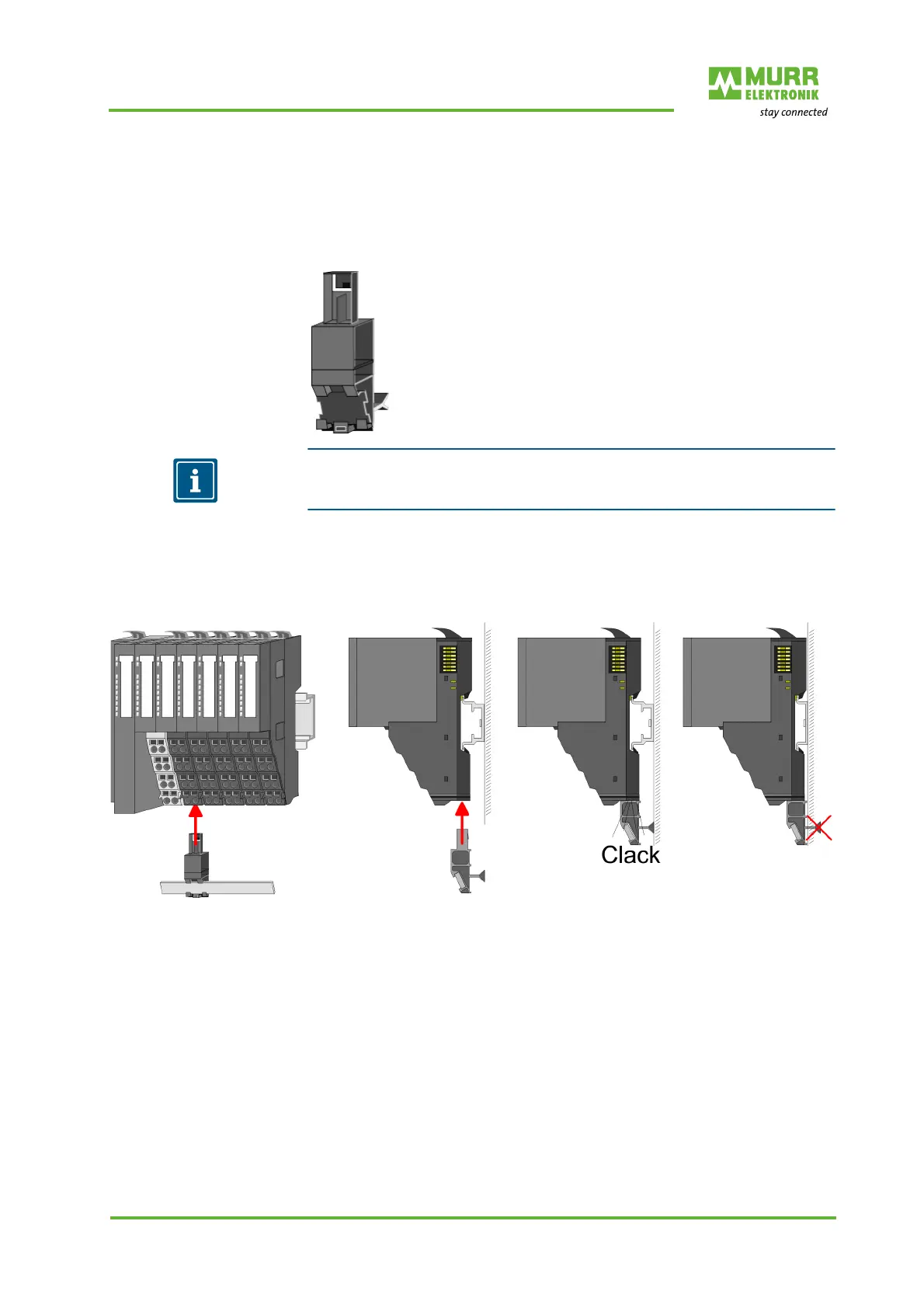

Fig. 6-10: Installing the carriers for shield busses
