6.7 Installing the bus cover
Protection of the bus contacts by means of the bus cover
Placing the bus cover on the expansion module
Prerequisite: The system has been completely mounted.
Attach the bus cover to the outermost module.
Placing the bus cover on the terminal module
Prerequisite: The system has been completely mounted.
Break the front part off the bus cover.
Attach the bus cover to the terminal module.

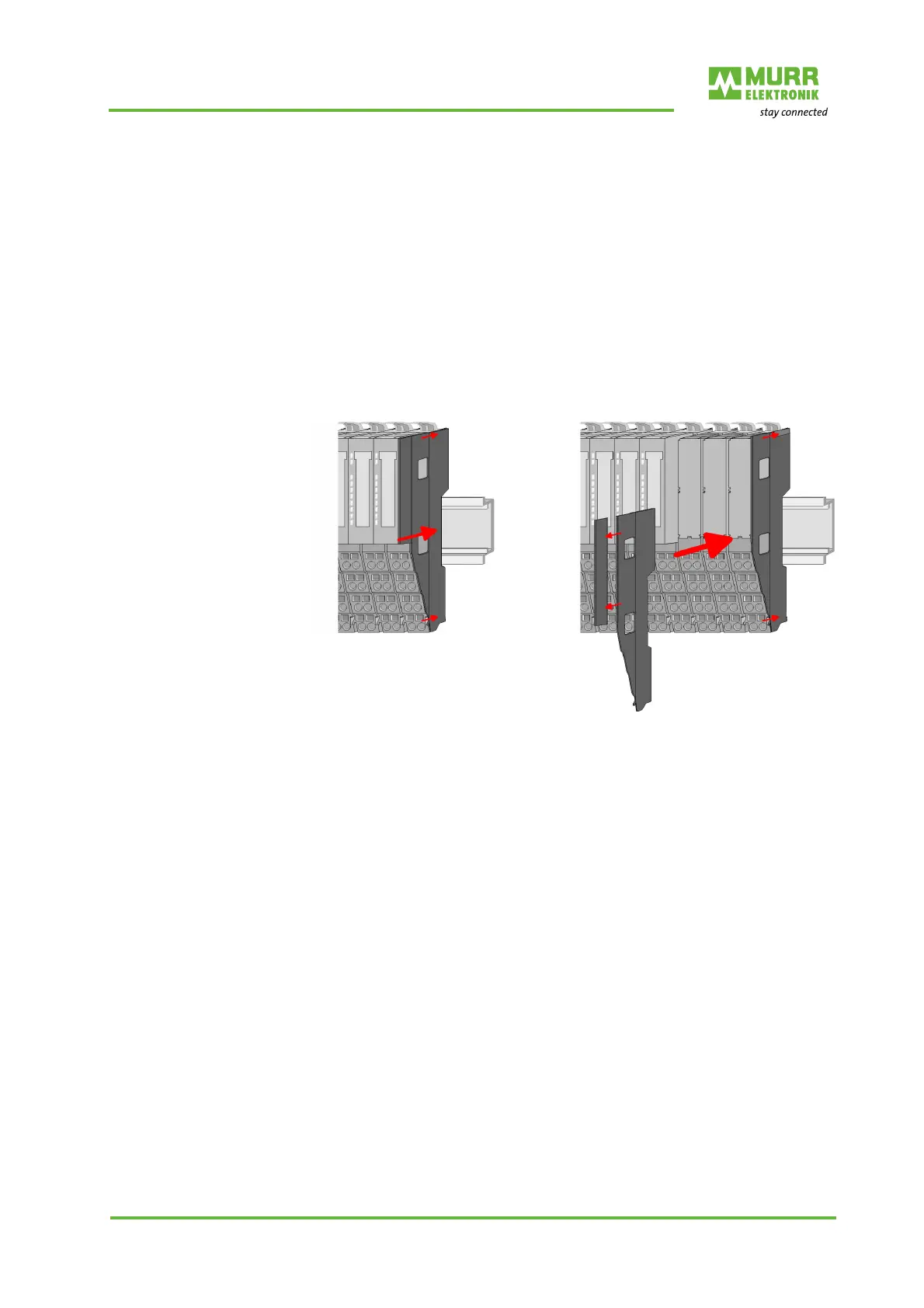

Fig. 6-9: Installing the bus cover
