Installation
User manual 57106_hdb_en_13 46 / 94
Bus node and I/O mod-
ules
External fuse-protection of electronics supply, bus node and I/O mod-
ules
 Externally fuse-protect the electronics supply for bus node and I/O level
with a fuse corresponding to the maximum current!
 For up to 10 A use:
 A 2 A fuse (fast)
or
 a 2 A circuit breaker of characteristic Z
or
 MICO load circuit monitoring,
e.g. MICO 4.6, Art.-No. 9000-41034-0100600
8.7.3 Fuse-protection with MICO circuit breakers
External fuse To protect the power supply, Murrelektronik provides a number of circuit break-
ers. They can be found under the product name MICO on the internet
www.murrelektronik.com.
MICO-variants for intel-
ligent current monitor-
ing
 MICO monitors currents
 MICO signals limit loads
 MICO detects overloads
 MICO enables flexibility
MICO 4-channel

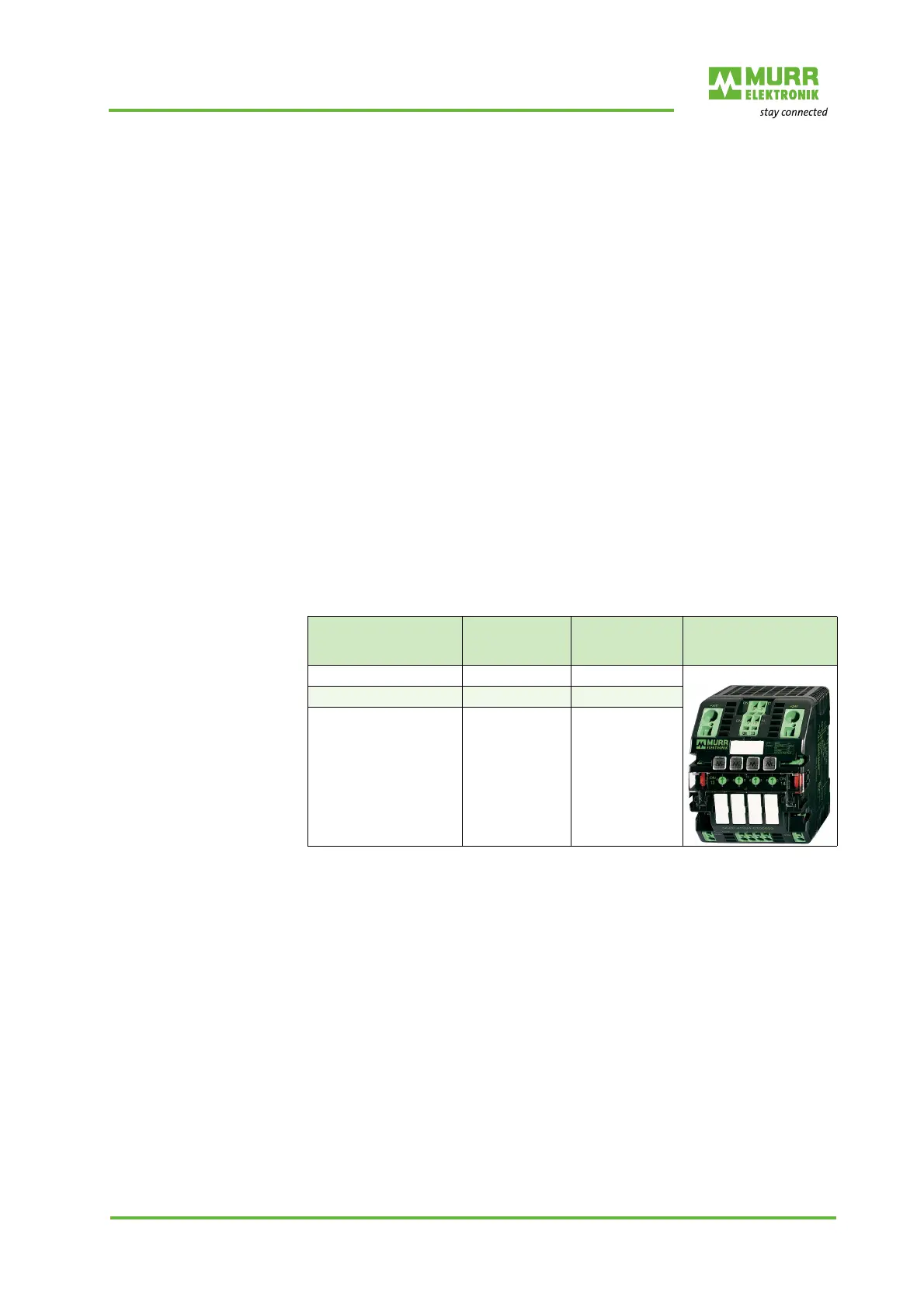

Tab. 8-1: MICO load circuit monitoring, 4 channels
Art. no. Designation Rated operat-
ing branch cur-
rent [A]
Figure: MICO 4.6
9000-41034-0100400 MICO 4.4 1-2-3-4
9000-41034-0100600 MICO 4.6 1-2-4-6
9000-41042-0401000 MICO 4.10 4-6-8-10
