Disassembling and replacing modules

User manual 57106_hdb_en_13 34 / 94

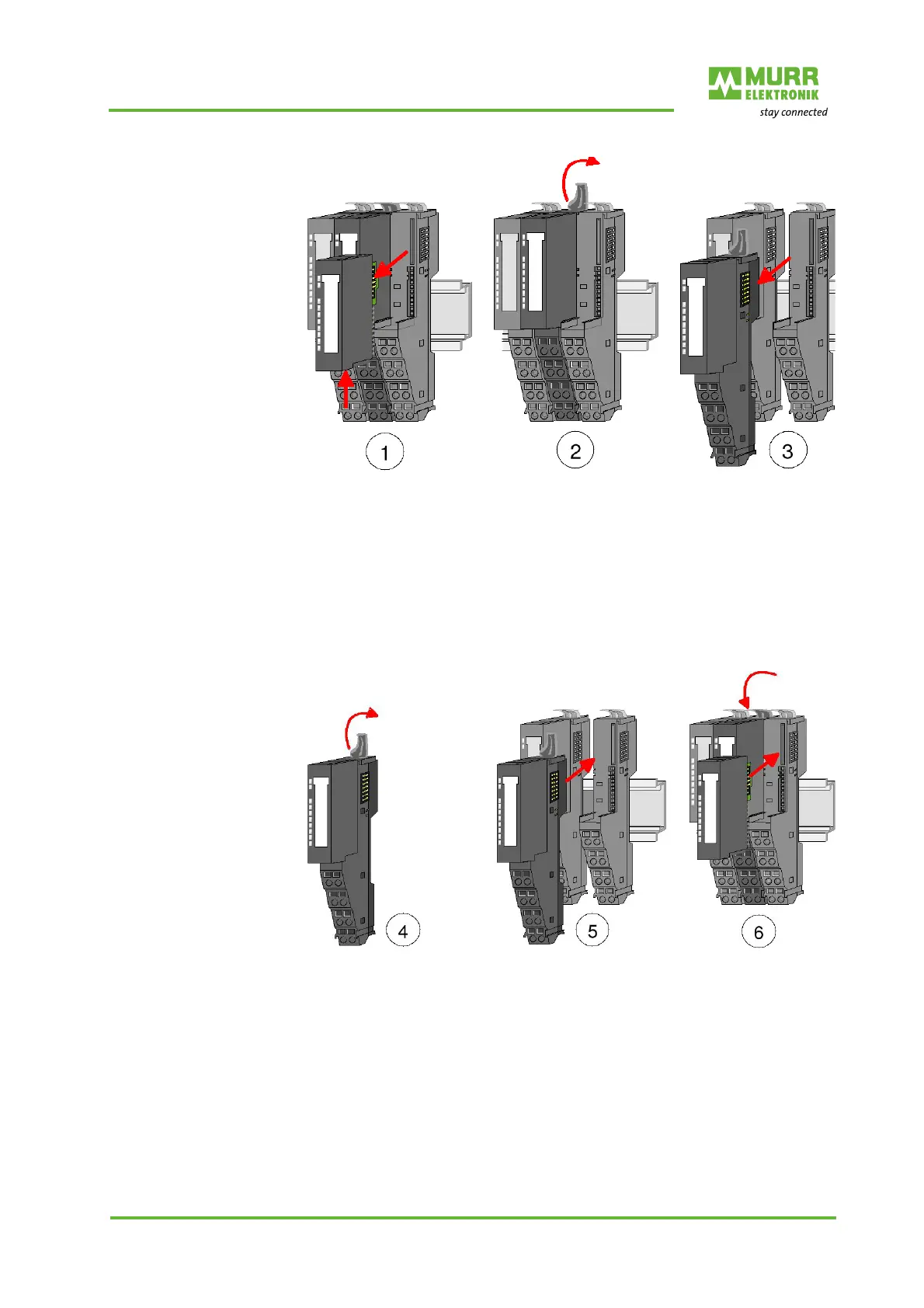

Fig. 7-3: Disassembling a module

Installing the new mod-

ule

1 | Flap the locking lever of the module upwards.

2 | Plug the module in the gap between the modules.

3 | Slide the module with the help of the guide strips at both sides onto the

DIN rail.

4 | Flap the locking lever of the module downwards.

5 | Plug in the electronic module.

Now you can bring your system back into operation.

Fig. 7-4: Installing the new module
