Installation

User manual 57106_hdb_en_13 48 / 94

Connecting power module Art.-No. 57130

 Plug in a power module.

 Then, plug in modules with a maximum total current of 2 A in the back-

plane bus.

 Afterwards, you have to plug in another power module.

Power module art. no.

57131

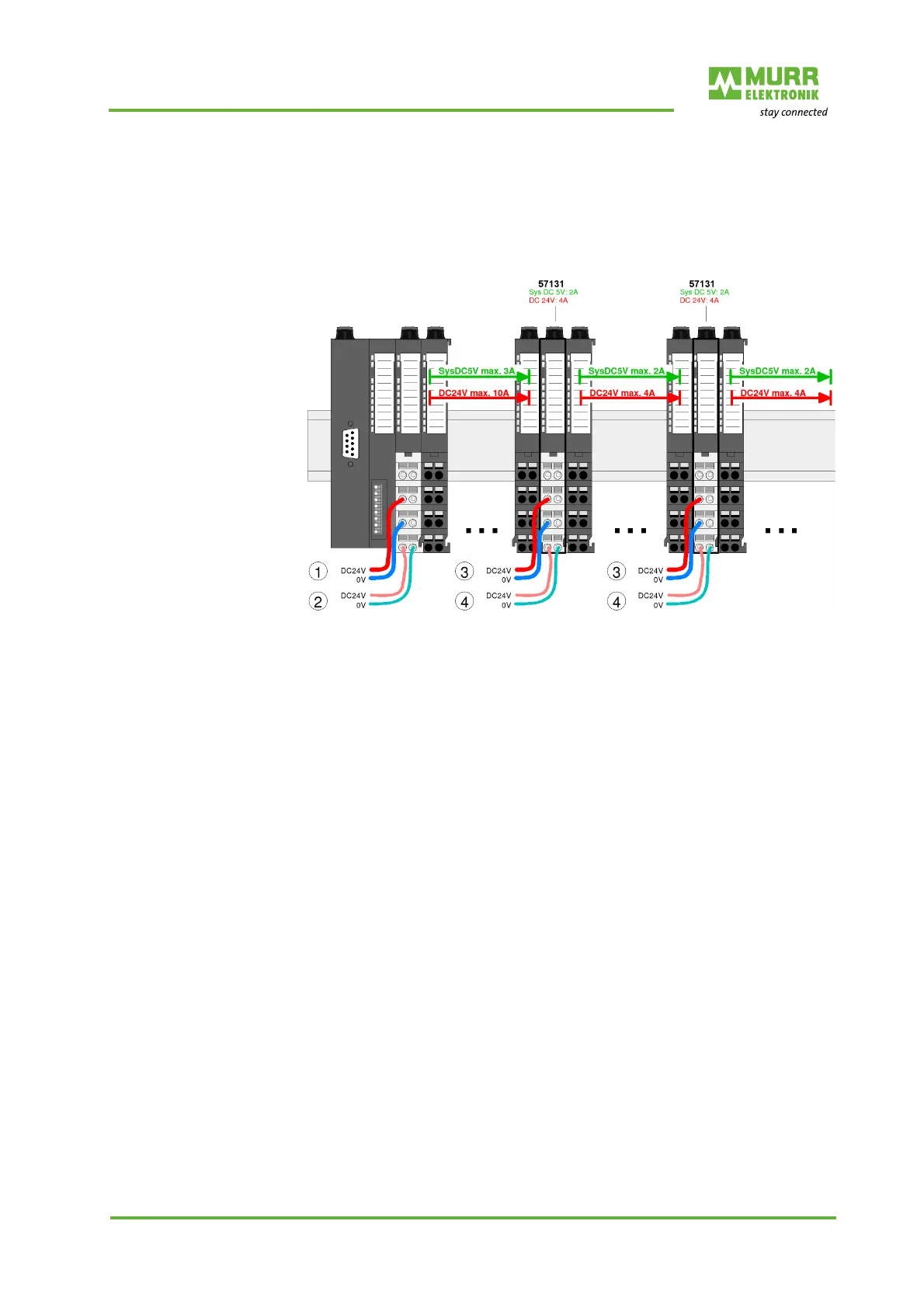

Fig. 8-12: Power module art. no. 57131

1 24 V DC for power supply of I/O level (max. 10 A)

2 24 V DC for electronics supply, bus node and I/O level

3 24 V DC for power supply of I/O level (max. 4 A)

4 24 V DC for electronics supply, I/O level
