Configuration/settings
User manual 55170_hdb_en_13 104 / 145
Setting parameters on
the bus connections
When establishing a conventional connection, the individual PNIO devices
negotiate connection parameters and this causes a delay.
To prevent this delay, fixed connection parameters need to be defined for each
port (that participates on the FSU).
Select Port 1 and Port 2 in the properties for the module, and set the cor-
responding parameters there.

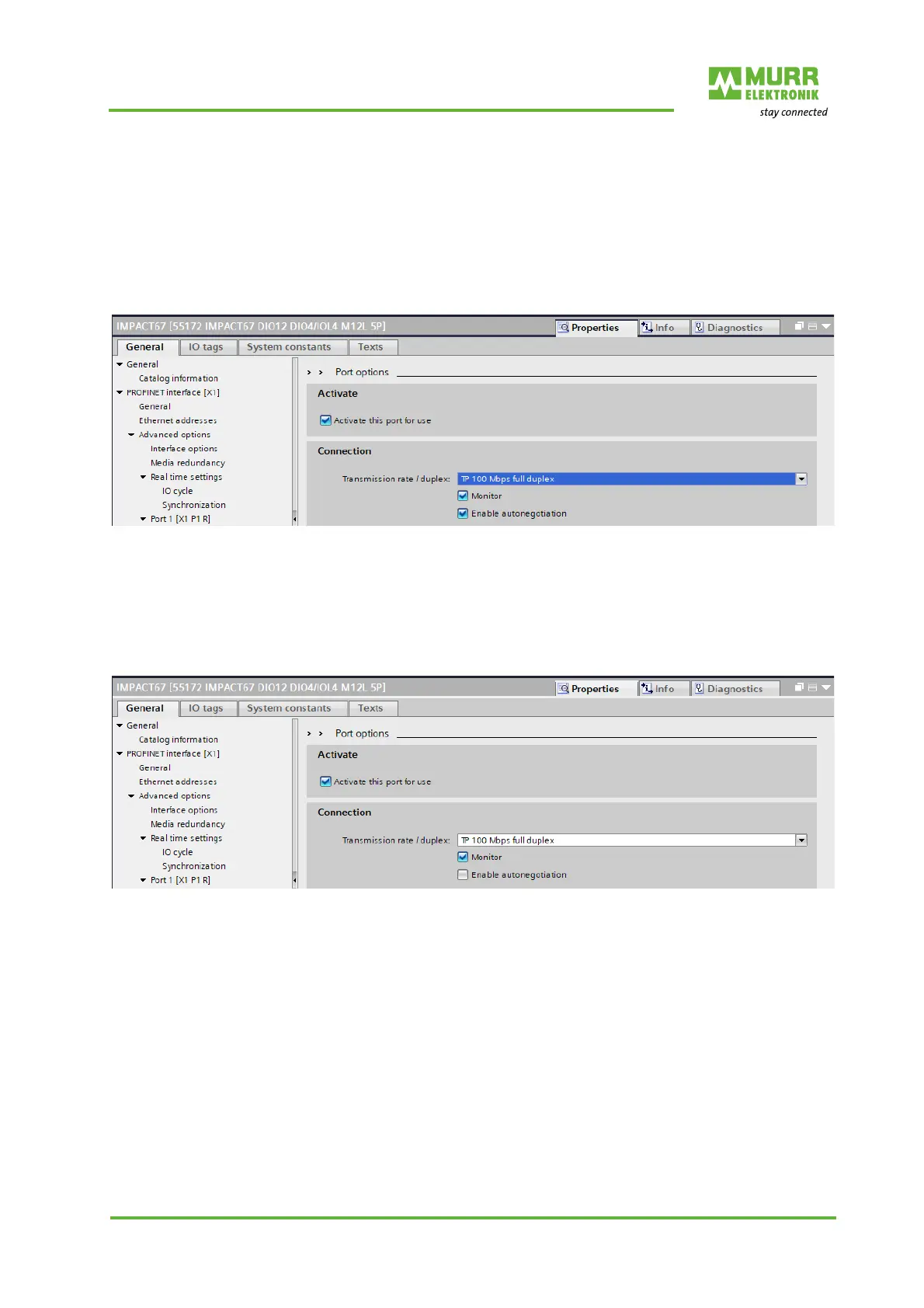

Fig. 8-34: Setting transfer rate / duplex
Set the transfer rate/duplex to TP 100 Mbit/s full duplex.
This dispenses with the time-consuming negotiation of connection parameters
when the module is started.
Fig. 8-35: Disable auto-negotiation
Auto-negotiation must be disabled.
This dispenses with time-consuming negotiation of connection core pairs
when the module is booted.
This completes the settings required for using FSU for the IMPACT67.
