Mounting
User manual 55170_hdb_en_13 33 / 145
5 Mounting
5.1 Requirements
Conditions for mounting:
Even mounting surface to avoid mechanical tension
Provide suitable grounding
Suitable installation site in terms of vibration and shock load, temperature
and humidity (see chap. 4 "Technical Data" )
Protected to avoid tearing off the connecting cables by personnel or de-
vice
5.2 Dimensions

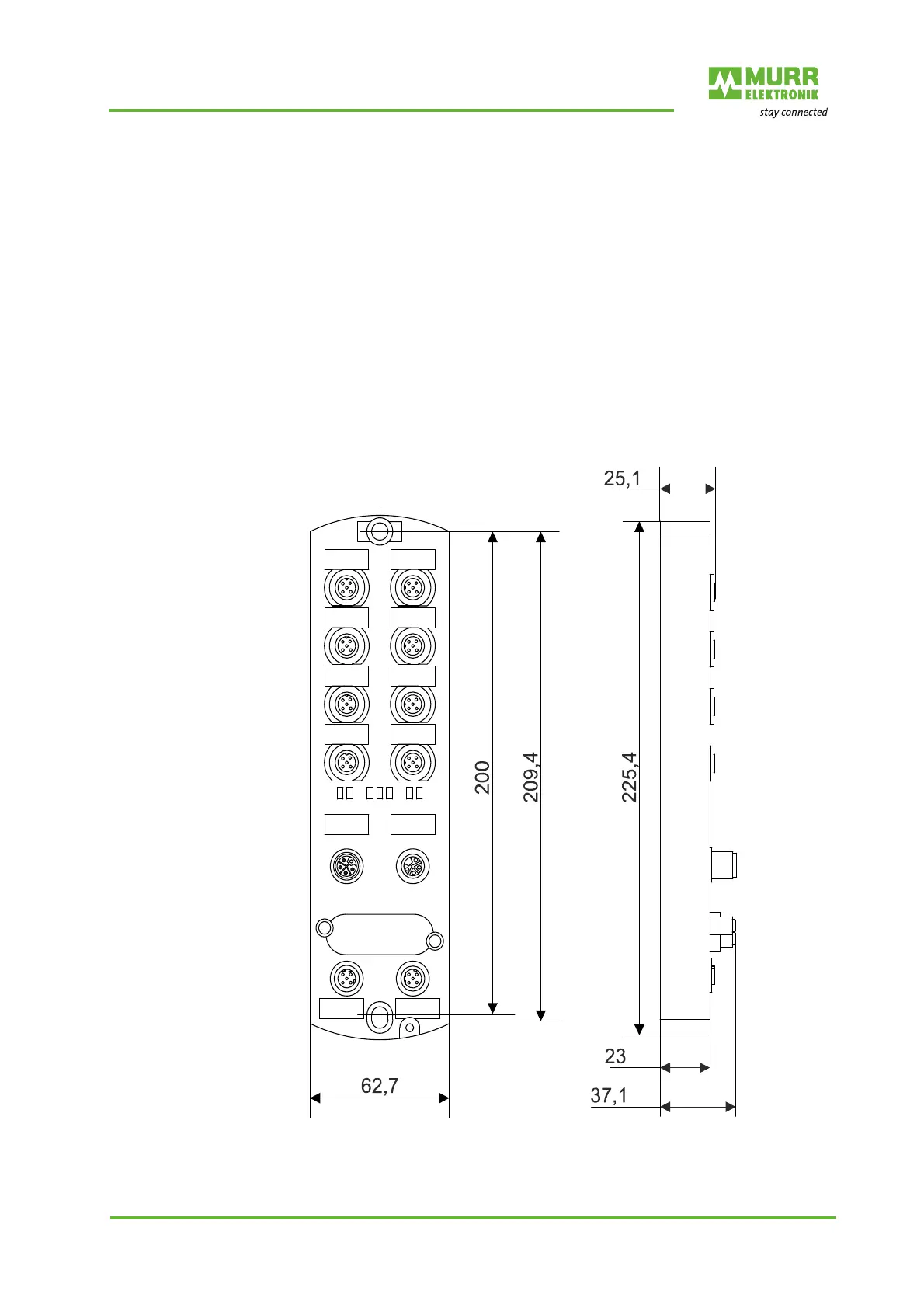

Fig. 5-1: Dimensions in mm
