Configuration/settings
User manual 55170_hdb_en_13 66 / 145
8.2.4 General parameters
Pin/Port-based
IO-Layout

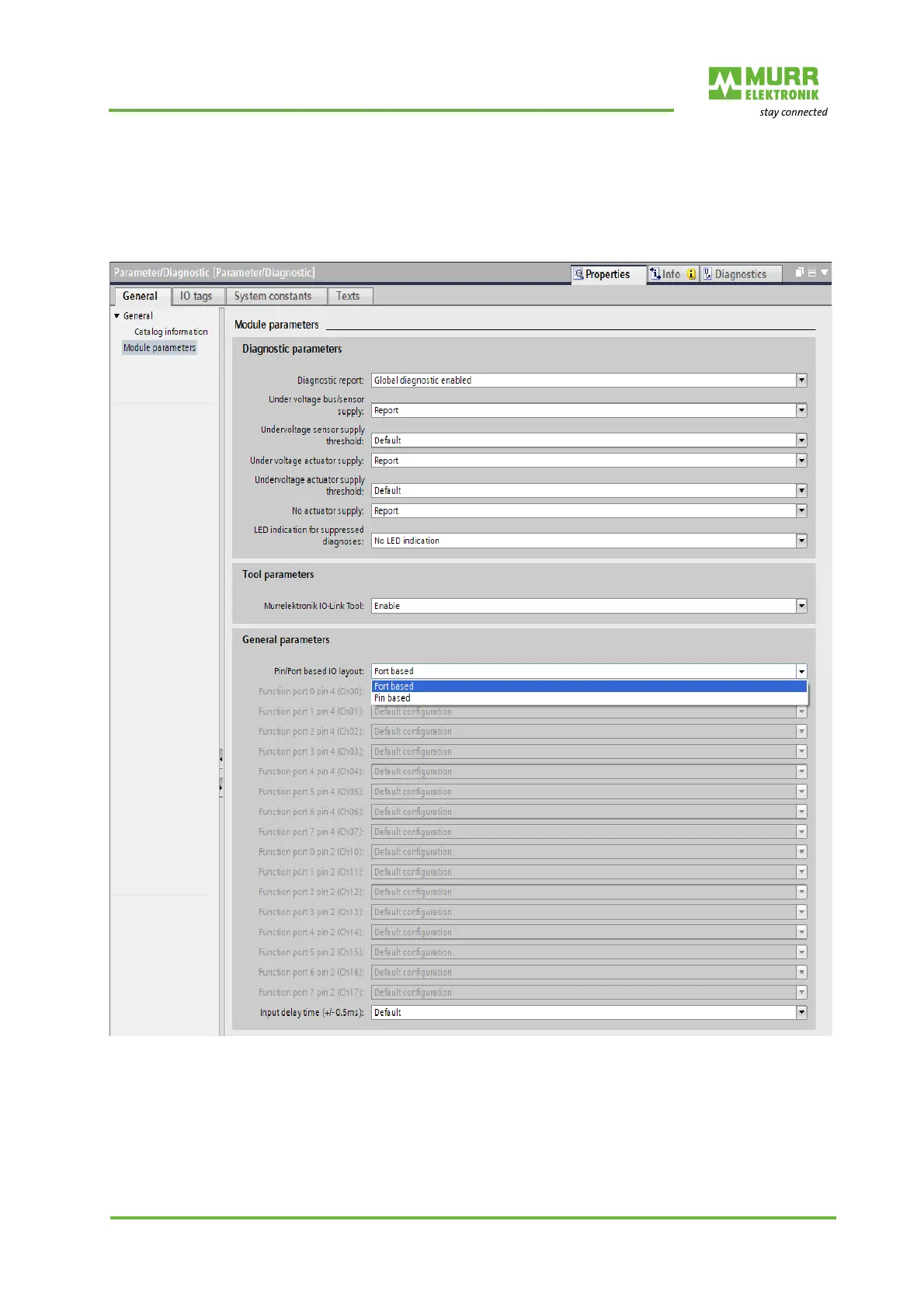

Fig. 8-13: Pin/port-based IO layout
