User manual 55170_hdb_en_13 24 / 145

3.6.2 Display elements

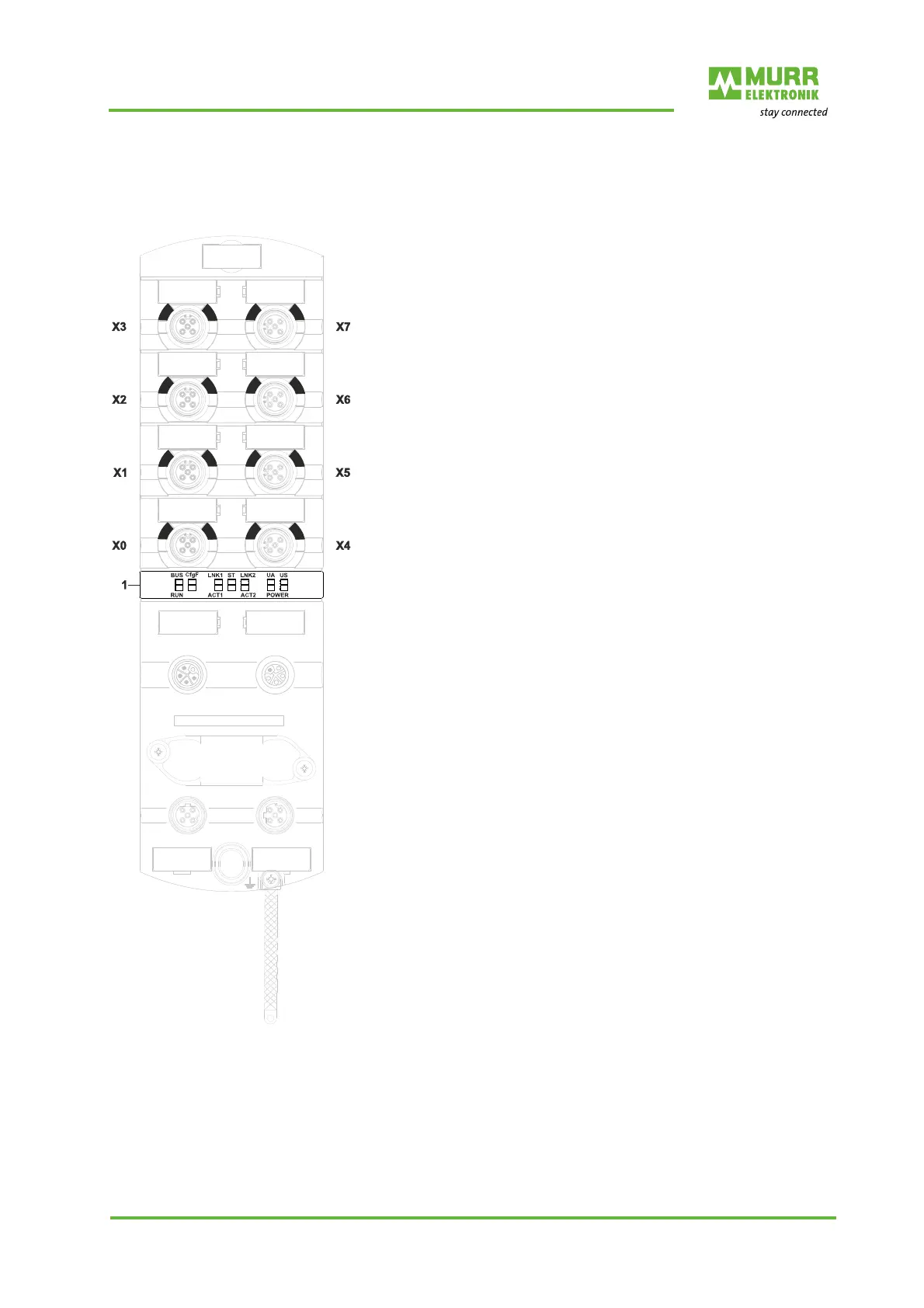

Fig. 3-9: Modul structure

Art.-No. 55150

Art.-No. 55170

X0 ... X7 LED digital inputs and digital outputs

Art.-No. 55151

Art.-No. 55171

X0 ... X5 LED digital inputs and digital outputs

X6, X7 LED digital inputs and digital outputs

or IO-Link

Art.-No. 55152

Art.-No. 55172

X0 ... X3 LED digital inputs and digital outputs

X4 ... X7 LED digital inputs and digital outputs

or IO-Link

1 LED BUS RUN

LED CfgF

LED LNK1/ACT1

LED LNK2/ACT2

LED POWER UA

LED POWER US / PROFIenergy

LED status (ST)
