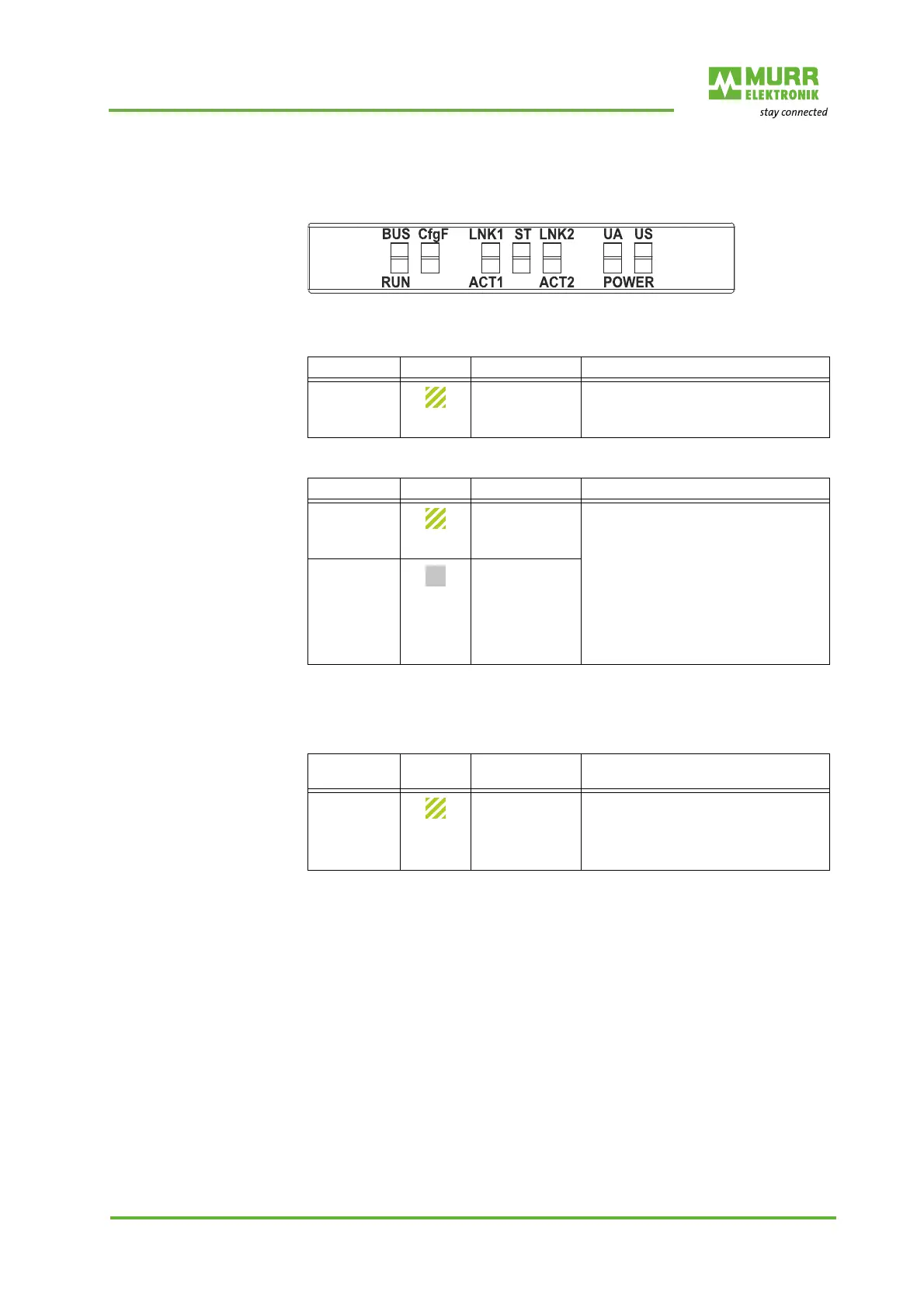

Operation
User manual 55170_hdb_en_13 123 / 145
9.1.2 Extended LED indications
PROFIenergy
Tab. 9-10: Extended LED display, PROFIenergy operation mode I
Tab. 9-11: Extended LED display, PROFIenergy operation mode II
Identification of the
module
Tab. 9-12: Extended LED display, identification of the module
LED Display State Description
POWER US
Green
Flashing
3 s off
1.5 s on
Module in PROFIenergy operation
Mode I
LED Display State Description
POWER US
Green
Flashing
3 s off
0.5 s on
Module in PROFIenergy operation
Mode II
BUS RUN
CfgF
ST
POWER UA
LNK1/ACT1
LNK2/ACT2
Off
LED Indica-
tion
State Description
BUS RUN
CfgF
ST
POWER UA
POWER US
Green
Flashing
1 Hz
Identification of the module
