Installation
User manual 55170_hdb_en_13 43 / 145

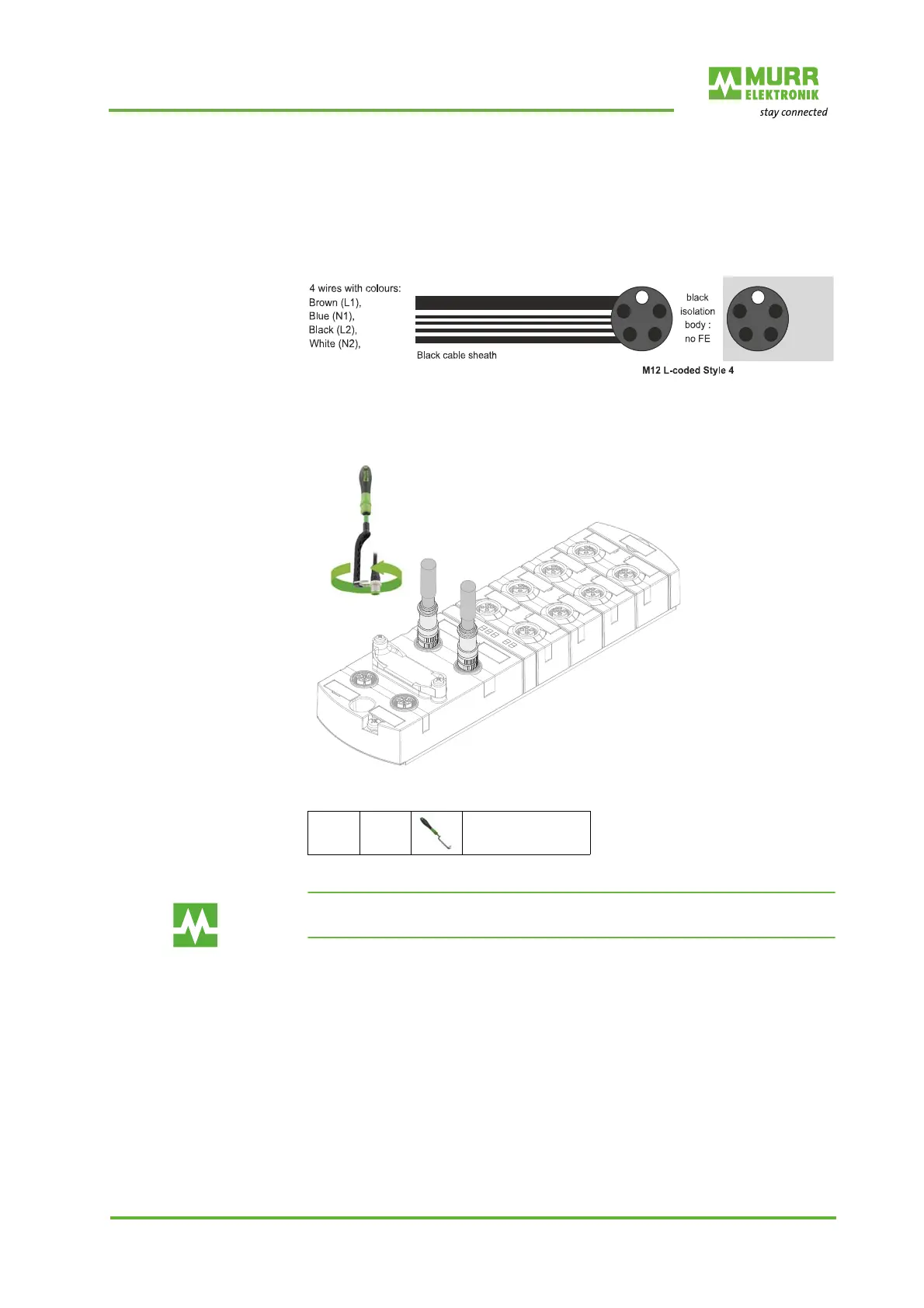

6.1.3 Power supply connection
According to the "PROFINET Cabling and Interconnection Technologys"
guideline version 4.00 May 2017, for a M12 L-coded Style 4 (4 pin without FE),
a cable with black outer sheath and 4 strands with the following colors should
be taken:
A fifth strand, which is not placed in the module, can increase the interference
on the 24V conductor in the event of EMC interference due to capacitive cou-
pling.
Connect M12 male con-
nector
to
POWER IN
and M12 female con-
nector
to
POWER OUT
Fig. 6-3: Example of M12 connection (POWER)
You will find a wide range of connecting wires in the catalog or in the online
shop of Murrelektronik GmbH at: http://shop.murrelektronik.com
M12 0,6 Nm
Art.-No.
7000-99102-0000000
