User manual 55170_hdb_en_13 25 / 145

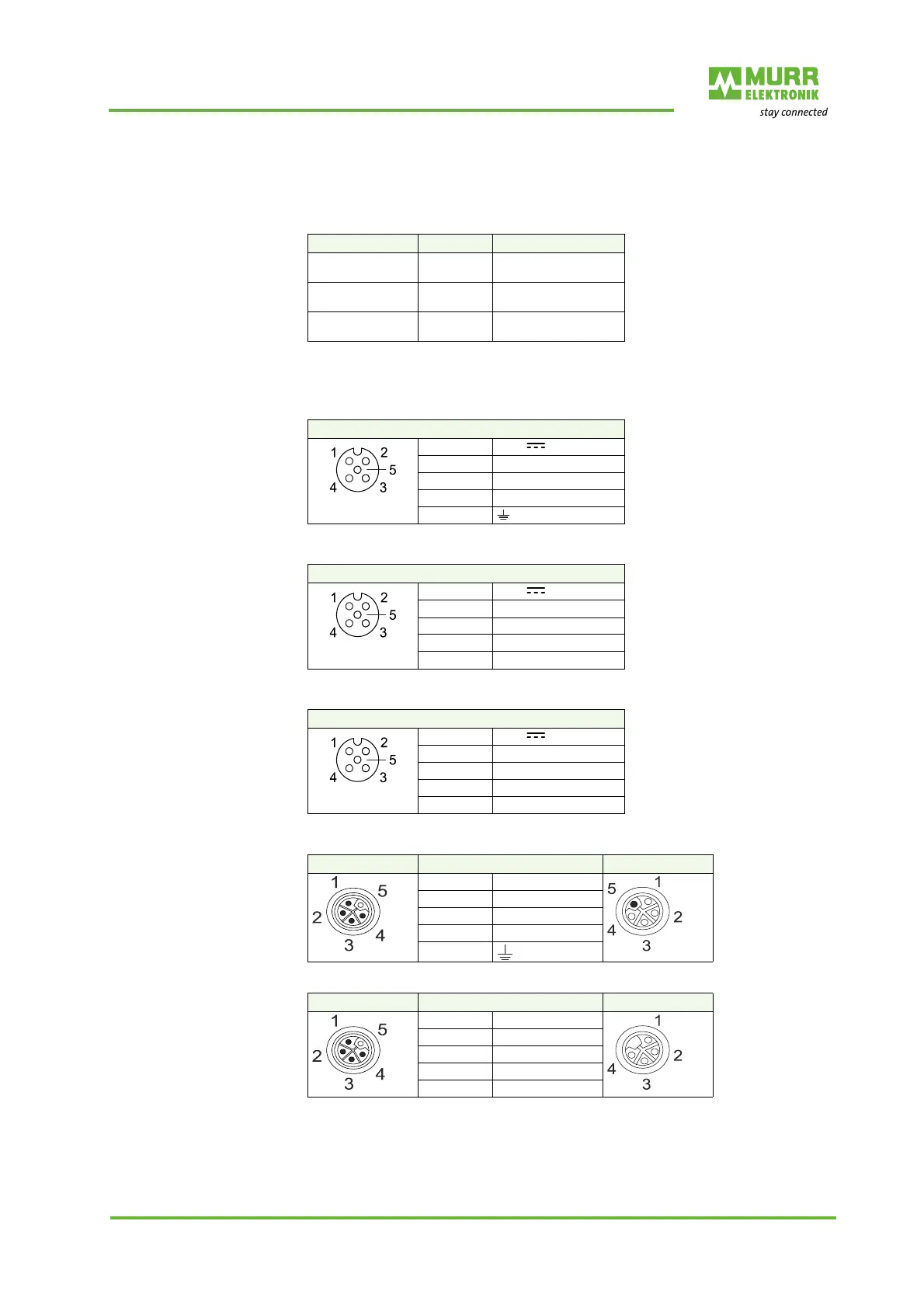

3.6.3 Connections
Overview
3.6.3.1 Pin assignment
Digital inputs and out-
puts (DIO)
M12 ports
A-coded
IO link class B
M12 ports
A-coded
Art.-No. 55151, 55171
IO-Link class B
M12 ports
A-coded
Art.-No. 55152, 55172
POWER M12
55170
55171
55172
Power M12
55150
55151
55152
Art.-No. DIO IO-Link Class B
55150
55170
X0 ... X7 -
55151
55171
X0 ... X7 X6, X7
55152
55172
X0 ... X7 X4 ... X7
X0 ... X7
Pin 1 24 V
Pin 2 DI/DO
Pin 3 0 V
Pin 4 DI/DO
Pin 5
X6, X7
Pin 1 24 V
Pin 2 DI/DO
Pin 3 0 V
Pin 4 DI/DO/IO-Link
Pin 5 0 V
X4 ... X7
Pin 1 24 V
Pin 2 DI/DO
Pin 3 0 V
Pin 4 DI/DO/IO-Link
Pin 5 0 V
XD1 XD2
Pin 1 24 V US
Pin 2 0 V
Pin 3 0 V
Pin 4 24 V UA
Pin 5
XD1 XD2
Pin 1 24 V US
Pin 2 0 V
Pin 3 0 V
Pin 4 24 V UA
Pin 5 n.c.
