Installation
User manual 55170_hdb_en_13 40 / 145
NOTE
Use only a power supply unit that allows max. 60 V DC or 25 V AC in case of
error. The power supply must comply with SELV or PELV.
6.1.1 Sensors and actuators
NOTICE
Material damage caused by male connectors and female connectors that
have not been sealed!
The degree of protection IP67 is only guaranteed if all connections are sealed
with connectors, screw plugs or sealing caps.
Seal unused male connectors and female connectors.
Connecting the
M12 ports

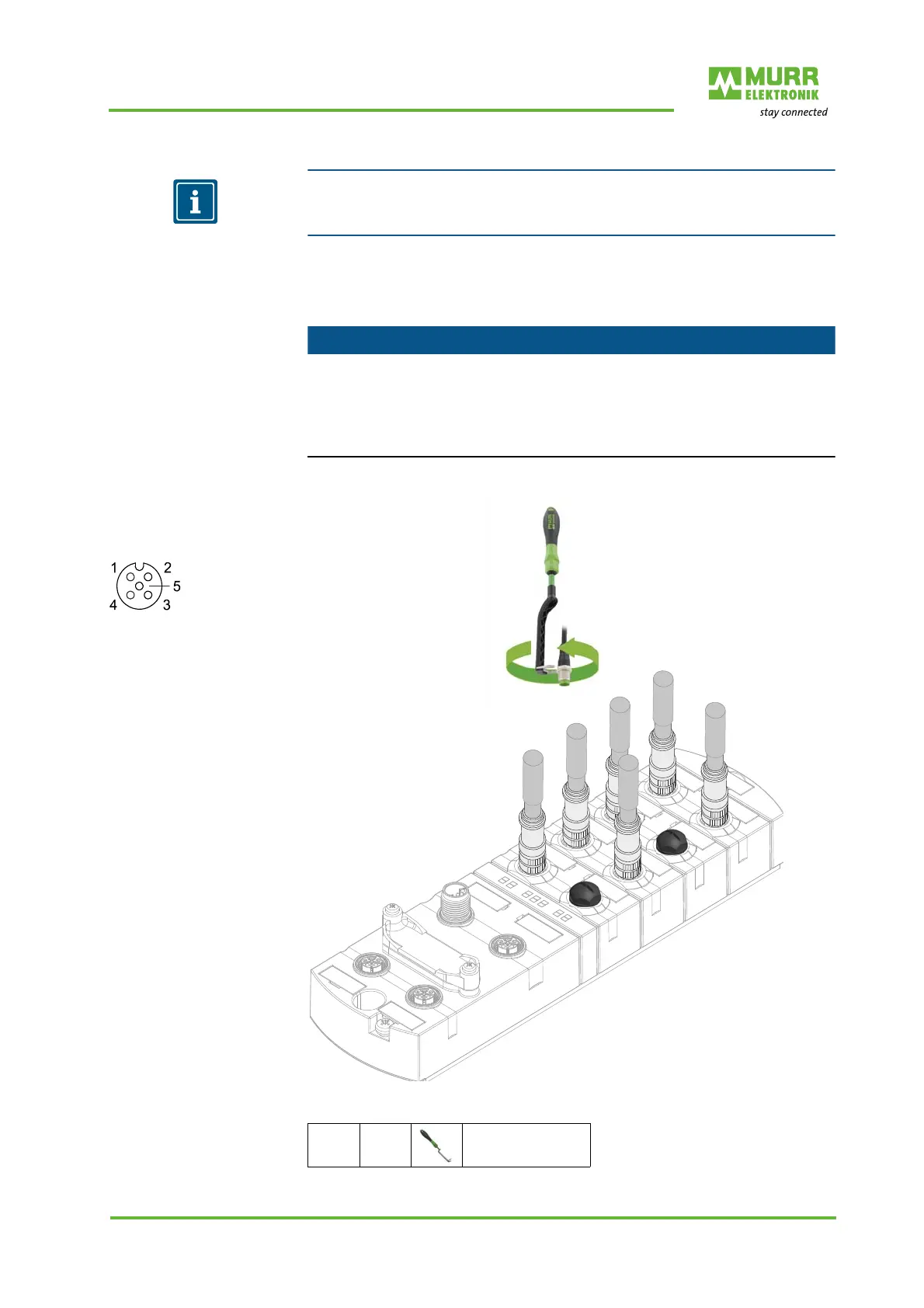

Fig. 6-1: Example of M12 connection inputs and outputs
M12 0,6 Nm
Art.-No.
7000-99102-0000000
