Description
User manual 55170_hdb_en_13 22 / 145
3.6 Module
3.6.1 Module structure

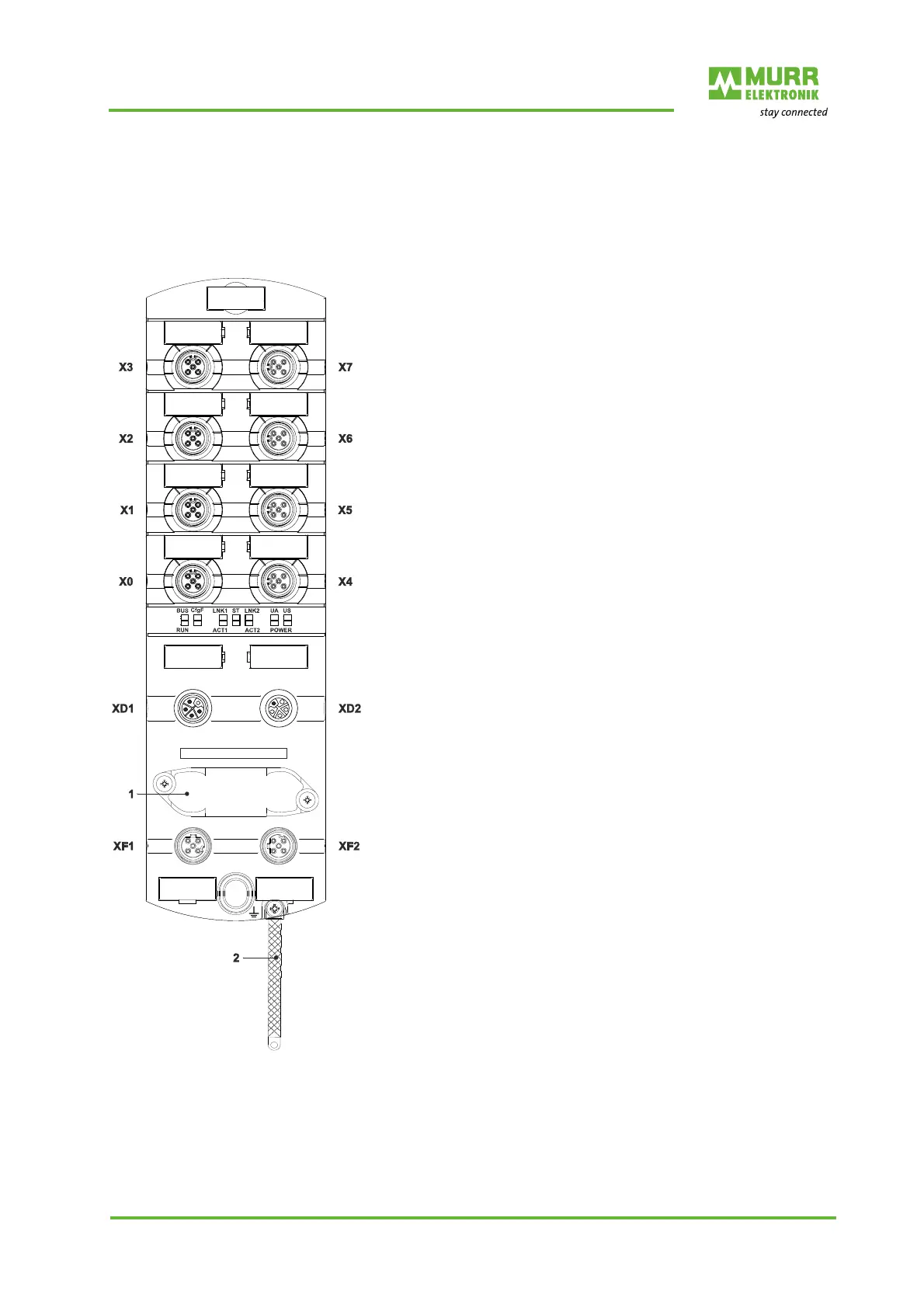

Fig. 3-8: Modul structure
Art.-No. 55150
Art.-No. 55170
X0 ... X7 Digital inputs and digital outputs, M12
Art.-No. 55151
Art.-No. 55171
X0 ... X5 Digital inputs and digital outputs, M12
X6, X7 Digital inputs and digital outputs
or IO-Link, M12
Art.-No. 55152
Art.-No. 55172
X0 ... X3 Digital inputs and digital outputs, M12
X4 ... X7 Digital inputs and digital outputs
or IO-Link, M12
XD1 POWER IN, M12
XD2 POWER OUT, M12
XF1 Ethernet Port 1, M12
XF2 Ethernet Port 2, M12
1 DIP switch
2 grounding strap for protected earth
