Technical Data

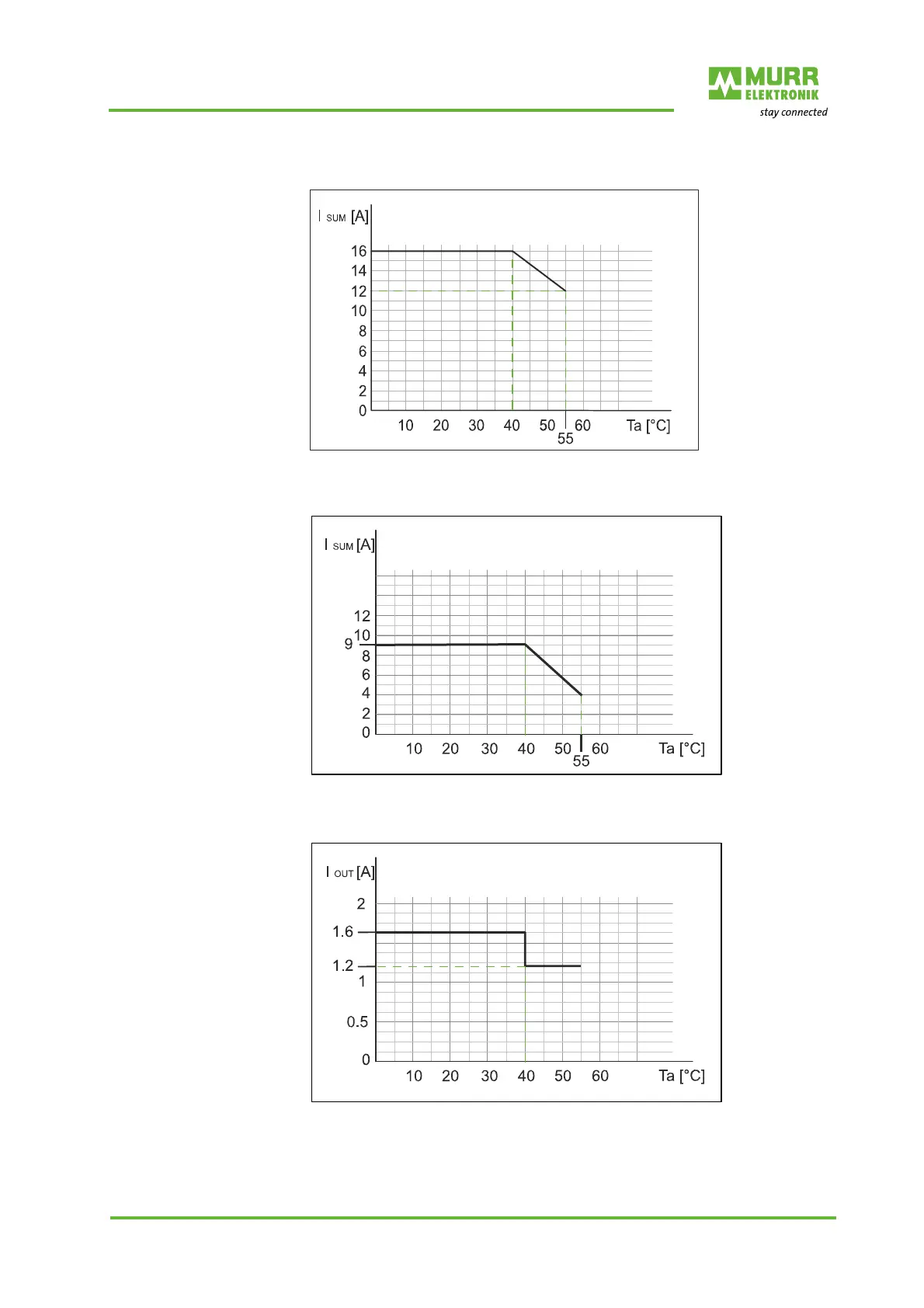

User manual 55170_hdb_en_13 29 / 145
Derating total current
actuator /sensor supply
Fig. 4-1: Derating total current actuator / sensor supply
Derating total current
outputs
Fig. 4-2: Derating total current outputs
Derating DO output cur-
rent
Fig. 4-3: Derating DO output current
