2.8 Blade Installation

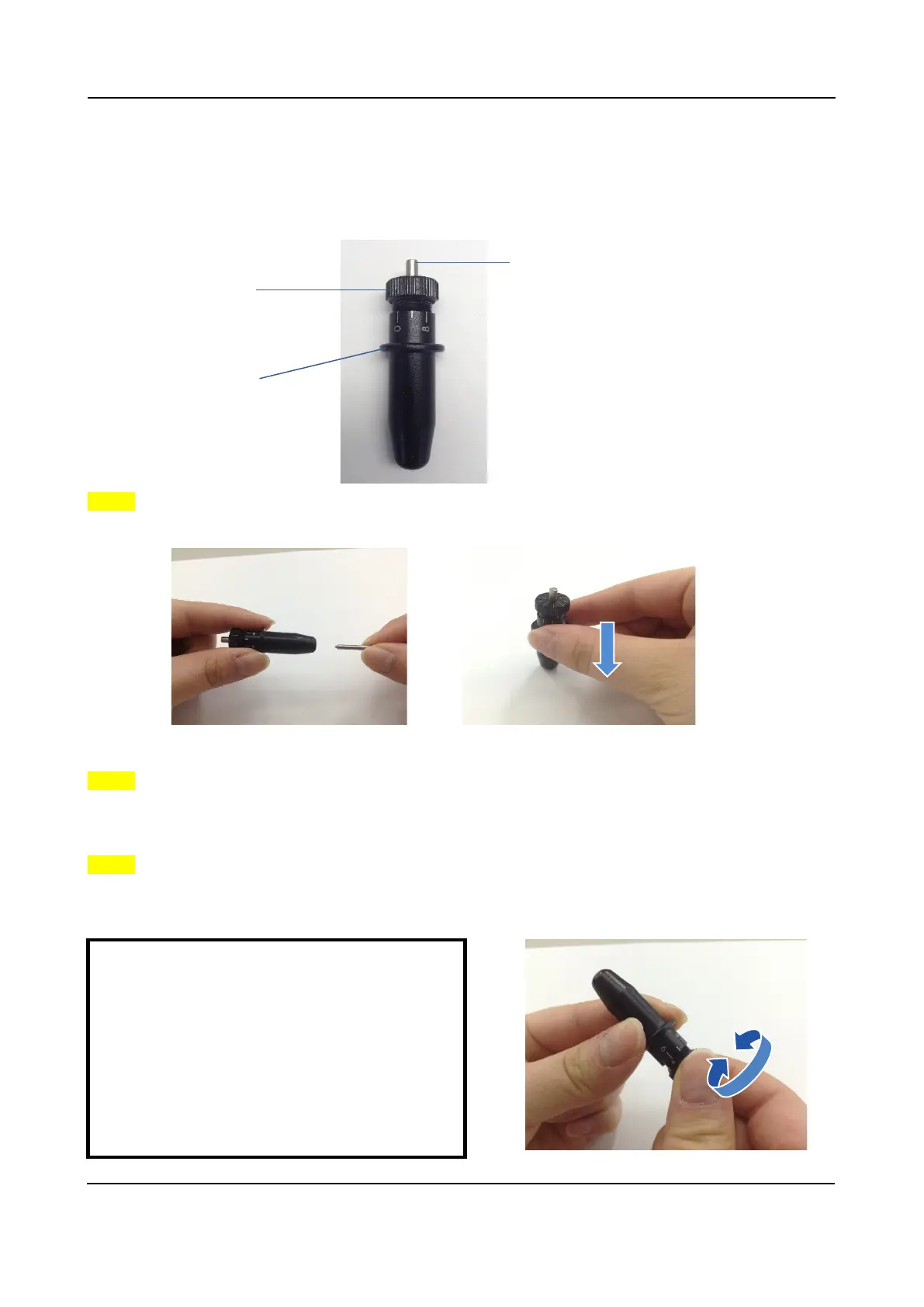

Figure 2-28 is the illustrator of the blade holder. Insert a blade into the bottom of the blade holder and
remove the blade by pushing the pin. Make sure that your fingers are away from the blade tip.
Step 1
Install blade (Figure 2-29).
Step 2
Push the blade to the bottom of the blade holder. (Figure 2-30)
Step 3
Adjust the blade tip to suitable length by screwing.
“Blade tip adjustment screw” clockwise or count-clockwise. (Figure 2-31)
Figure 2-31
Figure 2-30
Tips:
“The proper length” means the blade’s length
is adjusted 0.1 mm more than film’s thickness.
That is, if the thickness of film is 0.5 mm, then
blade’s length is properly adjusted 0.6 mm
and it can completely cut through the film layer
yet avoid penetrating the backing.
Figure 2-28
Outward ring
Adjustment depth knob
Figure 2-29
Pin
